Product Model

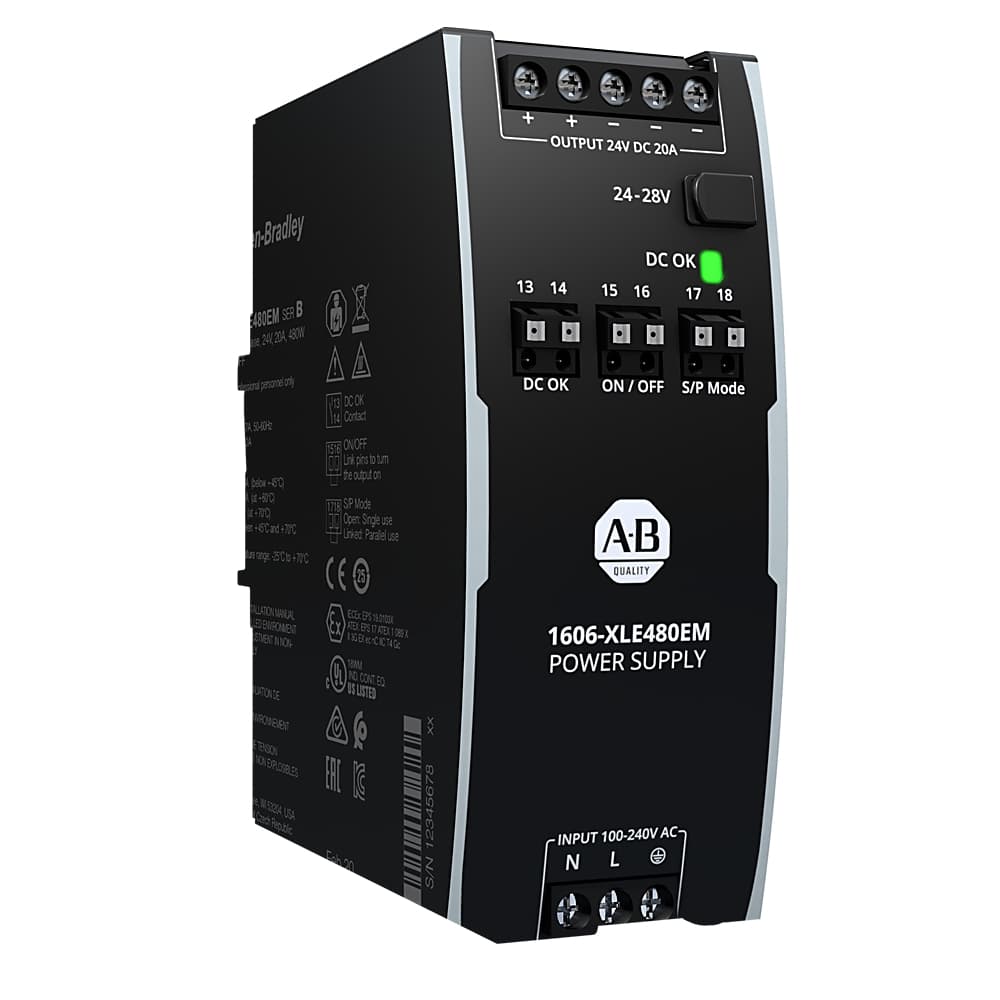

1606-XLE480EM
Selling Points
- 11. High Efficiency and Reliability: The 1606-XLE480EM offers up to 95.6% efficiency, reducing heat output and ensuring reliable operation in various industrial conditions.;
- 22. Remote ON/OFF Feature: This feature allows for easy control and management of the power supply, enhancing system flexibility and convenience.;
- 33. Active Power Factor Correction (PFC): Active PFC minimizes inrush current and ensures a stable power supply, reducing the risk of electrical surges and transients.;
- 44. DC OK Relay Contact: The DC OK relay contact provides a reliable indication of the power supply's status, ensuring that the system can be safely shut down or operated based on the power supply's condition.;
- 55. Compact Design and Easy Installation: With a compact size of 48 mm width, 124 mm height, and 127 mm depth, the 1606-XLE480EM is easy to install and mount on DIN rails, making it ideal for space-constrained industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Stock Status | NON_STOCKED | Dimension Length | 14.986 |
Dimension Width | 14.224 | Lead Time | 5 |
Dimension Height | 6.35 | Quick Turnaround | false |
Preferred Availability | false | Repairable | NOT_REPAIRABLE |
Weight | 0.896 | Lifetime, min | 94 kh (+40 °C) |
Operating temperature | -25 °C | Ripple and noise, max | 50 mV |
Wall mounting possible | Yes | MTBF | 590 kh (+40 °C, SN29500) |
Type of electric connection | Screw connection | Degree of protection (IP) | IP20 |
Width | 48 mm | Direct mounting possible | No |
Depth | 127 mm | Height | 124 mm |
Stabilized | Yes | Rail mounting possible | Yes |
Output voltage stabilized | Yes | Input inrush current | 10 A/4.5 A |
Efficiency | 95.6 % typical | Derating | 12 W/°C |
Power losses | 22.1 W typical | External input fuse, min | B-10 A or C-10 A |
Output current range | 20 to 17.1 A | Power factor | 0.98 typical |
Input inrush current limiter | Active | DC OK relay contact | Yes |
Power reserves | 20 % | Rated supply voltage at DC | 110 V |
Rated supply voltage at AC 60 Hz | 100 V | Rated supply voltage at AC 50 Hz | 100 V |
1st secondary output voltage | 24 V | Voltage type of supply voltage | AC/DC |
Power output | 480 W | Nominal value output current 1 | 20 A |
Max. output current 1 | 20 A | Secondary voltage adjustable | Yes |
Nominal value output voltage 1 | 24 V |
Specifications may be subject to change without notice
