Product Model

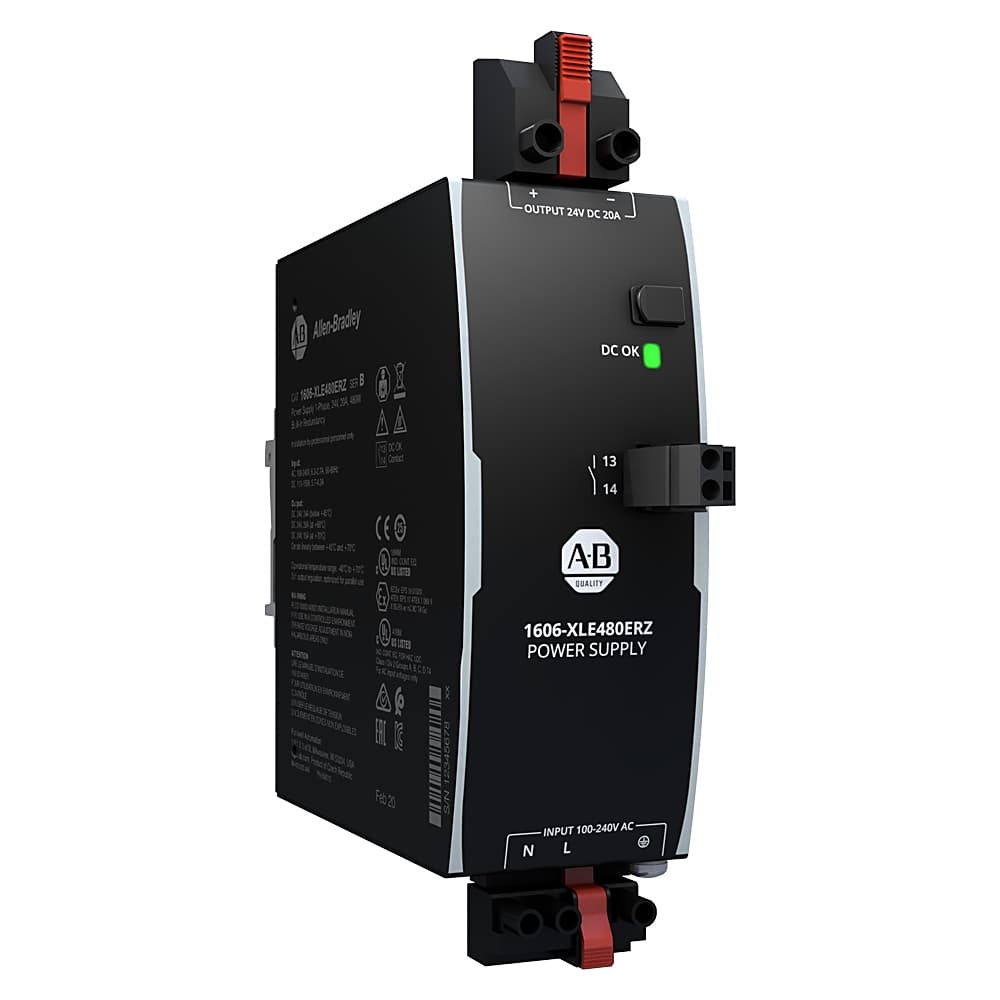

1606-XLE480ERZ

Selling Points
- 11. Reliable Redundancy: The 1606-XLE480ERZ offers dual power supply redundancy, ensuring continuous operation even in case of one unit failure. This feature is crucial for mission-critical applications where downtime is not acceptable.;
- 22. Efficient Power Management: Equipped with an active inrush current limiter, this power supply minimizes the surge current during startup, reducing stress on the system and prolonging its lifespan.;
- 33. Hot-Swappable Design: The hot-swappable design allows for effortless replacement of the power supply without disrupting the system, making maintenance and upgrades seamless.;
- 44. High Efficiency: With a typical efficiency of 95.2%, the 1606-XLE480ERZ maximizes power output while minimizing energy loss, contributing to cost savings and reduced environmental impact.;
- 55. Robust Build Quality: Constructed with high-quality components and designed to meet IP20 standards, this power supply ensures reliable operation in a variety of industrial environments. Its robust build also supports a long lifespan with minimal maintenance requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Stock Status | STOCKED | Dimension Length | 15.24 |
Dimension Width | 13.97 | Lead Time | 5 |
Dimension Height | 9.144 | Quick Turnaround | false |
Preferred Availability | false | Repairable | NOT_REPAIRABLE |
Weight | 0.744 | Lifetime, min | 90 kh (+40 °C) |
Operating temperature | -40 °C | Ripple and noise, max | 50 mV |
Wall mounting possible | Yes | MTBF | 543 kh (+40 °C, SN29500) |
Type of electric connection | Plug-in connection | Degree of protection (IP) | IP20 |
Width | 48 mm | Direct mounting possible | No |
Depth | 127 mm | Height | 124 mm |
Adjustment range | Fixed | Stabilized | Yes |
Rail mounting possible | Yes | Output voltage stabilized | Yes |
Input inrush current | 10 A/4.5 A | Efficiency | 95.2 % typical |
Derating | 12 W/°C | Power losses | 24.2 W typical |
External input fuse, min | B-10 A or C-10 A | Power factor | 0.95 typical |
Input inrush current limiter | Active | Hot-swap | Yes |
DC OK relay contact | Yes | Power reserves | 20 % |
Rated supply voltage at DC | 110 V | Rated supply voltage at AC 60 Hz | 100 V |
Rated supply voltage at AC 50 Hz | 100 V | Voltage type of supply voltage | AC/DC |
Power output | 480 W | Nominal value output current 1 | 20 A |
Secondary voltage adjustable | No | Nominal value output voltage 1 | 24 V |
Specifications may be subject to change without notice
