Product Model

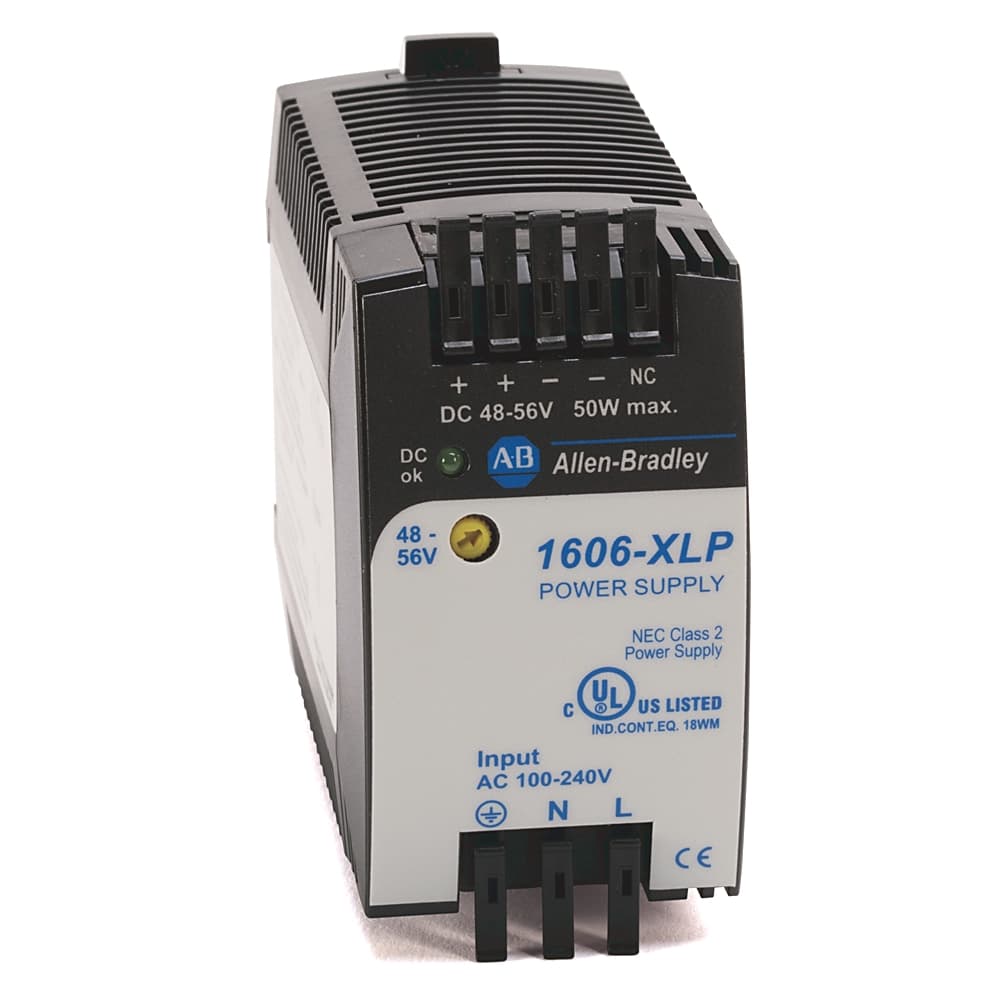

1606-XLP50B
Selling Points
- 11. Compact Design: The 1606-XLP50B measures 75 mm in height, 91 mm in depth, and 45 mm in width, making it an ideal choice for space-constrained industrial environments.;
- 22. High Efficiency: With a typical efficiency of 90%, this power supply minimizes energy loss and maximizes power output, reducing operational costs.;
- 33. Robust Protection: The device is designed to withstand shock up to 30 G and vibration up to 2 g, ensuring reliable operation in harsh industrial conditions.;
- 44. Adjustable Secondary Voltage: The secondary voltage is adjustable, allowing for customization to meet specific application requirements. It operates within a range of 12 V.;
- 55. Stabilized Output Voltage: The output voltage is stabilized, ensuring consistent performance and minimizing the impact of input voltage fluctuations. The maximum ripple and noise are limited to 50 mV.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Stock Status | STOCKED | Dimension Length | 15.392 |
Dimension Width | 14.3 | Lead Time | 5 |
Dimension Height | 6.299 | Quick Turnaround | false |
Preferred Availability | true | Repairable | NOT_REPAIRABLE |
Weight | 0.336 | Relative humidity | 5 to 95 % |
Storage temperature | -40 °C | Operating temperature | -10 °C |
Ripple and noise, max | 50 mV | Stabilized | Yes |
Rail mounting possible | Yes | Output voltage stabilized | Yes |
Special feature | - | Rated input current | <1.0A @ 100V AC |
Special family function | No power boost | Input voltage | 100â¦240V AC |
Hold-up time | >170 ms @ 230V AC | Sub group | Compact family |
Phases | 1-phase | Rated output current | 4.2A @ 12V |
Operational range | 85...264V AC | Adjustment range | 12 V |
Efficiency, typ | 90 % | Rated supply voltage at DC | 85 V |
Voltage type of supply voltage | AC/DC | Power output | 50 W |
Secondary voltage adjustable | Yes | Vibration | 2 g |
Degree of protection (NEMA) | Other | Wall mounting possible | Yes |
MTBF | 600000 hr @ 40 °C, SN 29500 | Special functions | No special function |
Shock | 30 G, 6 ms 20G, 11 ms | Type of electric connection | Spring ClA connection |
Degree of protection (IP) | IP20 | Width | 45 mm |
Direct mounting possible | No | Depth | 91 mm |
Height | 75 mm | Product Family | Power Supply XLP |
Specifications may be subject to change without notice
