Product Model

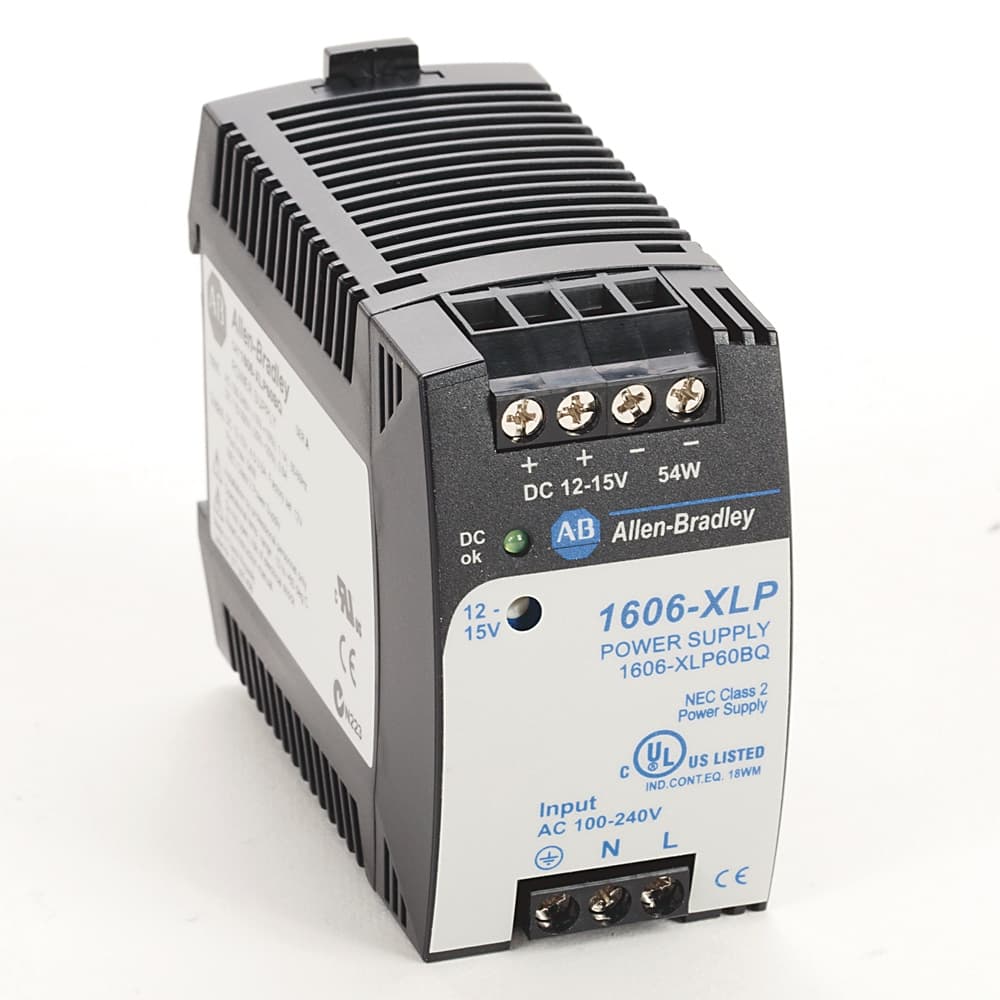

1606-XLP60BQ
Selling Points
- 11. Compact Design: The Allen-Bradley 1606-XLP60BQ is designed to be compact, making it perfect for space-saving applications. Its dimensions are 75 mm in height, 91 mm in depth, and 45 mm in width, allowing for easy integration into any industrial setup.;
- 22. Wide Voltage Range: This power supply accepts a wide range of input voltages, from 100-240V AC and 110-300V DC, ensuring it can be used in various environments and applications.;
- 33. Efficient Performance: With an efficiency of 87.2%, the 1606-XLP60BQ is designed to reduce energy consumption and costs. This makes it an excellent choice for industries looking to optimize their power usage.;
- 44. Stable Output Voltage: The power supply features an output voltage stabilized to 12-15VDC, ensuring a stable and reliable power supply for your equipment. The ripple and noise are minimized to 50 mV, providing a clean output.;
- 55. Durable Construction: The 1606-XLP60BQ is built with durability in mind. It has a degree of protection (IP) of IP20 and can withstand shock and vibration, making it suitable for harsh industrial environments. The power supply also has a Mean Time Between Failures (MTBF) of 1,690,000 hours at 40°C, indicating its reliability and long lifespan.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | MM | Weight Unit | G |
Stock Status | STOCKED | Dimension Length | 75.0 |
Dimension Width | 91.0 | Lead Time | 5 |
Dimension Height | 45.0 | Quick Turnaround | false |
Preferred Availability | false | Repairable | NOT_REPAIRABLE |
Weight | 250.0 | Relative humidity | 5 to 95 % |
Storage temperature | -40 °C | Operating temperature | -10 °C |
Ripple and noise, max | 50 mV | Stabilized | True |
Rail mounting possible | True | Output voltage stabilized | True |
Special feature | - | Rated input current | <0.91A @ 110V AC |
Special family function | No power boost | Input voltage | 100â¦240V AC |
Hold-up time | >25 ms @ 120V AC | Sub group | Compact family |
Phases | 1-phase | Rated output current | 4.5A @ 12V |
Operational range | 85...264V AC | Adjustment range | 12 V |
Efficiency, typ | 87.2 % | Voltage type of supply voltage | AC |
Power output | 54 W | Secondary voltage adjustable | True |
Vibration | 2 g | Degree of protection (NEMA) | Other |
Wall mounting possible | True | MTBF | 1690000 hr @ 40 °C, SN 29500 |
Special functions | No special function | Shock | 30 G, 6 ms 20G, 11 ms |
Type of electric connection | Screw connection | Degree of protection (IP) | IP20 |
Width | 45 mm | Direct mounting possible | False |
Depth | 91 mm | Height | 75 mm |
Input Voltage Range | 100-240V AC/110-300V DC | Input Circuit Protection | 10 A Slow Blow Fuse or?Cat. No. 1489-A1C100/15A |
Efficiency | 0.872 None |
Specifications may be subject to change without notice
