Product Model

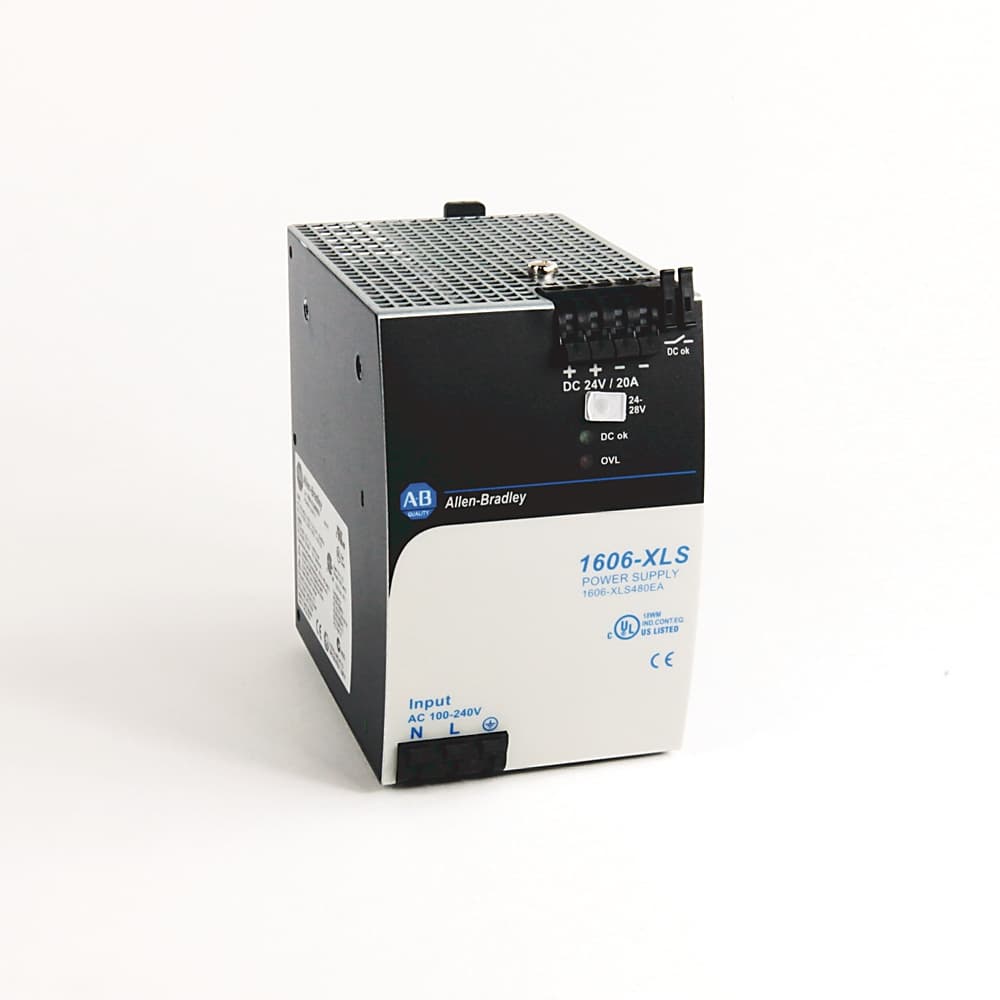

1606-XLS480EA
Selling Points
- 11. High Power Output: The 1606-XLS480EA provides a robust 480W output, ensuring reliable power supply for demanding industrial applications.;
- 22. Adjustable Secondary Voltage: The secondary voltage is adjustable, allowing for customization to meet specific application requirements.;
- 33. Active PFC (Power Factor Correction): The active PFC feature ensures efficient energy usage and minimizes harmonic distortion, reducing overall power consumption.;
- 44. Class 1 Div. 2 Certification: This certification ensures the power supply meets safety standards for hazardous locations, making it suitable for use in areas where flammable gases or vapors may be present.;
- 55. Wide Input Voltage Range: The power supply operates within a wide input voltage range of 100-240V AC and 110-300V DC, providing flexibility in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Stock Status | STOCKED | Dimension Length | 18.212 |
Dimension Width | 14.3 | Lead Time | 5 |
Dimension Height | 15.392 | Quick Turnaround | false |
Preferred Availability | false | Repairable | NOT_REPAIRABLE |
Weight | 1.343 | Non-operating temperature range | -25...+70 °C, >60 °C with derating |
Lifetime, min | 71 kh (+40 °C) | Operating temperature | -25 °C |
Ripple and noise, max | 100 mV | Degree of protection (NEMA) | Other |
Wall mounting possible | Yes | MTBF | 469 kh (40 °C, SN29500) |
Special functions | Atex | Type of electric connection | Spring clA connection |
Degree of protection (IP) | IP20 | Width | 82 mm |
Direct mounting possible | No | Depth | 127 mm |
Height | 124 mm | Stabilized | Yes |
Rail mounting possible | Yes | Output voltage stabilized | Yes |
Special feature | ABS/GL/RINA (marine) | Rated input current | 4.6A @ 100V AC |
Input voltage | 100...240V @ AC, 47...63 Hz | Input inrush current | 9 A/7 A |
Hold-up time | 31 to 51 ms | Sub group | Performance family |
Power losses | 31.4 W typical | External input fuse, min | B-10 A or C-10 A |
Rated output current | 20A @ 24V DC | Reserve power (typ. 4 s) | 30A @ 24V DC |
Operational range | 88...188V DC | Power factor | 0.90 typical |
Output voltage | 24...28V DC | Input inrush current limiter | Active |
DC OK relay contact | Yes | Derating | 12 w/°c |
Rated supply voltage at DC | 110 V | Voltage type of supply voltage | AC/DC |
Power output | 480 W | Secondary voltage adjustable | Yes |
Nominal value output voltage 1 | 24 V | Output Voltage Range | 24 -28V DC |
Input Voltage Range | 100-240V AC/110-150V DC | Efficiency | 94.5% typical |
Specifications may be subject to change without notice
