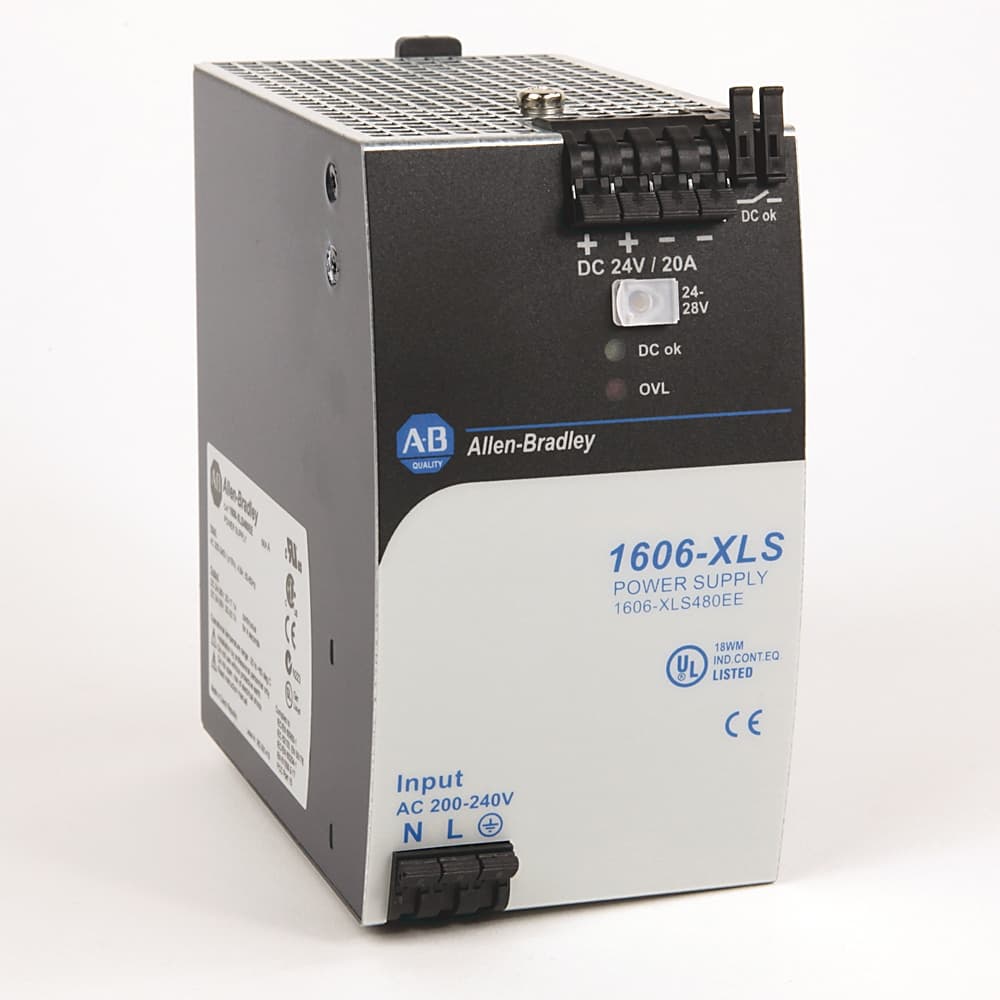

1606-XLS480EE

Selling Points

• 11. High Efficiency and Temperature Rating: The 1606-XLS480EE power supply boasts an efficiency of 94.5% typical, ensuring minimal energy loss and high reliability. It operates within a wide temperature range, from -25°C to +70°C, with derating above 60°C.;
• 22. Adjustable Output Voltage: This power supply offers adjustable output voltage, ranging from 24 to 28V DC, allowing for precise control over the output.;
• 33. Active Power Factor Correction (PFC): Equipped with active PFC, the 1606-XLS480EE ensures a power factor of 0.90 typical, reducing harmonic distortion and improving overall system efficiency.;
• 44. Low Inrush Current: The power supply features an active input inrush current limiter, minimizing the initial surge of current when the supply is turned on. This makes installation and usage simpler.;
• 55. Robust Design and Durability: Designed with a robust construction, the 1606-XLS480EE can support loads with a higher short-term power requirement without damage or shutdown. It also includes a DC-OK relay and overload LED for easy diagnostics.
