Product Model

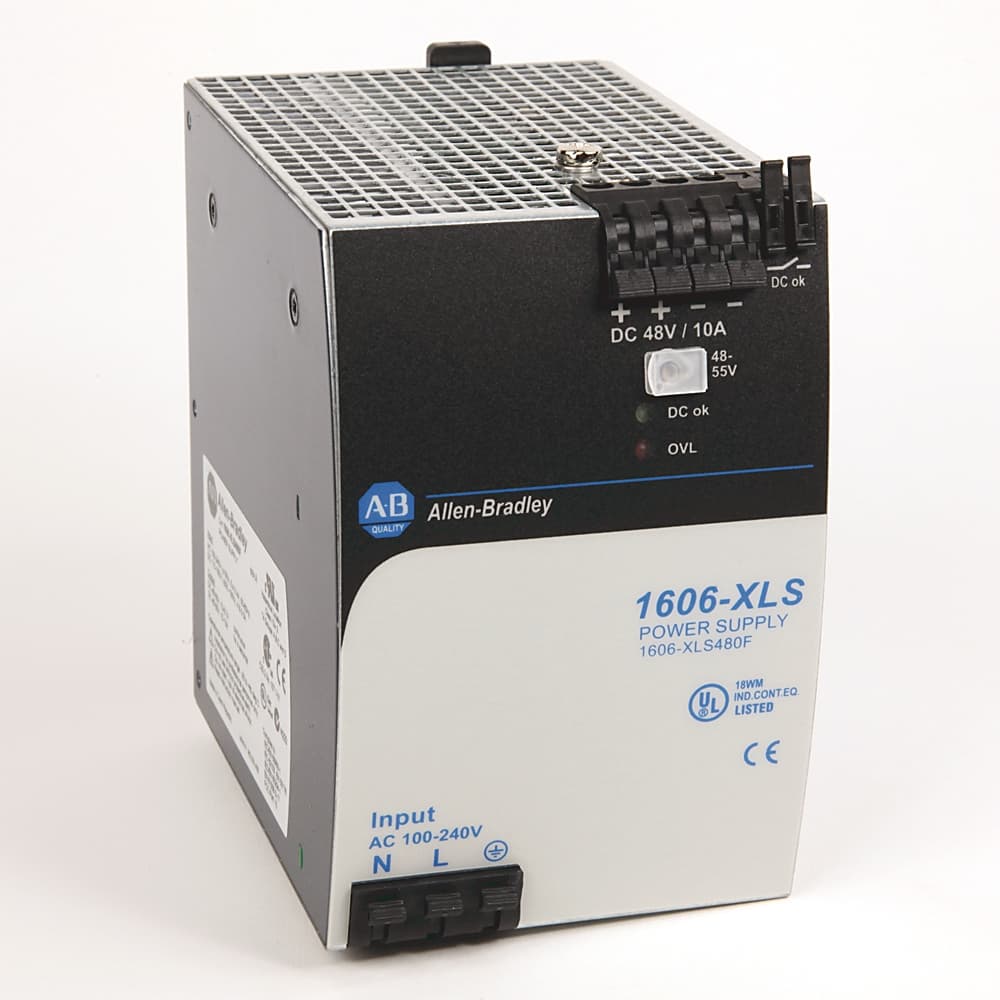

1606-XLS480F
Selling Points
- 11. Compact Design and Efficiency: The Allen Bradley 1606-XLS480F boasts a compact design while maintaining high efficiency, making it ideal for space-constrained industrial environments.;
- 22. Wide Voltage Range: This power supply supports a wide range of AC and DC voltages, ensuring compatibility with various industrial systems and applications.;
- 33. Global Safety Standards: The 1606-XLS480F meets all global safety standards, providing a reliable and safe power solution for your industrial needs.;
- 44. 150% Power Boost: With a 150% power boost capability, this power supply can handle short-term power surges, ensuring continuous operation during peak loads.;
- 55. DIN Rail Mounting: Easy to install with DIN rail mounting, the 1606-XLS480F simplifies your setup process, saving time and effort in your industrial setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Stock Status | STOCKED | Dimension Length | 12.7 |
Dimension Width | 12.4 | Lead Time | 5 |
Dimension Height | 8.2 | Quick Turnaround | false |
Preferred Availability | true | Repairable | NOT_REPAIRABLE |
Weight | 1.2 | Non-operating temperature range | -25...+70 °C, >60 °C with derating |
Lifetime, min | 92 kh (+40 °C) | Operating temperature | -25 °C |
Ripple and noise, max | 100 mV | Degree of protection (NEMA) | Other |
Wall mounting possible | Yes | MTBF | 469 kh (40 °C, SN29500) |
Special functions | No special function | Type of electric connection | Spring clA connection |
Degree of protection (IP) | IP20 | Width | 82 mm |
Direct mounting possible | No | Depth | 127 mm |
Height | 124 mm | Stabilized | Yes |
Rail mounting possible | Yes | Output voltage stabilized | Yes |
Special feature | ABS/GL/RINA (marine) | Rated input current | 4.6A @ 100V AC |
Input voltage | 100...240V @ AC, 47...63 Hz | Input inrush current | 9 A/7 A |
Hold-up time | 32 to 51 ms | Sub group | Performance family |
Power losses | 29.0 W typical | External input fuse, min | B-10 A or C-10 A |
Rated output current | 8.7A @ 55V DC | Reserve power (typ. 4 s) | 30A @ 24V DC |
Operational range | 88...375V DC | Power factor | 0.90 typical |
Output voltage | 48...55V DC | DC OK relay contact | Yes |
Derating | 12 w/°c | Rated supply voltage at DC | 110 V |
Voltage type of supply voltage | AC/DC | Power output | 480 W |
Secondary voltage adjustable | Yes | Nominal value output voltage 1 | 48 V |
Input Voltage Range | 200-240V AC | Input Circuit Protection | 10 A Slow Blow Fuse or?Cat. No. 1489-A1C100 |
Efficiency | 94.3% typical |
Specifications may be subject to change without notice
