Product Model

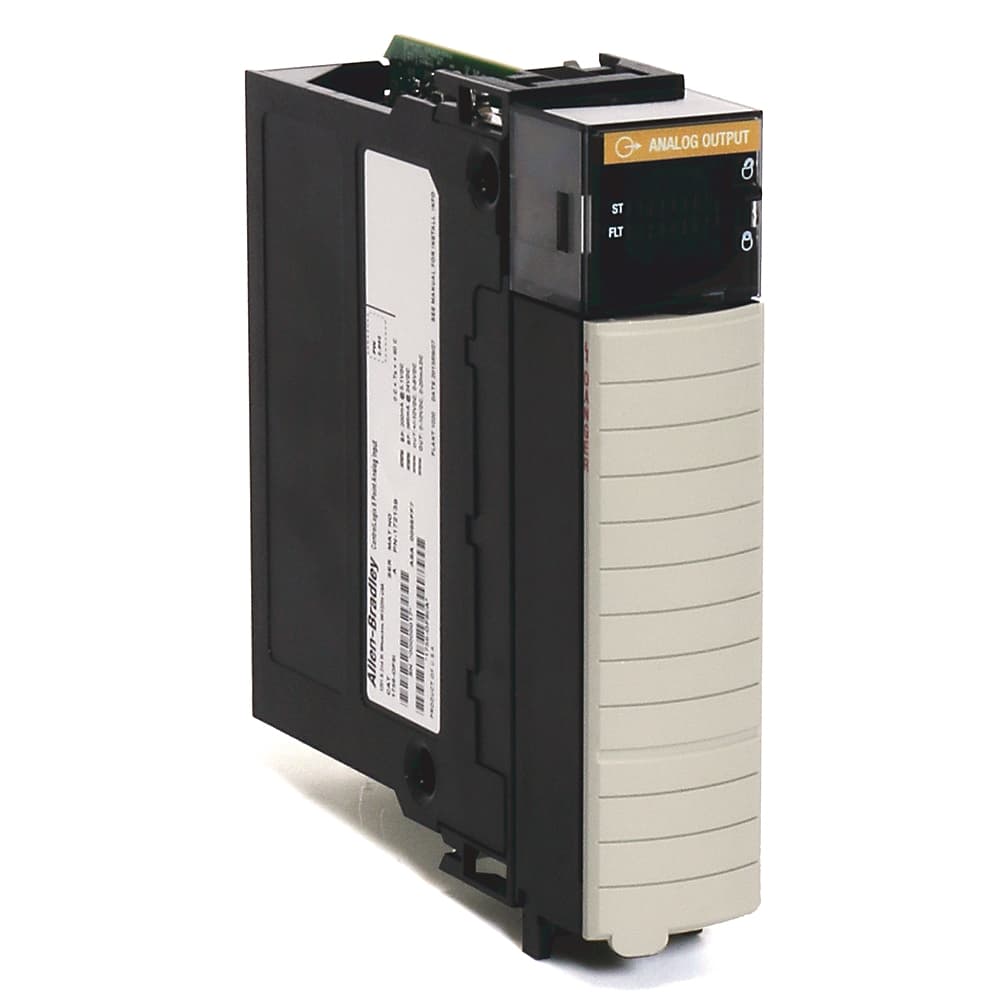

1756-OF8H
Selling Points
- 11. Reliable HART Protocol Support: The 1756-OF8H module supports HART protocol, ensuring reliable and precise communication in industrial settings.;
- 22. 8-Point Analog Output: With 8 points of analog output, this module is versatile and can handle multiple tasks simultaneously, making it ideal for complex industrial applications.;
- 33. Current and Voltage Outputs: The module offers both current and voltage outputs, catering to a wide range of industrial requirements.;
- 44. Compatibility with ControlLogix Systems: Designed for use with ControlLogix systems, the 1756-OF8H seamlessly integrates into existing infrastructure, enhancing system performance and efficiency.;
- 55. High Precision and Reliability: Built with high-quality components, the 1756-OF8H ensures precise and reliable operation, minimizing downtime and maximizing productivity in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Weight | 0.374 | Stock Status | STOCKED |
Dimension Length | 21.793 | Dimension Width | 17.297 |
Lead Time | 5 | Dimension Height | 5.41 |
Quick Turnaround | false | Preferred Availability | false |
Repairable | REPAIRABLE | Enclosure type rating | None (open-style) |
IECEx temperature code | T4 | ATEX temperature code | T4 |
Calibration interval | 12 mo typical | Slot width | 1 |
Shock | Operating: 30 G, Non operating: 50 G | Vibration | 2 G @ 10...500 Hz |
RTB keying | User-defined mechanical | Nonoperating temperature | -40 °C |
Radiated RF immunity | 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz | Operating temperature | 0 °C <Ta <60 °C (32 °F <Ta <140 °F) |
Surge transient immunity | ±2kV line-earth (CM) on shielded ports | Conducted RF immunity | 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz |
Relative humidity | 5...95% noncondensing | EFT/B immunity | ±2kV @ 5kHz on signal ports |
ESD immunity | 6 kV contact discharges, 8 kV air discharges | Emissions | IEC 61000-6-4 |
North American temperature code | T4 | Surrounding air temperature, max | 60 °C |
Suitable for safety functions | No | Overvoltage protection | ±24V DC |
Wire category | 2 - on signal ports | Data format | Integer mode (left justified, 2 s complement) IEEE 32-bit floating point |
Output conversion method | R-Ladder DAC, monotonicity with no missing codes | Module keying | Electronic, software configurable |
Input conversion method | Successive approximation | Wire type | Copper |
Type of electric connection | Screw-/spring clA connection | Analogue outputs configurable | No |
Analogue inputs configurable | Yes | Output signal configurable | No |
Output, voltage | No | Output, current | No |
Input signal, configurable | Yes | Input, thermocouple | No |
Input, resistance thermometer | No | Input, resistor | No |
Input, voltage | Yes | Input, current | Yes |
Number Of Channels | 8 | Isolation | None between channels (Single Ended) |
Specifications may be subject to change without notice
