Product Model

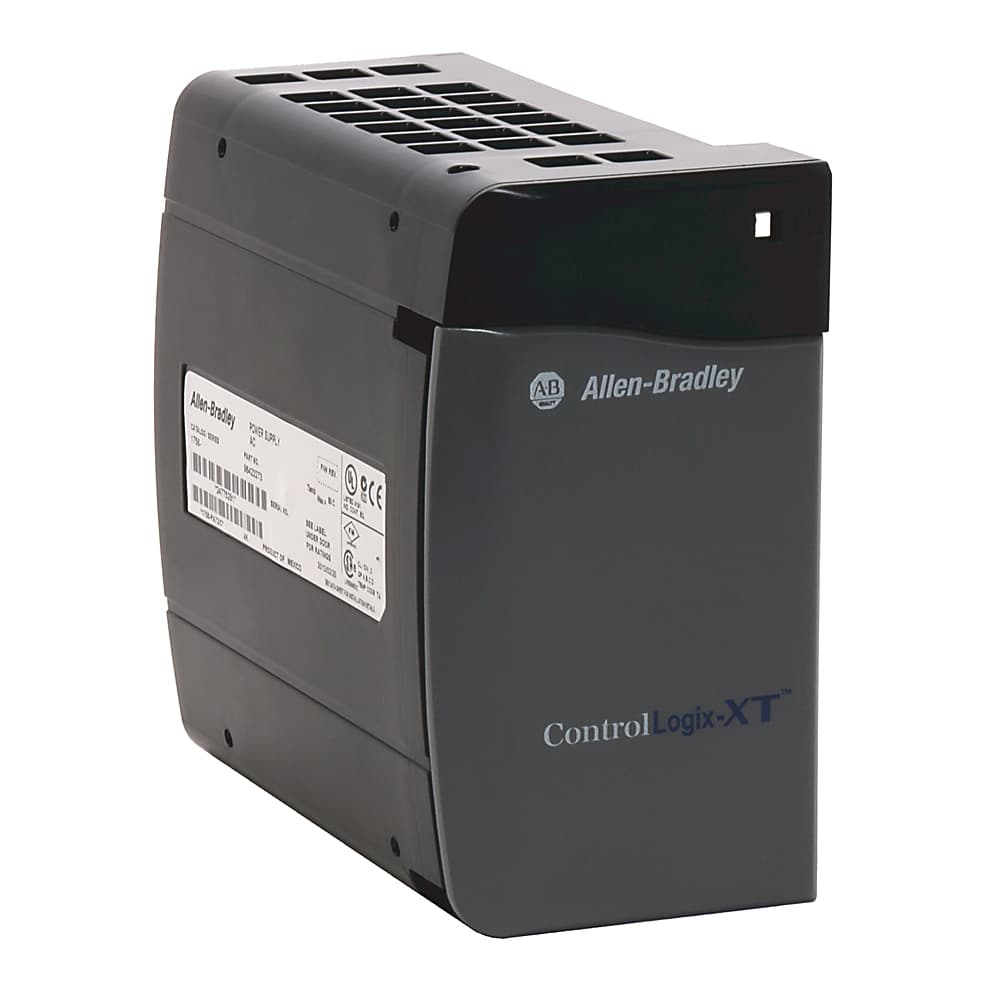

1756-PA30XT
Selling Points
- 11. Compact Design: The 1756-PA30XT features a slim design, making it ideal for space-constrained applications. Its compact size allows for easy integration into various industrial automation systems without compromising performance.;
- 22. Reliable Power Supply: This power supply is engineered to provide reliable DC power to the 1756 ControlLogix-XT system. It ensures consistent performance, even in harsh industrial environments, minimizing downtime and maximizing productivity.;
- 33. Efficient Operation: The 1756-PA30XT is designed for efficiency, reducing energy consumption and heat generation. This results in lower operational costs and extended equipment lifespan.;
- 44. Easy Installation: The power supply is designed for straightforward installation, reducing setup time and complexity. Its compatibility with the 1756 chassis makes it a seamless addition to existing automation systems.;
- 55. High Performance: The 1756-PA30XT delivers high-performance power supply capabilities, supporting multiple voltage outputs (1.2V, 3.3V, 5V, and 24V DC) to meet the diverse needs of industrial automation applications. Its robust design ensures reliable operation under various load conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Stock Status | NON_STOCKED | Dimension Length | 14.5 |
Dimension Width | 7.8 | Lead Time | 20 |
Dimension Height | 14.0 | Quick Turnaround | false |
Preferred Availability | false | Repairable | REPAIRABLE |
Voltage variation | IEC 61000-4-11: 30% dips for 1 period at 0° and 180° on AC supply ports, 60% dips for 5 and 50 periods on AC supply ports, ±10% fluctuations for 15 min on AC supply ports, >95% interruptions for 250 periods on AC supply ports | Operating temperature | -25 °C < Ta < +70 °C (-13 °F < Ta < +158 °F) |
Shock | Operating: 30 G | Relative humidity | 5...95% noncondensing |
Vibration | 2 G @ 10...500 Hz | Conductor screw torque | 0.565 nm |
Rockwell tire and rubber rated | No | ISAGX | No |
Weight | 0.771 | Enclosure type rating | None (open-style) |
Depth | 145 mm | Height | 140 mm |
Width | 78 mm | Input frequency | 47 Hz |
Redundancy capable | No | Input voltage at AC 60 Hz | 85 V |
Input voltage at AC 50 Hz | 85 V | Suitable for safety functions | No |
Wire size | 2.5 mm2 (14 AWG) solid or stranded copper wire rated at 90 °C (194 °F), or greater, 1.2 mm (3/64 in.) insulation max | Wire category | 1 - on power ports |
Power output, max | 30 W @ -25...+70 °C (-13...+158 °F) | Current capacity | 6A @ 5.1V DC |
Input power, max | 60VA/50 W | Inrush current, max | 20 A |
Input voltage, nom | 120/240V AC | Output voltage at DC | 5.1 V |
Power output | 30 W | Type of voltage (input voltage) | AC |
Redundant Configuration | No | Connection Cables | None required |
Specifications may be subject to change without notice
