Product Model

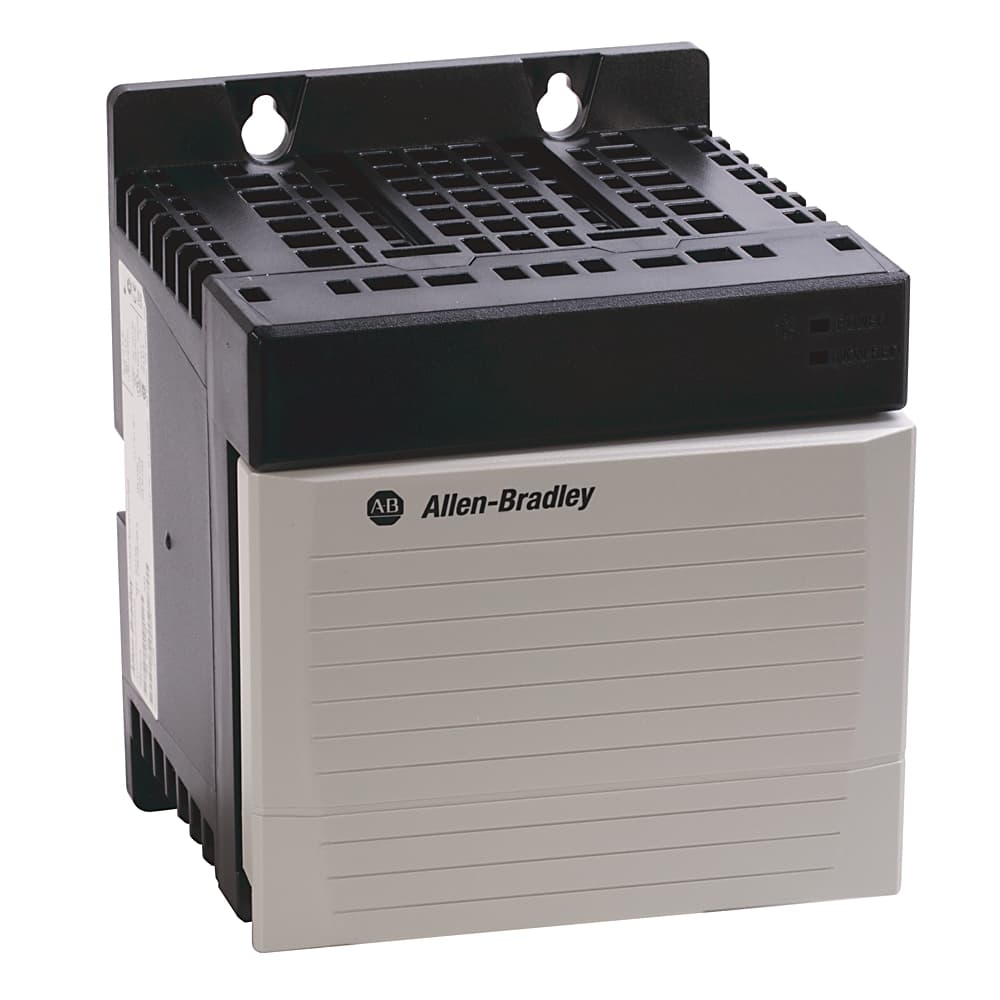

1756-PB75R
Selling Points
- 11. Redundant Configuration: The 1756-PB75R features a redundant configuration, ensuring continuous operation even if one power supply fails. This design provides additional uptime protection for critical applications, minimizing downtime and ensuring system reliability.;
- 22. Wide Input Voltage Range: With an input voltage range of 19-32V DC, the 1756-PB75R can accommodate various power requirements, making it versatile for different system configurations.;
- 33. High Output Power: The power supply delivers a maximum output power of 75W at 0-60°C (32-140°F), ensuring that your ControlLogix system receives the necessary power to operate efficiently.;
- 44. Multiple Output Voltages: The 1756-PB75R provides multiple output voltages, including 5V DC at 13A, 3.3V DC at 4A, 1.2V DC at 1.5A, and 24V DC at 2.8A. This flexibility allows you to power various components within your system.;
- 55. Compact Design: The module is designed to be panel-mounted, with dimensions of 6.9 x 5.7 x 5.4 inches, making it compact and easy to integrate into your existing control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Stock Status | STOCKED | Dimension Length | 25.908 |
Dimension Width | 20.396 | Lead Time | 5 |
Dimension Height | 20.396 | Quick Turnaround | false |
Preferred Availability | true | Repairable | REPAIRABLE |
Voltage variation | IEC 61000-4-29: 10 ms interruption on DC supply ports, 60% dips for 100 ms on DC supply ports, 100% dips for 50 ms on DC supply ports, ±20% fluctuations for 15 min on DC supply ports, 5 s interruptions on DC supply ports | Operating temperature | 0 to 60 °C |
Shock | Operating: 30 G | Relative humidity | 5...95% noncondensing |
Vibration | 2 G @ 10...500 Hz | Conductor screw torque | 0.565 nm |
Rockwell tire and rubber rated | No | ISAGX | No |
Weight | 1.88 | Enclosure type rating | None (open-style) |
Depth | 137 mm | Height | 175 mm |
Width | 145 mm | Pilot duty rating | Annunciator - not rated |
Redundancy capable | No | Type of output voltage | DC |
Suitable for safety functions | No | Wire size | Power: 2.5 mm2 (14 AWG) solid or stranded copper wire rated at 90 °C (194 °F), or greater, 1.2 mm (3/64 in.) insulation max, Annunciator: 0.25â¦2.5 mm2 (22 AWG) solid or stranded copper wire rated at 90 °C (194 °F), or greater, 1.2 mm (3/64 in.) insulat |
Hold-up time | 20 ms | Wire category | 3 - on annunciator ports, 1 - on power ports, 3 - on 1756-CPR2 connections |
Annunciator power | 90V DC for ATEX/IECEx | Power output, max | 75 W @ 0...60 °C (32...140 °F) |
Current capacity | 4A @ 3.3V DC | Input power, max | 110 W |
Inrush current, max | 30 A | Input voltage, nom | 24V DC |
Input voltage at DC | 18 V | Output voltage at DC | 5.1 V |
Power output | 75 W | Type of voltage (input voltage) | DC |
Redundant Configuration | Yes | Output Voltage and Current | 5V DC @ 13A, 3.3V DC @ 4A, 1.2V DC @ 1.5A, 24V DC @ 2.8A |
Connection Cables | 1756-CPR2 |
Specifications may be subject to change without notice
