Product Model

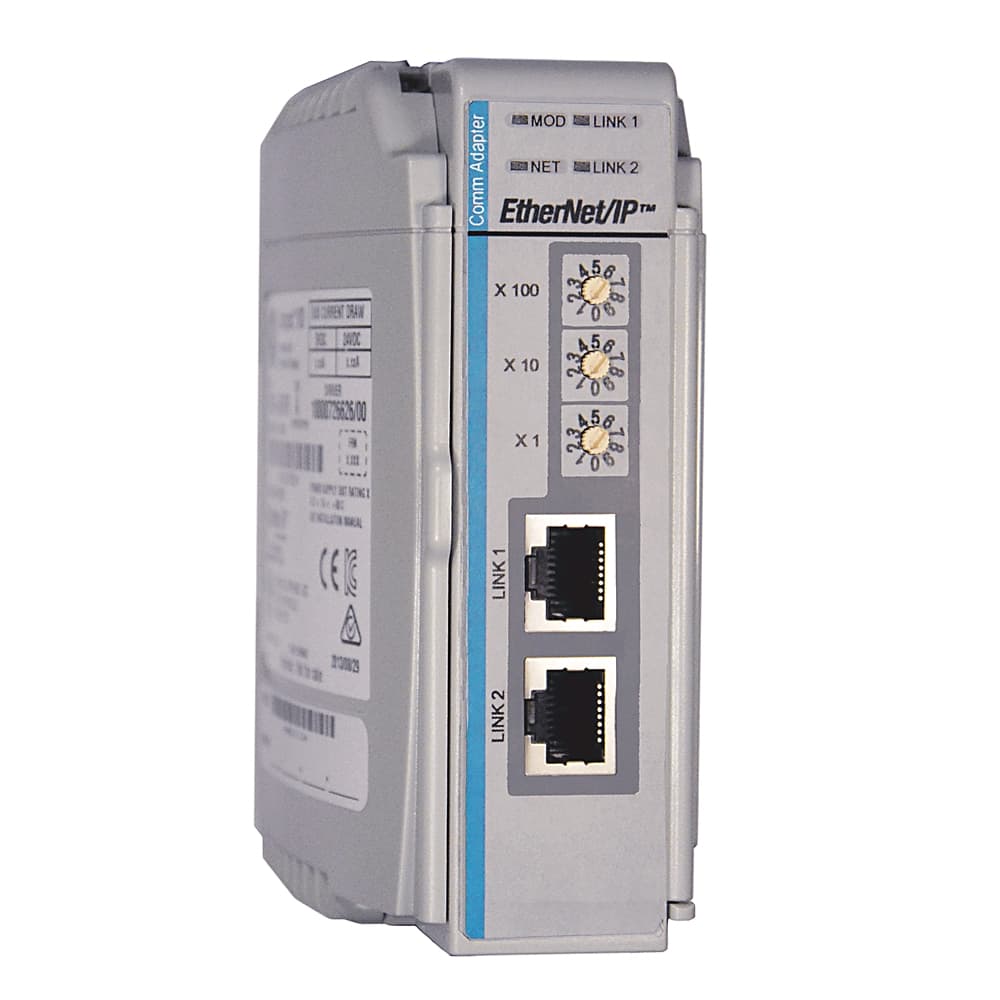

1769-AENTR
Selling Points
- 11. Scalable and Flexible: The 1769-AENTR module is designed to support various Ethernet topologies, including Linear, Star, and Device Level Ring (DLR), making it highly scalable and flexible for different industrial control system configurations.;
- 22. Efficient Communication: With 96 TCP/IP connections and 128 EtherNet/IP connections, this module ensures efficient communication and data transmission, reducing the need for multiple control platforms and simplifying system architecture.;
- 33. Compact Design: The module is compact in size, measuring 118 mm x 50 mm x 87 mm, making it easy to integrate into existing control systems without occupying excessive space.;
- 44. High Performance: The 1769-AENTR operates at a minimum communication port speed of 10 Mbps and a maximum of 100 Mbps, ensuring high-performance data transmission and processing.;
- 55. Reliable Operation: Designed to operate within a temperature range of 0 °C to 60 °C, this module provides reliable operation in various industrial environments, ensuring consistent performance under different conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Weight | 0.304 | Stock Status | STOCKED |
Dimension Length | 13.208 | Dimension Width | 18.39 |
Lead Time | 5 | Dimension Height | 10.693 |
Quick Turnaround | false | Preferred Availability | true |
Repairable | NOT_REPAIRABLE | North American temperature code | T3C |
Radiated RF immunity | 10V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10V/m with 200 Hz 50% Pulse 100% AM at 900 MHz, 10V/m with 200 Hz 50% Pulse 100% AM at 1890 MHz, 10V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz | Operating temperature | 0 to 60 °C |
Nonoperating temperature | -40 to 85 °C | Surge transient immunity | ±2 kV line-earth (CM) on communication ports |
Conducted RF immunity | 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz | Shock | Operating: 15 G |
Relative humidity | 5...95% noncondensing | EFT/B immunity | ±3kV @ 5kHz on communications ports |
ESD immunity | 6 kV contact discharges, 8 kV air discharges | Vibration | 2 G @ 10...500 Hz |
Emissions | CISPR 11 (IEC 61000-6-4): Class A | Surrounding air temperature, max | 60 °C |
Mounting screw torque | 1.16 Nm (10 in-lb) - use M4 or #8 screws | Module location | DIN rail or panel mount |
Weight, approx | 0.28 kg | Depth | 87 mm |
Width | 50 mm | EtherNet/IP communication rate | 10/100 Mbps |
Slot width | 1 | Radio standard UMTS | No |
Radio standard GSM | No | Radio standard GPRS | No |
Supporting protocol for SafetyBUS p | No | Supporting protocol for PROFIsafe | No |
Supporting protocol for PROFINET IO | No | Supporting protocol for PROFINET CBA | No |
Supporting protocol for Foundation Fieldbus | No | Supporting protocol for AS-Interface Safety at Work | No |
Radio standard Wi-Fi 802.11 | No | Radio standard Bluetooth | No |
Supporting protocol for INTERBUS-Safety | No | Supporting protocol for SERCOS | No |
With potential separation | No | Supporting protocol for SUCONET | No |
Supporting protocol for Data-Highway | No | Supporting protocol for Modbus | No |
Supporting protocol for KNX | No | Supporting protocol for INTERBUS | No |
Supporting protocol for CAN | No | Supporting protocol for PROFIBUS | No |
Supporting protocol for ASI | No | Supporting protocol for LON | No |
Isolation voltage | 50V (continuous), basic insulation type, Tested at 710V DC @ 60s | Wire size | Ethernet connections: RJ45 connector according to IEC 60603-7, 2 or 4 pair Category 5e minimum cable according to TIA 568-B.1 or Category 5 cable according to ISO/IEC 24702. |
Wire category | 1 - on communication ports | Ports | 2 Ethernet RJ45 Category 5 |
Current draw | 500mA @ 5.2V DC | Enclosure type rating | None (open-style) |
Logix communication connections | 128 | TCP/IP communication connections | 96 |
Type of data transmission | Other | Supporting protocol for EtherNet/IP | Yes |
Supporting protocol for DeviceNet Safety | No | IO link master | No |
Redundancy | No | Supporting protocol for other bus systems | No |
Supporting protocol for DeviceNet | No | Supporting protocol for TCP/IP | Yes |
With optical interface | No | Suitable for safety functions | No |
Number of HW-interfaces industrial Ethernet | 2 | Isolation | 50V (continuous), basic insulation type |
Interface | 2 Ethernet RJ45 Category 5 | Height | 118 mm |
Specifications may be subject to change without notice
