Product Model

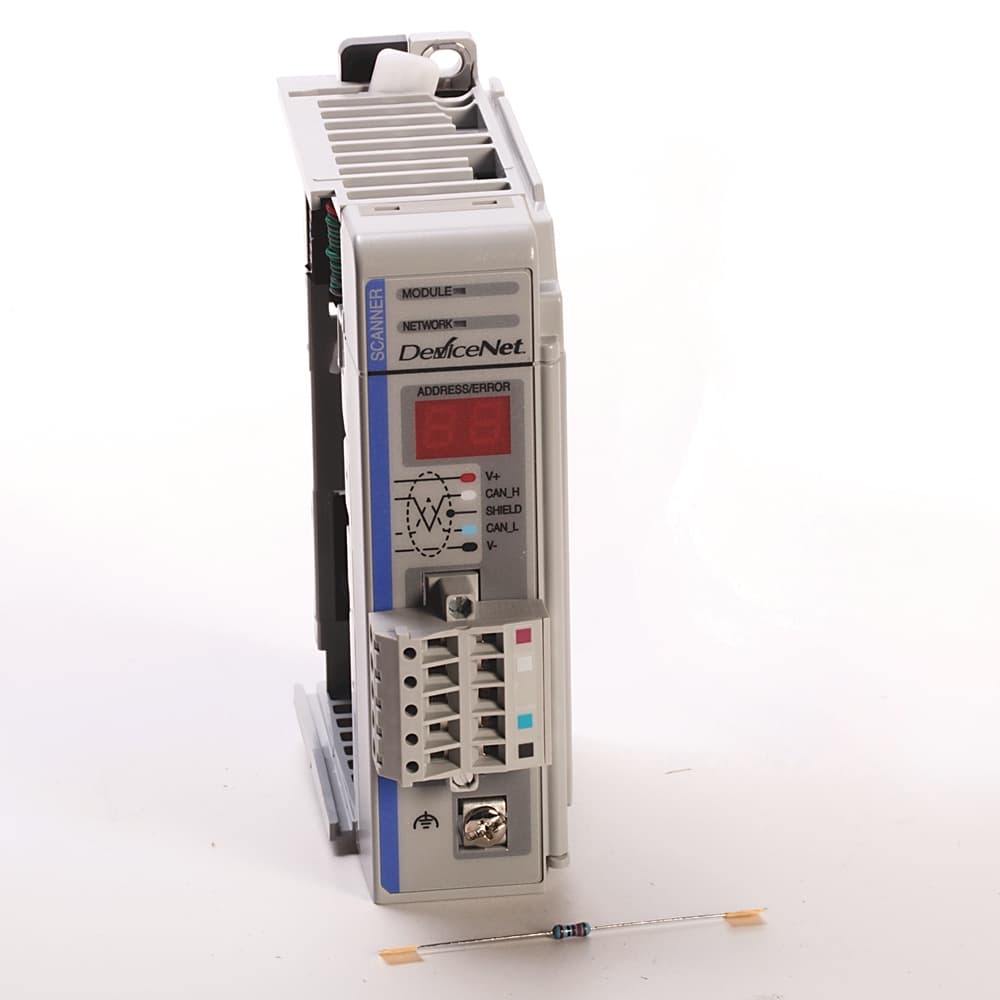

1769-SDN
Selling Points
- 11. High-Speed Data Transfer: The 1769-SDN supports data transfer speeds of 125 Kbps, 250 Kbps, and 500 Kbps, ensuring rapid data exchange between devices, thereby enhancing the overall efficiency of your control system.;
- 22. Robust Connectivity Options: This module integrates with various bus systems, including DeviceNet, allowing for flexible and reliable communication within your industrial network.;
- 33. Durable Design: Built to withstand harsh industrial environments, the 1769-SDN operates within a temperature range of 0 to 60°C, ensuring consistent performance under demanding conditions.;
- 44. Easy Installation and Configuration: The module is designed for easy installation and configuration, with clear indicators for module and network status, making it simple to monitor and troubleshoot.;
- 55. Comprehensive Compatibility: Compatible with a wide range of Allen Bradley controllers, including CompactLogix and MicroLogix 1500, the 1769-SDN ensures seamless integration into your existing control system architecture.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Weight | 0.28 | Stock Status | STOCKED |
Dimension Length | 14.1 | Dimension Width | 16.61 |
Lead Time | 5 | Dimension Height | 11.71 |
Quick Turnaround | false | Preferred Availability | false |
Repairable | NOT_REPAIRABLE | North American temperature code | T3C |
Operating temperature | 0 to 60 °C | Nonoperating temperature | -40 to 85 °C |
Surge transient immunity | ±2 kV line-earth (CM) on communication ports | Conducted RF immunity | 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz |
Shock | Operating: 30 G | Relative humidity | 5...95% noncondensing |
ESD immunity | 6 kV contact discharges, 8 kV air discharges | Vibration | 2 G @ 10...500 Hz |
Surrounding air temperature, max | 60 °C | Mounting screw torque | 1.16 Nm (10 in-lb) - use M4 or #8 screws |
Module location | DIN rail or panel mount | Weight, approx | 0.28 kg |
Height | 118 mm | Width | 50 mm |
Slot width | 1 | Radio standard UMTS | No |
Radio standard GSM | No | Radio standard GPRS | No |
Supporting protocol for SafetyBUS p | No | Supporting protocol for PROFIsafe | No |
Supporting protocol for PROFINET IO | No | Supporting protocol for PROFINET CBA | No |
Supporting protocol for Foundation Fieldbus | No | Supporting protocol for AS-Interface Safety at Work | No |
Radio standard Wi-Fi 802.11 | No | Radio standard Bluetooth | No |
Supporting protocol for INTERBUS-Safety | No | Supporting protocol for SERCOS | No |
With potential separation | No | Supporting protocol for SUCONET | No |
Supporting protocol for Data-Highway | No | Supporting protocol for Modbus | No |
Supporting protocol for KNX | No | Supporting protocol for INTERBUS | No |
Supporting protocol for CAN | No | Supporting protocol for PROFIBUS | No |
Supporting protocol for ASI | No | Supporting protocol for LON | No |
Enclosure type rating | None (open-style) | Type of data transmission | Other |
Supporting protocol for EtherNet/IP | No | Supporting protocol for DeviceNet Safety | No |
IO link master | No | Redundancy | No |
Supporting protocol for other bus systems | No | Supporting protocol for DeviceNet | Yes |
Supporting protocol for TCP/IP | No | With optical interface | No |
Suitable for safety functions | No | Number of HW-interfaces industrial Ethernet | 1 |
Depth | 87 mm |
Specifications may be subject to change without notice
