Product Model

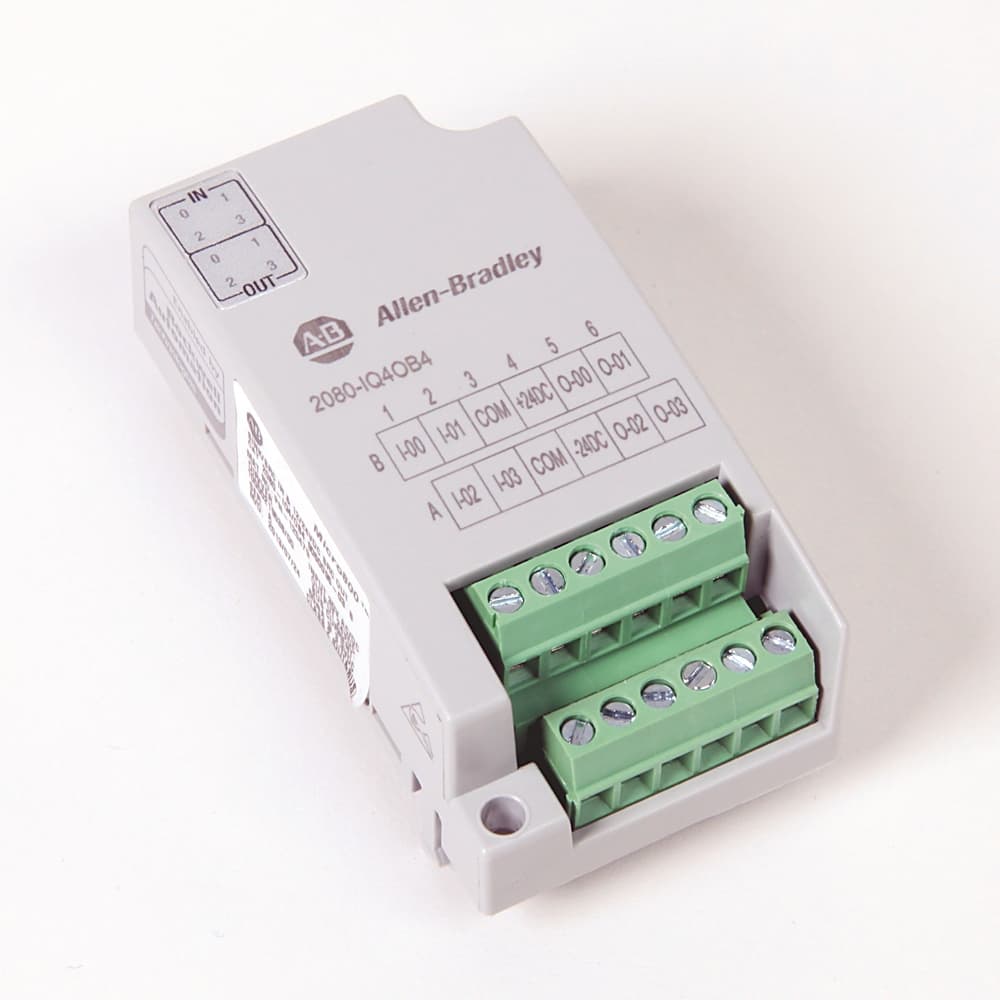

2080-IQ4OB4
Selling Points
- 11. Versatile I/O Configuration: The 2080-IQ4OB4 offers a combination of 4 digital inputs and 4 digital outputs, providing flexibility in your Micro800 system setup.;
- 22. Wide Voltage Compatibility: Compatible with 9-30V DC and 10.25-30V AC, making it adaptable to various industrial environments.;
- 33. Reliable Performance: Designed with transistor-type digital outputs, ensuring stable and consistent performance in demanding applications.;
- 44. Easy Installation: Front-mounting design with screw connections simplifies the installation process, reducing setup time and effort.;
- 55. Durable Construction: Built to withstand operating temperatures from -20°C to 65°C, ensuring reliable operation in a wide range of environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | G |
Weight | 50.0 | Stock Status | STOCKED |
Dimension Length | 9.5 | Dimension Width | 3.5 |
Lead Time | 5 | Dimension Height | 7.2 |
Quick Turnaround | false | Preferred Availability | true |
Repairable | NOT_REPAIRABLE | Explosion safety category for dust | None |
Explosion safety category for gas | None | Mounting torque | 0.2 nm |
Vibration | 2.0 G @ 10â¦500 Hz | Shock | Operating: 25 g |
Terminal base screw torque, max | 0.22...0.25 Nm (1.95...2.21 in-lb) (using a 2.5 mm (0.10 in.) flat-blade screwdriver) | Off-state leakage current, max | 10 μA |
Input impedance | 0...3V, >4 K?, 3...12V, 3.5 K? minimum, 12...30V, >4 K? <10 K? | Input filter time | ON to OFF: 8...10 ms AC/DC |
IEC input compatibility | Type 3 | Nonoperating temperature | 40 to 85 °C |
Operating temperature | -20 to 65 °C | Relative humidity | 5...95% noncondensing |
North American temperature code | T4 | Surrounding air temperature, max | 65 °C |
Power supply voltage | 10.8V DC, minimum, 30V DC, maximum | SIL according to IEC 61508 | None |
Redundancy | No | Isolation voltage | 50V (continuous), basic insulation type, inputs to outputs, I/Os to backplane type tested for 60 s @ 720V DC, I/Os to backplane |
Wire size | 0.2... 2.5 mm2 (24...12 AWG) solid or stranded copper wire rated @ 90 °C (194 °F), or greater, insulation maximum | On-state current, nom | 3.0mA @ 24V DC |
ON-state current, max | 5 mA | Number of I/O | 4 channel inputs/source outputs combination |
On-state current, output | Steady state: 0.5 A maximum | On-state voltage, output | 24V DC nominal |
Status indicator | 8 yellow | Type of electric connection | Screw connection |
Type of digital output | Transistor | Type of output voltage | DC |
Type of voltage (input voltage) | AC/DC | Digital outputs configurable | No |
Digital inputs configurable | No | Number of digital outputs | 4 |
Number of digital inputs | 4 | Temperature Rating | -20â¦65 °C (-4â¦149 °F) |
Output | 4 Point, 12/24V DC, Source | Consist Of | Screws |
Specifications may be subject to change without notice
