Product Model

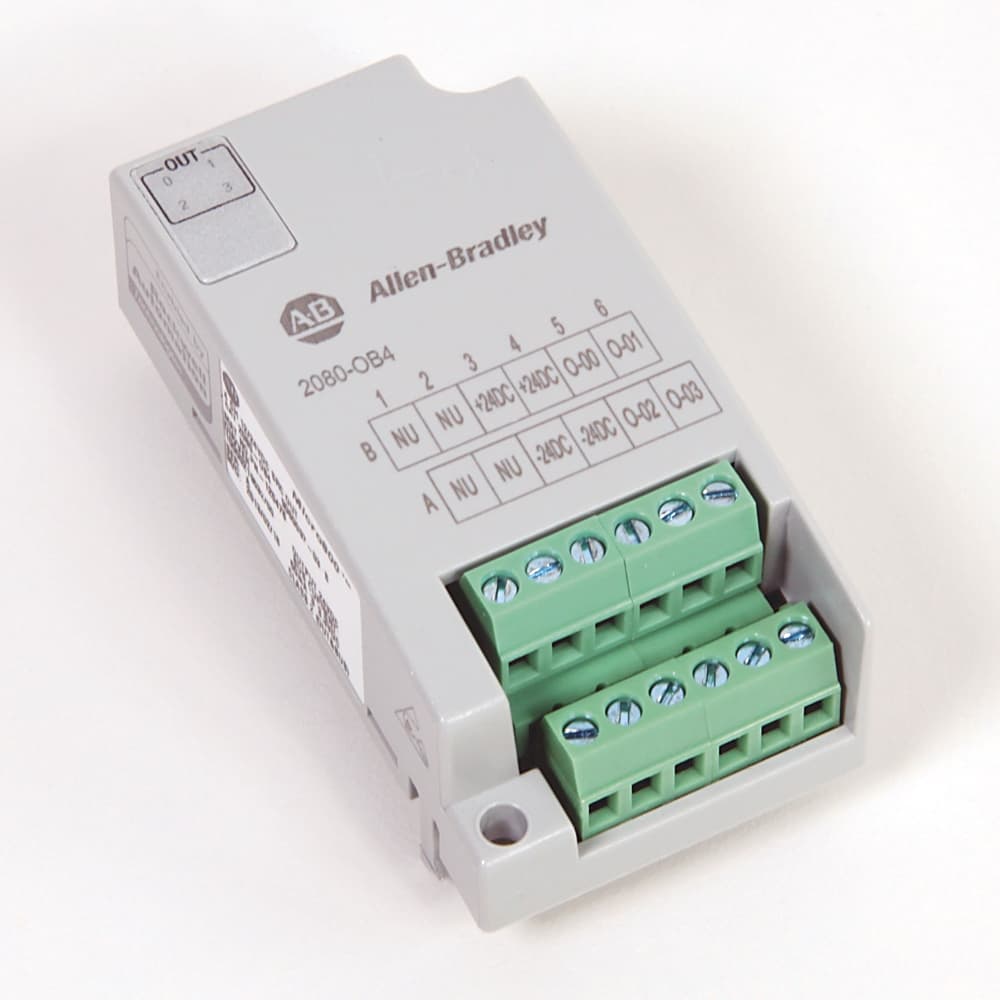

2080-OB4
Selling Points
- 11. Robust Performance: The 2080-OB4 is built to withstand operating temperatures from -20°C to 65°C, ensuring reliable performance in a wide range of industrial environments.;
- 22. Easy Integration: With its compact design and screw connection type, the module is easy to integrate into existing systems, minimizing installation time and effort.;
- 33. Configurable Outputs: The module provides configurable digital outputs, allowing users to tailor the module to their specific application needs.;
- 44. High Isolation Voltage: The 2080-OB4 features a basic insulation type with an isolation voltage of 50V DC, ensuring safe operation and reducing the risk of electrical shock.;
- 55. Compact Dimensions: Measuring 2.794 cm in height, 9.296 cm in width, and 6.706 cm in length, the module occupies minimal space on the control panel, making it ideal for space-constrained applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | G |
Weight | 45.0 | Stock Status | STOCKED |
Dimension Length | 6.706 | Dimension Width | 9.296 |
Lead Time | 5 | Dimension Height | 2.794 |
Quick Turnaround | false | Preferred Availability | true |
Repairable | NOT_REPAIRABLE | Explosion safety category for dust | None |
Explosion safety category for gas | None | Mounting torque | 0.2 nm |
Vibration | 2.0 G @ 10â¦500 Hz | Shock | Operating: 25 g |
Terminal base screw torque, max | 0.22...0.25 Nm (1.95...2.21 in-lb) (using a 2.5 mm (0.10 in.) flat-blade screwdriver) | Off-state leakage current, max | 10 μA |
On-state current, min | 5.0mA @ 10V DC | On-state voltage, nom | 24V DC |
On-state voltage, min | 10V DC | ON-state voltage, max | 30V DC |
Nonoperating temperature | 40 to 85 °C | Operating temperature | -20 to 65 °C |
Relative humidity | 5...95% noncondensing | North American temperature code | T4 |
Surrounding air temperature, max | 65 °C | Power supply voltage | 10.8V DC, minimum, 30V DC, maximum |
SIL according to IEC 61508 | None | Redundancy | No |
Wire category | 2 - on signal ports, 2 - on power ports | Isolation voltage | 50V (continuous), basic insulation type, inputs to outputs, I/Os to backplane type tested for 60 s @ 720V DC, I/Os to backplane |
Wire size | 0.2... 2.5 mm2 (24...12 AWG) solid or stranded copper wire rated @ 90 °C (194 °F), or greater, insulation maximum | ON-state current, max | Steady state: 0.5A @ 2A, surge for 2 s, minimum` |
Number of I/O | 4 (source outputs) | Status indicator | 4 yellow |
Type of electric connection | Screw connection | Type of digital output | Transistor |
Type of output voltage | DC | Type of voltage (input voltage) | DC |
Digital outputs configurable | No | Digital inputs configurable | No |
Temperature Rating | -20â¦65 °C (-4â¦149 °F) | I/O Status Indication | LED |
Specifications may be subject to change without notice
