Product Model

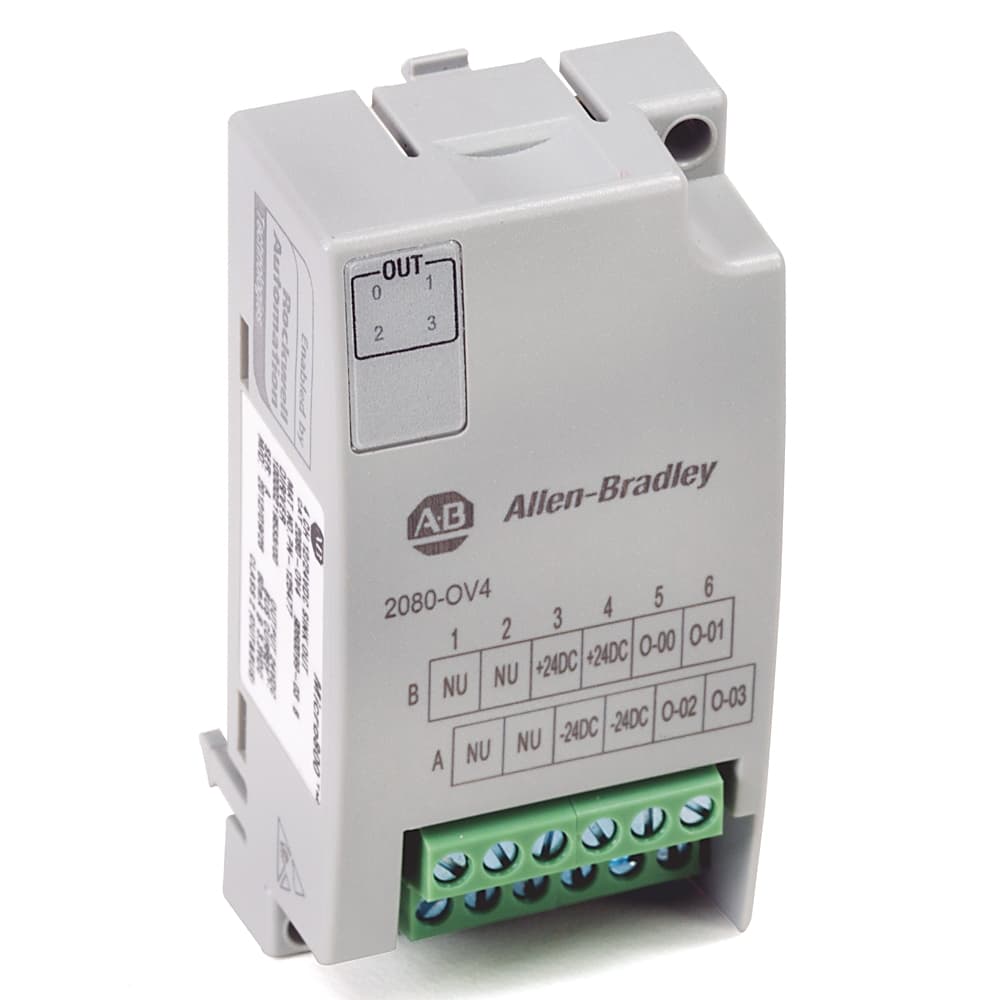

2080-OV4
Selling Points
- 11. Reliable Operation: The Allen-Bradley 2080-OV4 operates reliably at 12/24VDC, ensuring consistent performance in industrial automation applications.;
- 22. LED Status Indication: Equipped with LED status indicators, this module provides clear visual feedback on its operational status, enhancing system monitoring and troubleshooting.;
- 33. International Safety Standards: Compliant with international safety standards (C-TICK, CE, CUL, KC, UL), the 2080-OV4 ensures that your system meets the highest safety requirements.;
- 44. Compact Design: With an IP20 enclosure, this module is designed to be compact and easy to integrate into your existing control systems.;
- 55. Versatile Mounting Options: The 2080-OV4 can be easily mounted onto a controller, offering flexibility in system design and installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Weight | 0.023 | Stock Status | NON_STOCKED |
Dimension Length | 8.992 | Dimension Width | 5.994 |
Lead Time | 5 | Dimension Height | 2.997 |
Quick Turnaround | false | Preferred Availability | false |
Repairable | NOT_REPAIRABLE | Explosion safety category for dust | None |
Explosion safety category for gas | None | Mounting torque | 0.2 nm |
Vibration | 2.0 G @ 10â¦500 Hz | Shock | Operating: 25 g |
Terminal base screw torque, max | 0.22...0.25 Nm (1.95...2.21 in-lb) (using a 2.5 mm (0.10 in.) flat-blade screwdriver) | Off-state leakage current, max | 10 μA |
On-state current, min | 5.0mA @ 10V DC | On-state voltage, nom | 24V DC |
On-state voltage, min | 10V DC | ON-state voltage, max | 30V DC |
Nonoperating temperature | 40 to 85 °C | Operating temperature | -20 to 65 °C |
Relative humidity | 5...95% noncondensing | North American temperature code | T4 |
Surrounding air temperature, max | 65 °C | Power supply voltage | 10.8V DC, minimum, 30V DC, maximum |
SIL according to IEC 61508 | None | Redundancy | No |
Isolation voltage | 50V (continuous), basic insulation type, inputs to outputs, I/Os to backplane type tested for 60 s @ 720V DC, I/Os to backplane | Wire size | 0.2... 2.5 mm2 (24...12 AWG) solid or stranded copper wire rated @ 90 °C (194 °F), or greater, insulation maximum |
ON-state current, max | Steady state: 0.5A @ 2A, surge for 2 s, minimum | Number of I/O | 4 (sink outputs) |
Status indicator | 4 yellow | Type of electric connection | Screw connection |
Type of digital output | Transistor | Type of output voltage | DC |
Type of voltage (input voltage) | DC | Digital outputs configurable | No |
Digital inputs configurable | No | Temperature Rating | -20â¦65 °C (-4â¦149 °F) |
Output | 4 Point, 12/24V Dc, Sink | I/O Isolation | None |
Consist Of | Screws |
Specifications may be subject to change without notice
