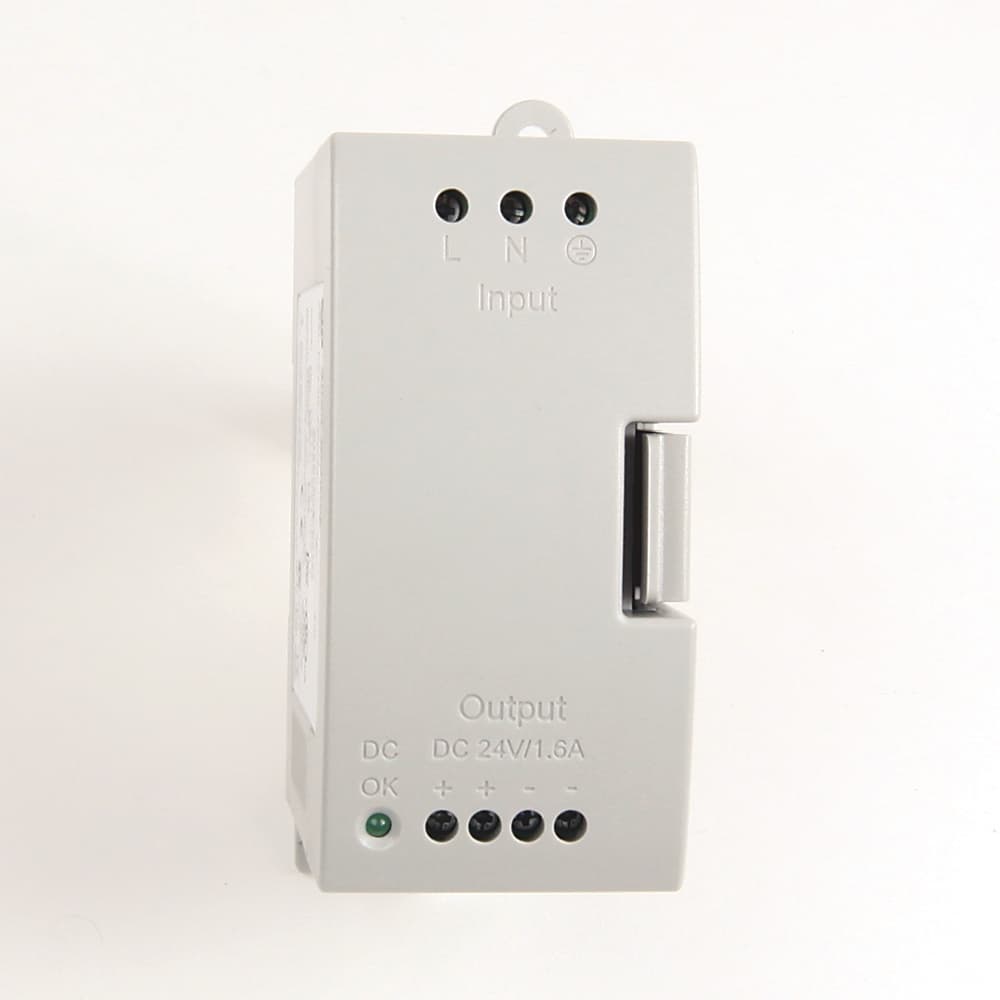

Product Model
2080-PS120-240VAC
Selling Points
- 11. Reliable Power Supply: The Allen Bradley 2080-PS120-240VAC provides a stable 24V DC output, ensuring consistent performance in your control systems.;
- 22. Versatile Input Range: Compatible with both 120V and 240V AC inputs, this power supply adapts to various industrial settings.;
- 33. Compact Design: With dimensions of 45 mm x 90 mm x 80 mm, it fits seamlessly into your control panel designs.;
- 44. Durable Construction: Meets IP20 rating, providing protection against solid objects larger than 12.5 mm in diameter, ensuring long-term reliability.;
- 55. Wide Operating Temperature Range: Operates between -20°C and 65°C, making it suitable for a variety of industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Stock Status | STOCKED | Dimension Length | 11.557 |
Dimension Width | 9.525 | Lead Time | 5 |
Dimension Height | 8.128 | Quick Turnaround | false |
Preferred Availability | true | Repairable | NOT_REPAIRABLE |
Storage temperature | -40...85 °C (-40...185 °F), IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold), IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock) | Surge transient immunity | IEC 61000-4-5: ±1 kV line-line(DM) and ±2 kV line-earth(CM) on power ports |
Conducted RF immunity | IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz | ESD immunity | IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges |
EFT/B immunity | IEC 61000-4-4: ±2kV @ 5kHz on power ports | Emissions | CISPR 11 Group 1, Class A |
Surrounding air temperature, max | 65 °C | Voltage variation | IEC 61000-4-11: 30% dips for 1 period at 0° and 180° on AC supply ports, 60% dips for 5 and 50 periods on AC supply ports, ±10% fluctuations for 15 min on AC supply ports, >95% interruptions for 250 periods on AC supply ports |
Radiated RF immunity | IEC 61000-4-3: 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM at 900 MHz, 10 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz | Operating temperature | -20...65 °C (-4...149 °F), IEC 60068-2-1 (Test Ad, operating cold), IEC 60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock) |
Shock | Operating: 30 G, IEC 60068-2-27 (Test Ea, unpackaged shock) | Relative humidity | IEC 60068-2-30 (Test Db, unpackaged dA heat), 5...95% noncondensing |
Vibration | IEC 60068-2-6 (Test Fc, operating), 2 G @ 10...500 Hz | Wiring category | 2 - on power ports |
Supply frequency | 47...63 Hz | Redundancy | No |
Suitable for safety functions | No | Wire size | 0.32...2.1 mm2 (22...14 AWG) solid copper wire or, 0.32...1.3 mm2 (22...16 AWG) stranded copper wire, Rated at 90 °C (194 °F) insulation max |
Isolation voltage | 250V (continuous), primary to sary: reinforced Insulation Type, Type tested for 60s @ 2300V AC primary to sary and 1480V AC primary to earth ground | Terminal screw torque | 0.5...0.6 Nm (4.4...5.3 in-lb) (using a Phillips-head or 2.5 mm (0.10in.) flat-blade screwdriver) |
Power dissipation (Input power) | 45.1 W @ 100V AC, 44.0 W @ 240V AC | Output rating | 24V DC @ 1.6A, 38.4 W maximum |
Inrush current, max | 24A @ 132V for 10 ms, 40A @ 263V for 10 ms | Supply power | 24V DC @ 1.6A |
Supply voltage | 100...120V AC @ 1A, 200...240V AC @ 0.5A | Power consumption (Output power) | 38.4 W @ 100V AC, 38.4 W @ 240V AC |
North American temperature code | T4A | Weight | 0.286 |
Enclosure type rating | Meets IP20 | Insulation stripping length | 7 mm |
Depth | 80 mm | Height | 90 mm |
Width | 45 mm |
Specifications may be subject to change without notice
