Product Model

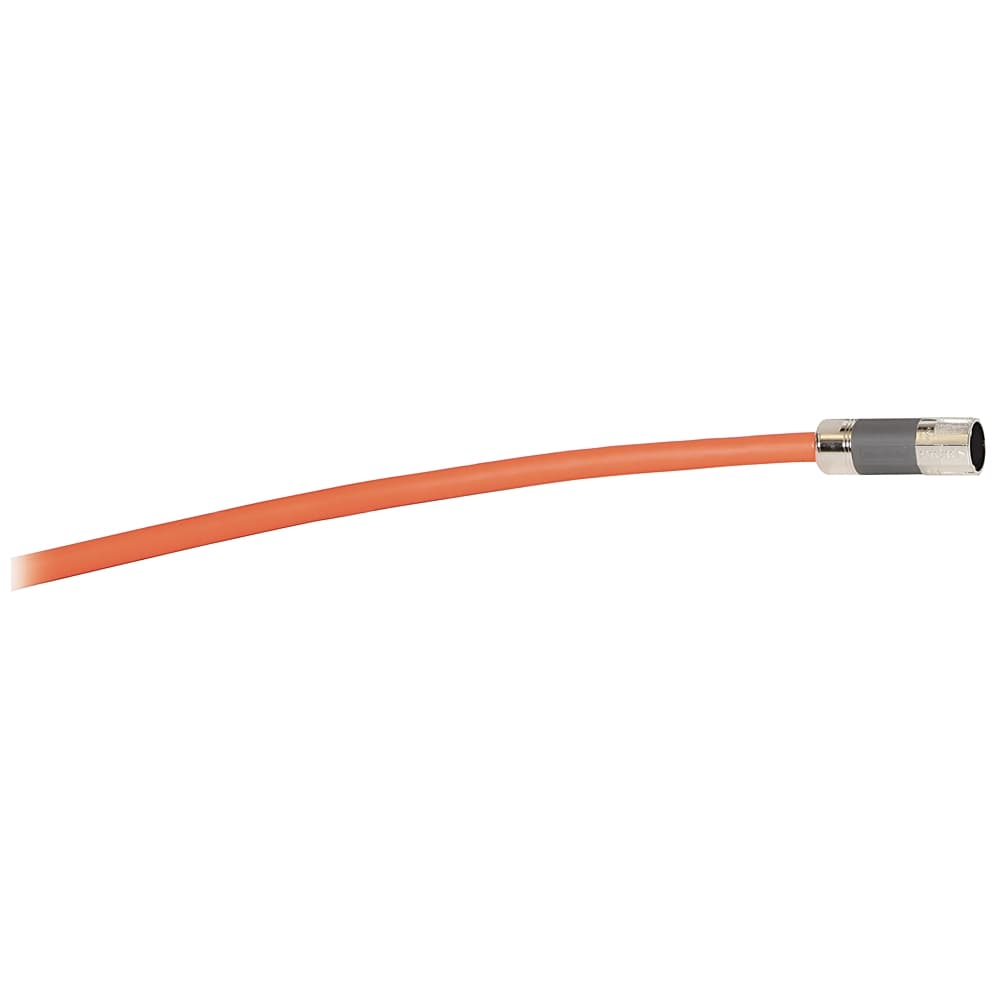

2090-CSBM1DF-10AF06
Selling Points
- 11. High-Quality Construction: The 2090-CSBM1DF-10AF06 features a robust TPE jacket with an overall tinned copper braid, ensuring excellent EMC/EMI performance and durability.;
- 22. Optimized for Kinetix 5500 Drives: Designed specifically for Kinetix 5500 drives, this cable ensures seamless integration and optimal performance in your motion control applications.;
- 33. Continuous-Flex Capability: With a continuous bend radius of 10 times the cable diameter, this cable can withstand frequent flexing without compromising its integrity.;
- 44. Reliable Power Transmission: The 10 AWG wire provides reliable power transmission, ensuring that your motor receives the necessary energy for smooth operation.;
- 55. Enhanced Safety Features: Equipped with a protective conductor and color-coded cores, this cable enhances safety by reducing the risk of electrical shock and improving visibility during installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Weight | 3.797 | Stock Status | NON_STOCKED |
Dimension Length | 34.112 | Dimension Width | 30.81 |
Lead Time | 38 | Dimension Height | 10.998 |
Quick Turnaround | false | Preferred Availability | false |
Repairable | NOT_REPAIRABLE | Max. conductor temperature | 105 |
Features | Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol | Continuous bend radius | Continuous flex: 10 times the cable diam |
Accessory component | Cable | Twisted cores | No |
Weight, approx | Continuous-flex, power with brake wire: 0.551 kg/m | Cable style | Continuous-flexible |
Nominal cross section conductor (AWG) | 10.38 | Nominal cross section conductor | 5.26 |
Cable description | Power with brake wires: 1000V hybrid cable with four power, two ftdback (digital communication), and two brake conductors | Cable type | Single motor power with brake wires |
Nominal voltage U | 1000 | AWG size | 10 AWG |
Motor-end connector type | Single speedTec DIN connector | Core color | White/blue |
Color cable code | RAL2003 | Conductor surface | Tinned |
Conductor material | Copper | Colour outer sheath | Orange |
Core identification | Colour | With protective conductor | Yes |
Number of cores | 8 | Drive-end connector type | Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500) |
Cable length | 6 m | Core colour | White |
Outer diameter approx. | 19 mm | Motor-end Connector Type | Single SpeedTec DIN Connector |
Drive-end Connector Type | Flying Lead at 5500 Drive End | Cable Style | Continuous-flex |
Accessory Component | Single DSL |
