Product Model
2090-CSBM1DF-14AA09
Selling Points
- 11. High-Quality Construction: The Allen Bradley 2090-CSBM1DF-14AA09 is crafted with high-quality materials, ensuring durability and reliability in demanding motion control applications.;
- 22. Versatile Connectivity: This servo cable supports power, brake, and feedback connections, making it versatile for various motion control systems.;
- 33. Suitable for Kinetix 5500 Drives: Designed specifically for use with Kinetix 5500 drives, this cable ensures seamless integration and optimal performance.;
- 44. Non-Flex Cable Design: The 14 AWG non-flex cable minimizes the risk of damage from flexing, ensuring consistent performance over time.;
- 55. Compliant with Industry Standards: Meets NFPA 79, DESINA, UL, and CSA standards, ensuring compliance with industry regulations and safety protocols.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Weight | 3.152 | Stock Status | STOCKED |
Dimension Length | 30.709 | Dimension Width | 30.302 |
Lead Time | 5 | Dimension Height | 10.693 |
Quick Turnaround | false | Preferred Availability | true |
Repairable | NOT_REPAIRABLE | Max. conductor temperature | 105 |
Features | Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol | Static bend radius | Standard (non-flex) and continuous flex: 7 times the cable diam |
Accessory component | Cable | Twisted cores | No |
Weight, approx | Continuous-flex, power with brake wire: 0.289 kg/m | Cable style | Standard, non-flexible |
Nominal cross section conductor (AWG) | 4.1 | Nominal cross section conductor | 2.08 |
Cable description | Power with brake wires: 1000V hybrid cable with four power, two ftdback (digital communication), and two brake conductors | Cable type | Single motor power with brake wires |
Nominal voltage U | 1000 | AWG size | 14 |
Motor-end connector type | Single speedTec DIN connector | Core color | White/blue |
Color cable code | RAL2003 | Conductor surface | Tinned |
Conductor material | Copper | Colour outer sheath | Orange |
Core identification | Colour | With protective conductor | Yes |

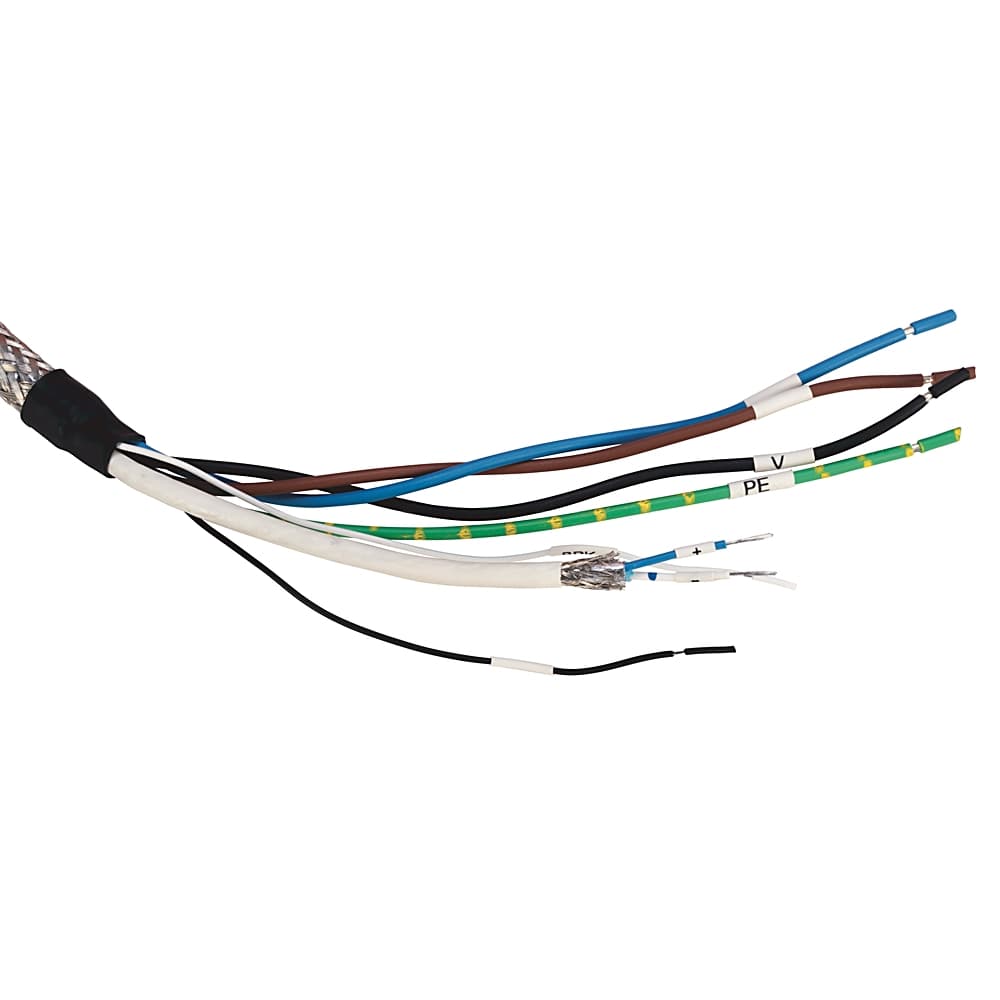

Number of cores | 8 | Drive-end connector type | Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500) |
Cable length | 9 m | Core colour | White |
Outer diameter approx. | 17 | Motor-end Connector Type | Single SpeedTec DIN Connector |
Drive-end Connector Type | Flying Lead at 5500 Drive End | Cable Style | Standard, Non-flex |
Specifications may be subject to change without notice
