Product Model

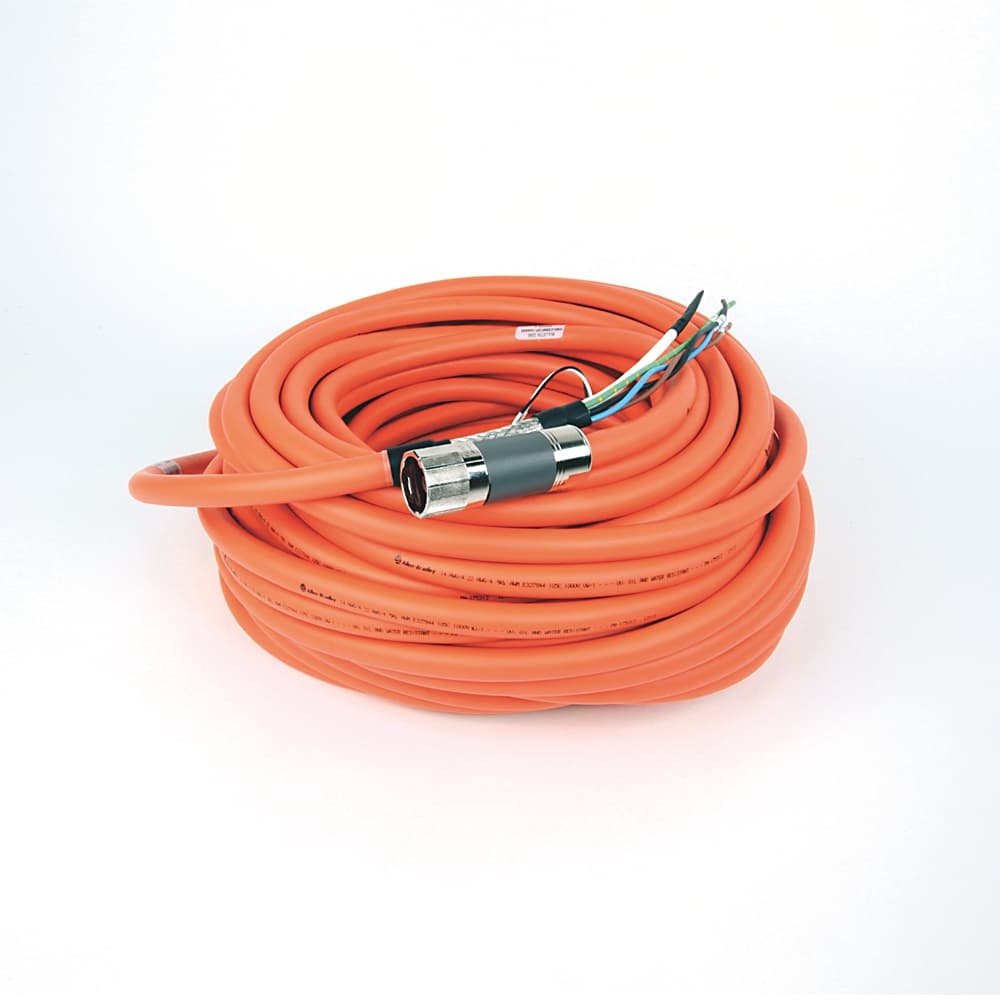

2090-CSBM1DF-14AA35
Selling Points
- 11. Reliable Performance: The Allen-Bradley 2090-CSBM1DF-14AA35 is engineered to provide consistent performance in industrial environments, ensuring your motor control systems operate efficiently.;
- 22. Versatile Application: Designed for power, feedback, and brake applications, this cable is versatile and can be used in a variety of industrial settings, including manufacturing and automation.;
- 33. High-Quality Materials: Constructed with a 14 AWG wire and featuring a tinned copper braid with aluminum/polyester tape for excellent EMC/EMI performance, this cable is built to last.;
- 44. Optimized for Kinetix 5500 Drives: The SpeedTec DIN connector and flying lead design make this cable specifically optimized for use with Kinetix 5500 drives, ensuring seamless integration and performance.;
- 55. Durable Design: With a non-flex, 35-meter cable, this product is designed to withstand the rigors of industrial environments, providing a durable solution for your motor control needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Weight | 15.422 | Stock Status | NON_STOCKED |
Dimension Length | 26.67 | Dimension Width | 40.005 |
Lead Time | 5 | Dimension Height | 33.655 |
Quick Turnaround | false | Preferred Availability | false |
Repairable | NOT_REPAIRABLE | Max. conductor temperature | 105 |
Features | Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol | Static bend radius | Standard (non-flex) and continuous flex: 7 times the cable diam |
Accessory component | Cable | Twisted cores | No |
Weight, approx | Continuous-flex, power with brake wire: 0.289 kg/m | Cable style | Standard, non-flexible |
Nominal cross section conductor (AWG) | 4.1 | Nominal cross section conductor | 2.08 |
Cable description | Power with brake wires: 1000V hybrid cable with four power, two ftdback (digital communication), and two brake conductors | Cable type | Single motor power with brake wires |
Nominal voltage U | 1000 | AWG size | 14 |
Motor-end connector type | Single speedTec DIN connector | Core color | White/blue |
Color cable code | RAL2003 | Conductor surface | Tinned |
Conductor material | Copper | Colour outer sheath | Orange |
Core identification | Colour | With protective conductor | Yes |
Number of cores | 8 | Drive-end connector type | Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500) |
Cable length | 35 m | Core colour | White |
Outer diameter approx. | 17 | Motor-end Connector Type | Single SpeedTec DIN Connector |
Drive-end Connector Type | Flying Lead at 5500 Drive End | Cable Style | Standard, Non-flex |
Accessory Component | Single DSL |
