Product Model

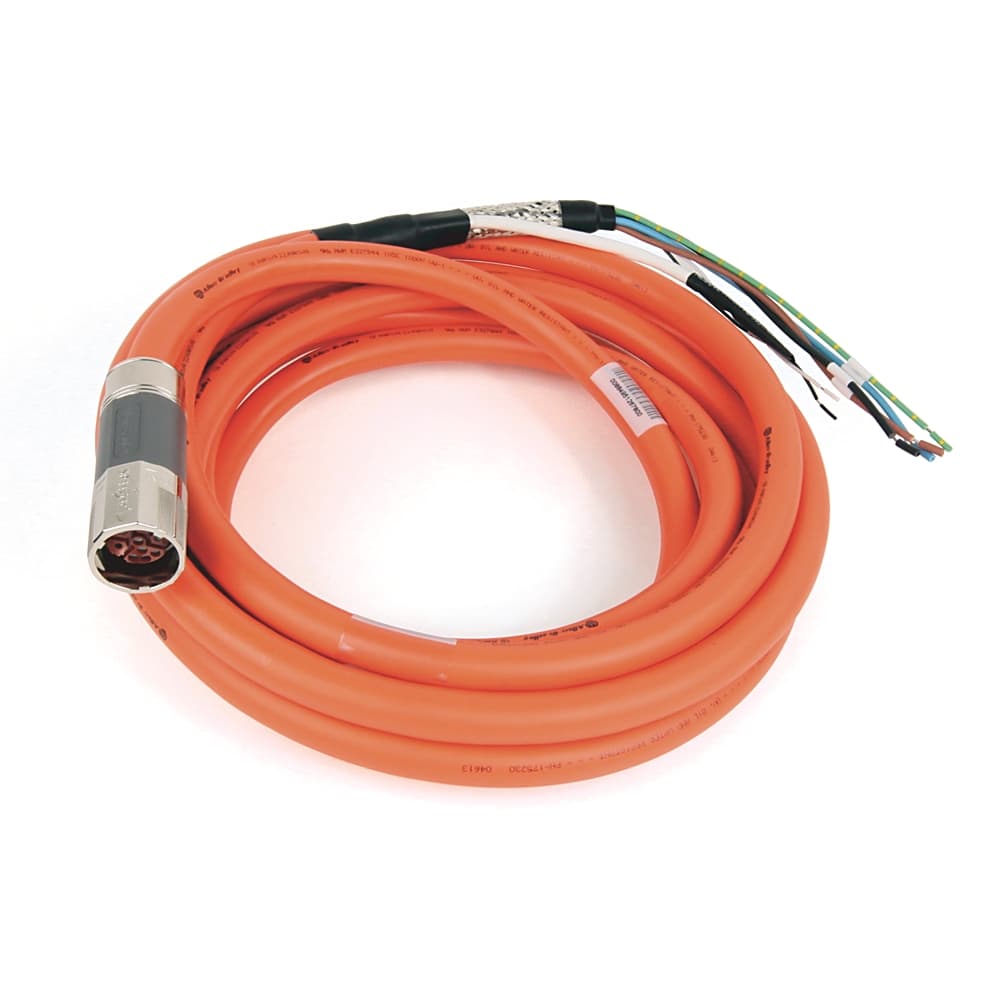

2090-CSBM1DF-18AA05
Selling Points
- 11. High-Quality Construction: The Allen-Bradley 2090-CSBM1DF-18AA05 is built with high-quality materials, ensuring durability and reliability in demanding industrial environments.;
- 22. Optimized for Kinetix 5500: Specifically designed for Kinetix 5500 drives, this cable ensures seamless integration and optimal performance in your servo drive applications.;
- 33. Power, Feedback, and Brake Capabilities: Equipped with four power conductors, two feedback (digital communication) conductors, and two brake conductors, this cable meets the needs of complex motor control systems.;
- 44. Low Capacitance Design: Featuring a low capacitance design, this cable maximizes system power density, making it ideal for applications where efficiency is crucial.;
- 55. Standard, Non-Flexible Cable: The standard, non-flexible cable design ensures consistent performance and reduces the risk of damage from bending or flexing, providing a reliable connection over time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Weight | 1.599 | Stock Status | STOCKED |
Dimension Length | 30.302 | Dimension Width | 27.788 |
Lead Time | 5 | Dimension Height | 7.899 |
Quick Turnaround | false | Preferred Availability | true |
Repairable | NOT_REPAIRABLE | Max. conductor temperature | 105 |
Features | Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol | Static bend radius | Standard (non-flex) and continuous flex: 7 times the cable diam |
Accessory component | Cable | Twisted cores | No |
Weight, approx | Continuous-flex, power with brake wire: 0.228 kg/m | Cable style | Standard, non-flexible |
Nominal cross section conductor (AWG) | 1.62 | Nominal cross section conductor | 0.82 |
Cable description | Power with brake wires: 1000V hybrid cable with four power, two ftdback (digital communication), and two brake conductors | Cable type | Single motor power with brake wires |
Nominal voltage U | 1000 | AWG size | 18 AWG |
Motor-end connector type | Single speedTec DIN connector | Core color | White/blue |
Color cable code | RAL2003 | Conductor surface | Tinned |
Conductor material | Copper | Colour outer sheath | Orange |
Core identification | Colour | With protective conductor | Yes |
Number of cores | 8 | Drive-end connector type | Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500) |
Cable length | 5 m | Core colour | White |
Outer diameter approx. | 15 mm | Motor-end Connector Type | Single SpeedTec DIN Connector |
Drive-end Connector Type | Flying Lead at 5500 Drive End | Cable Style | Standard, Non-flex |
Accessory Component | Single DSL |
Specifications may be subject to change without notice
