Product Model

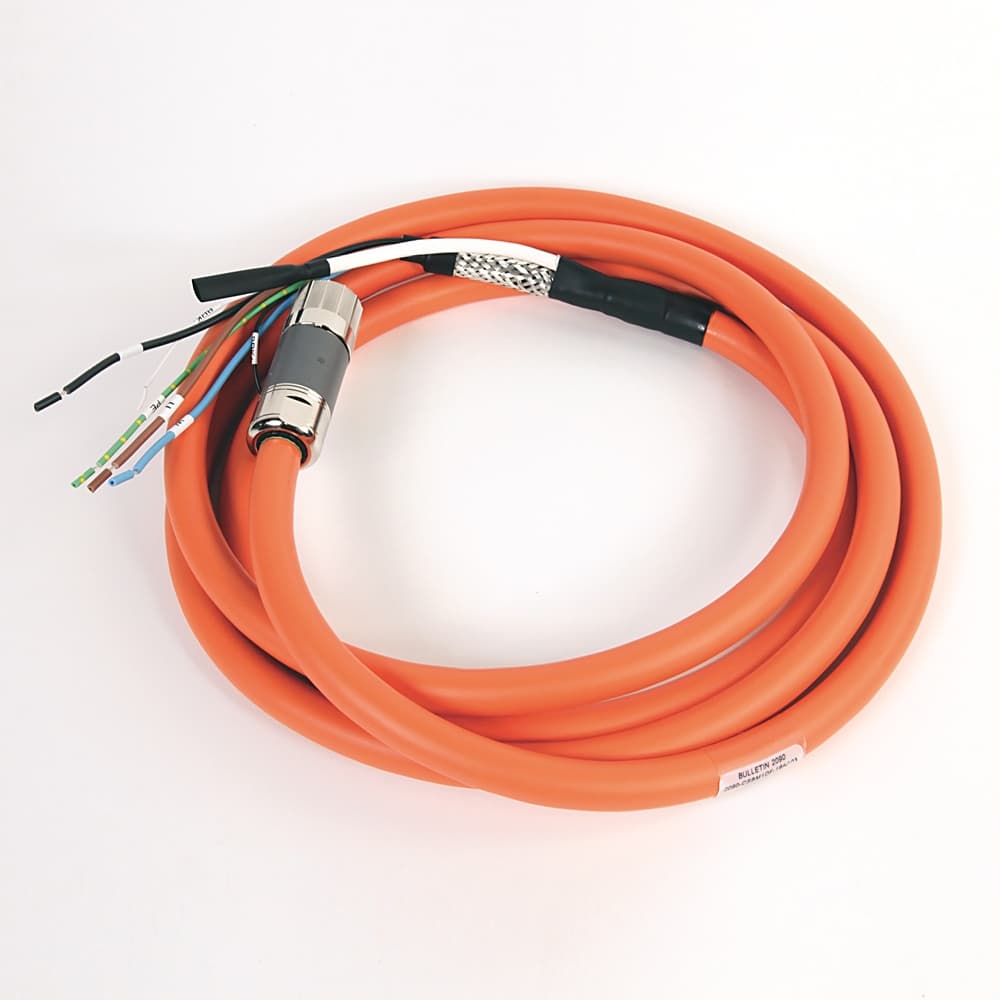

2090-CSBM1DF-18AA26
Selling Points
- 11. Optimized for Kinetix 5500 Drives The 2090-CSBM1DF-18AA26 is specifically designed to work seamlessly with Kinetix 5500 drives, ensuring compatibility and optimal performance in your industrial applications.;
- 22. Low Capacitance Design This cable features a low capacitance design, which maximizes system power density and minimizes signal degradation, ensuring reliable power transmission.;
- 33. Noise Rejection Equipped with a SpeedTec connection system and encoder communication data pair with noise rejection, this cable ensures clear and accurate signal transmission even in noisy environments.;
- 44. High Flexibility The cable is designed to withstand continuous flexing, making it suitable for applications where the cable may be subject to frequent bending and twisting without compromising its performance.;
- 55. Durable Construction Constructed with a tinned copper braid and aluminum/polyester tape, this cable provides 100% coverage for excellent EMC/EMI performance and is rated for high temperatures up to 105°C, ensuring long-lasting durability in demanding industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Weight | 7.726 | Stock Status | NON_STOCKED |
Dimension Length | 30.988 | Dimension Width | 30.988 |
Lead Time | 39 | Dimension Height | 18.009 |
Quick Turnaround | false | Preferred Availability | false |
Repairable | NOT_REPAIRABLE | Max. conductor temperature | 105 |
Features | Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol | Static bend radius | Standard (non-flex) and continuous flex: 7 times the cable diam |
Accessory component | Cable | Twisted cores | No |
Weight, approx | Continuous-flex, power with brake wire: 0.228 kg/m | Cable style | Standard, non-flexible |
Nominal cross section conductor (AWG) | 1.62 | Nominal cross section conductor | 0.82 |
Cable description | Power with brake wires: 1000V hybrid cable with four power, two ftdback (digital communication), and two brake conductors | Cable type | Single motor power with brake wires |
Nominal voltage U | 1000 | AWG size | 18 AWG |
Motor-end connector type | Single speedTec DIN connector | Core color | White/blue |
Color cable code | RAL2003 | Conductor surface | Tinned |
Conductor material | Copper | Colour outer sheath | Orange |
Core identification | Colour | With protective conductor | Yes |
Number of cores | 8 | Drive-end connector type | Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500) |
Cable length | 26 m | Core colour | White |
Outer diameter approx. | 15 mm | Motor-end Connector Type | Single SpeedTec DIN Connector |
Drive-end Connector Type | Flying Lead at 5500 Drive End | Cable Style | Standard, Non-flex |
Accessory Component | Single DSL |
Specifications may be subject to change without notice
