Product Model

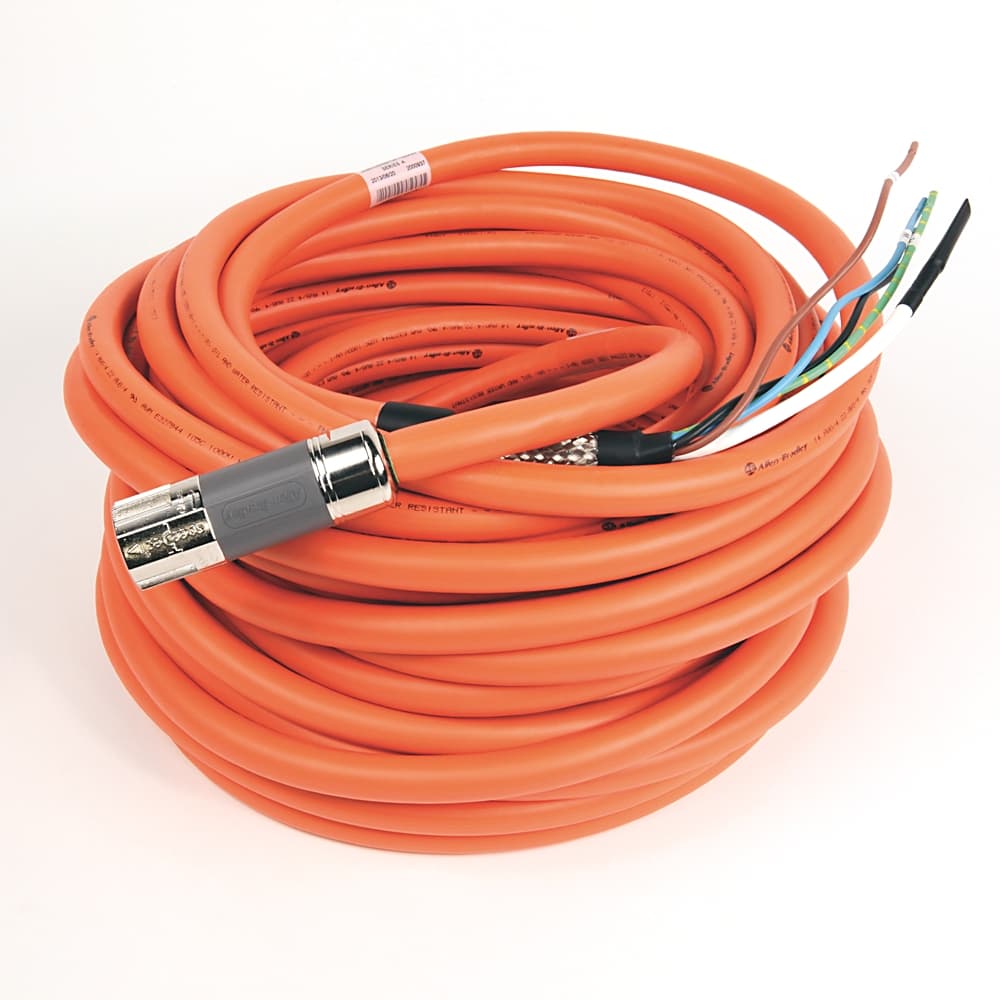

2090-CSWM1DF-14AA50
Selling Points
- 11. Compatibility with Kinetix 5500 Drives: The 2090-CSWM1DF-14AA50 is specifically designed to work seamlessly with Allen Bradley's Kinetix 5500 servo drives, ensuring optimal performance and reliability in your industrial applications.;
- 22. High-Quality 14 AWG Wire: Constructed with 14 AWG wire, this cable provides robust power transmission and minimal signal loss, ensuring consistent performance over long distances.;
- 33. TPE Insulation for Durability: The cable features TPE (Thermoplastic Elastomer) insulation, which offers excellent durability and resistance to chemicals, oils, and extreme temperatures, making it suitable for harsh industrial environments.;
- 44. Non-Flexible Standard Cable Style: The non-flexible standard cable style ensures consistent performance and reduces the risk of damage from repeated bending or flexing, extending the lifespan of the cable.;
- 55. Flying-Lead Connectors for Easy Installation: Equipped with flying-lead connectors, this cable simplifies installation by eliminating the need for on-site lead preparation, saving time and reducing the risk of errors during setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Weight | 20.176 | Stock Status | STOCKED |
Dimension Length | 40.005 | Dimension Width | 40.005 |
Lead Time | 39 | Dimension Height | 33.604 |
Quick Turnaround | false | Preferred Availability | false |
Repairable | NOT_REPAIRABLE | Max. conductor temperature | 105 |
Features | Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol | Static bend radius | Standard (non-flex) and continuous flex: 7 times the cable diam |
Accessory component | Cable | Twisted cores | No |
Weight, approx | Standard (non-flex), power wire: 0.185 kg/m | Cable style | Standard, non-flexible |
Nominal cross section conductor (AWG) | 4.1 | Nominal cross section conductor | 2.08 |
Cable description | Power only: 1000V hybrid cable with four power and two ftdback (digital communication) conductors | Cable type | Single motor power only |
Nominal voltage U | 1000 | AWG size | 14 |
Motor-end connector type | Single speedTec DIN connector | Core color | White/blue |
Color cable code | RAL2003 | Conductor surface | Tinned |
Conductor material | Copper | Colour outer sheath | Orange |
Core identification | Colour | With protective conductor | Yes |
Number of cores | 8 | Drive-end connector type | Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500) |
Cable length | 50 m | Core colour | Green/Yellow |
Outer diameter approx. | 17 | Motor-end Connector Type | Single SpeedTec DIN Connector |
Drive-end Connector Type | Flying Lead at 5500 Drive End | Cable Style | Standard, Non-flex |
