Product Model

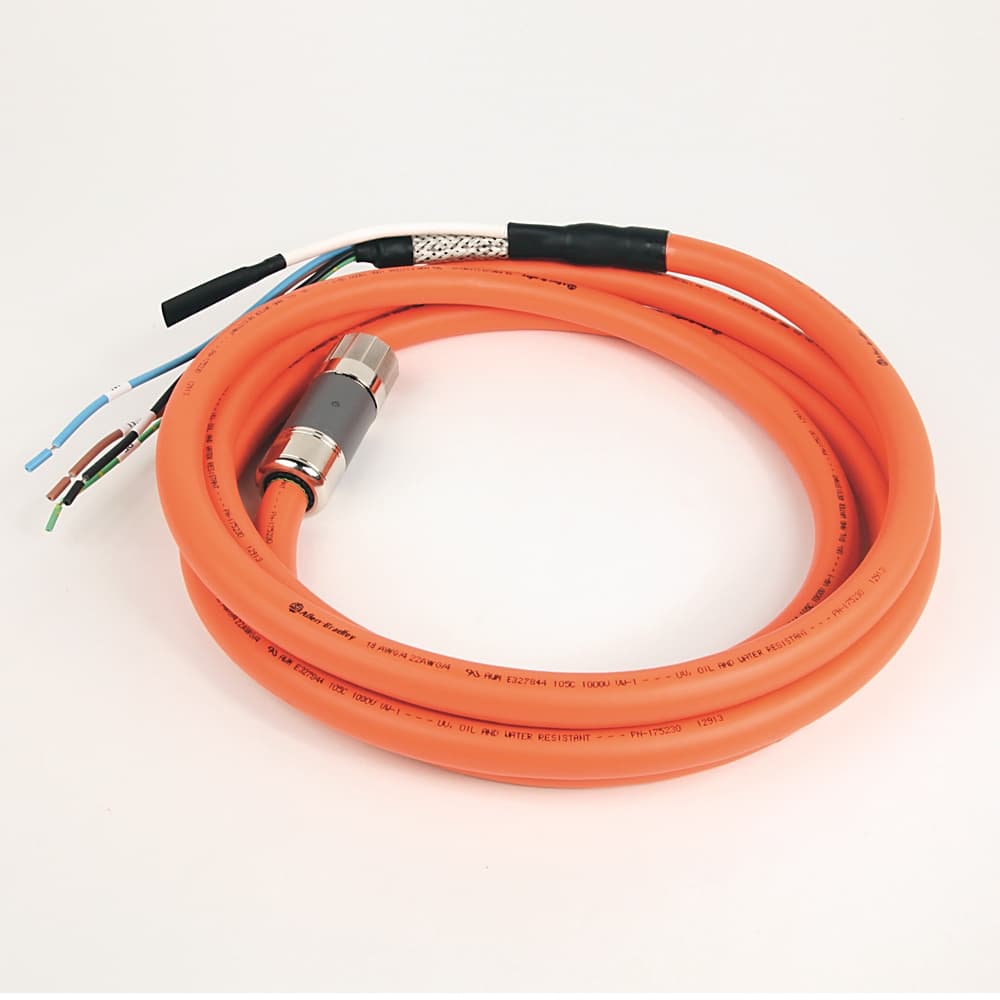

2090-CSWM1DF-18AA04
Selling Points
- 11. High-Voltage Capability: The Allen-Bradley 2090-CSWM1DF-18AA04 supports up to 1000V, ensuring reliable operation in high-voltage applications.;
- 22. Durable Construction: Built with a non-flexible design and TPE orange insulation, this cable withstands the rigors of industrial environments.;
- 33. Efficient Design: With 4 power and 2 feedback (digital communications) conductors, this cable simplifies your design and minimizes maintenance time.;
- 44. Compatibility: Designed for use with Kinetix 5500 drives, this cable ensures seamless integration into your motion control systems.;
- 55. Reliability: Featuring 360° shield-to-ground connections and braided copper electrical screens, this cable provides robust shielding against electrical interference.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Weight | 1.379 | Stock Status | STOCKED |
Dimension Length | 40.64 | Dimension Width | 30.48 |
Lead Time | 5 | Dimension Height | 6.35 |
Quick Turnaround | false | Preferred Availability | false |
Repairable | NOT_REPAIRABLE | Max. conductor temperature | 105 |
Features | Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol | Static bend radius | Standard (non-flex) and continuous flex: 7 times the cable diam |
Accessory component | Cable | Twisted cores | No |
Weight, approx | Standard (non-flex), power wire: 0.136 kg/m | Cable style | Standard, non-flexible |
Nominal cross section conductor (AWG) | 1.62 | Nominal cross section conductor | 0.82 |
Cable description | Power only: 1000V hybrid cable with four power and two ftdback (digital communication) conductors | Cable type | Single motor power only |
Nominal voltage U | 1000 | AWG size | 18 AWG |
Motor-end connector type | Single speedTec DIN connector | Core color | White/blue |
Color cable code | RAL2003 | Conductor surface | Tinned |
Conductor material | Copper | Colour outer sheath | Orange |
Core identification | Colour | With protective conductor | Yes |
Number of cores | 8 | Drive-end connector type | Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500) |
Cable length | 4 m | Core colour | Green/Yellow |
Outer diameter approx. | 15 mm | Motor-end Connector Type | Single SpeedTec DIN Connector |
Drive-end Connector Type | Flying Lead at 5500 Drive End | Cable Style | Standard, Non-flex |
Accessory Component | Single DSL |
Specifications may be subject to change without notice
