Product Model

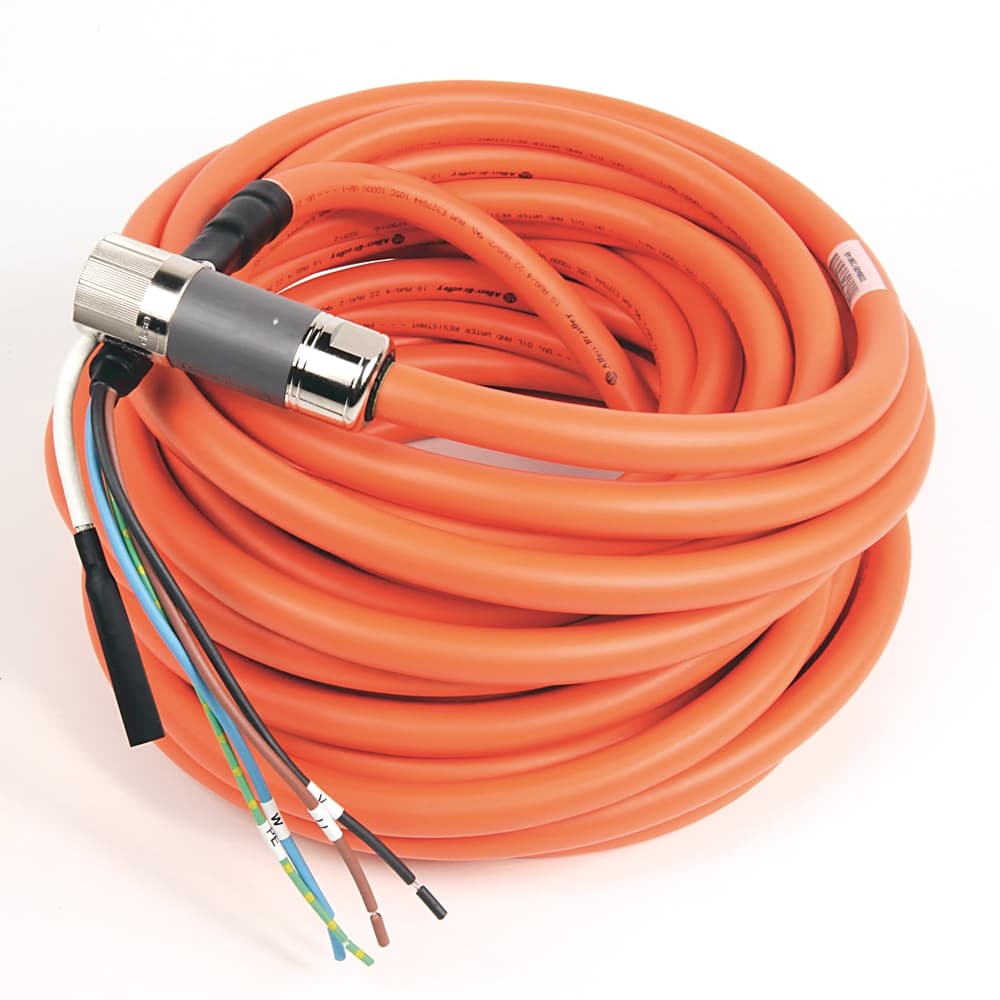

2090-CSWM1DF-18AA17
Selling Points
- 11. Reliable Power Transmission: "Ensure consistent power delivery with the 2090-CSWM1DF-18AA17 cable, designed to meet the demands of Kinetix 5500 drives.";
- 22. Low Capacitance Design: "Maximize system power density with our low capacitance design, reducing energy losses and improving overall efficiency.";
- 33. Excellent EMC/EMI Performance: "Protect your system from electromagnetic interference with the tinned copper braid, ensuring reliable operation in harsh environments.";
- 44. Durable Construction: "Built to last, the 2090-CSWM1DF-18AA17 cable features a TPE jacket with mechanical and chemical properties, ensuring long-lasting performance.";
- 55. Precision Communication: "Enable precise encoder communication with the noise-rejection data pair, ensuring accurate feedback and control in your motor control systems."
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Weight | 5.156 | Stock Status | NON_STOCKED |
Dimension Length | 32.004 | Dimension Width | 32.004 |
Lead Time | 5 | Dimension Height | 11.989 |
Quick Turnaround | false | Preferred Availability | false |
Repairable | NOT_REPAIRABLE | Max. conductor temperature | 105 |
Features | Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol | Static bend radius | Standard (non-flex) and continuous flex: 7 times the cable diam |
Accessory component | Cable | Twisted cores | No |
Weight, approx | Standard (non-flex), power wire: 0.136 kg/m | Cable style | Standard, non-flexible |
Nominal cross section conductor (AWG) | 1.62 | Nominal cross section conductor | 0.82 |
Cable description | Power only: 1000V hybrid cable with four power and two ftdback (digital communication) conductors | Cable type | Single motor power only |
Nominal voltage U | 1000 | AWG size | 18 AWG |
Motor-end connector type | Single speedTec DIN connector | Core color | White/blue |
Color cable code | RAL2003 | Conductor surface | Tinned |
Conductor material | Copper | Colour outer sheath | Orange |
Core identification | Colour | With protective conductor | Yes |
Number of cores | 8 | Drive-end connector type | Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500) |
Cable length | 17 m | Core colour | Green/Yellow |
Outer diameter approx. | 15 mm | Motor-end Connector Type | Single SpeedTec DIN Connector |
Drive-end Connector Type | Flying Lead at 5500 Drive End | Cable Style | Standard, Non-flex |
Specifications may be subject to change without notice
