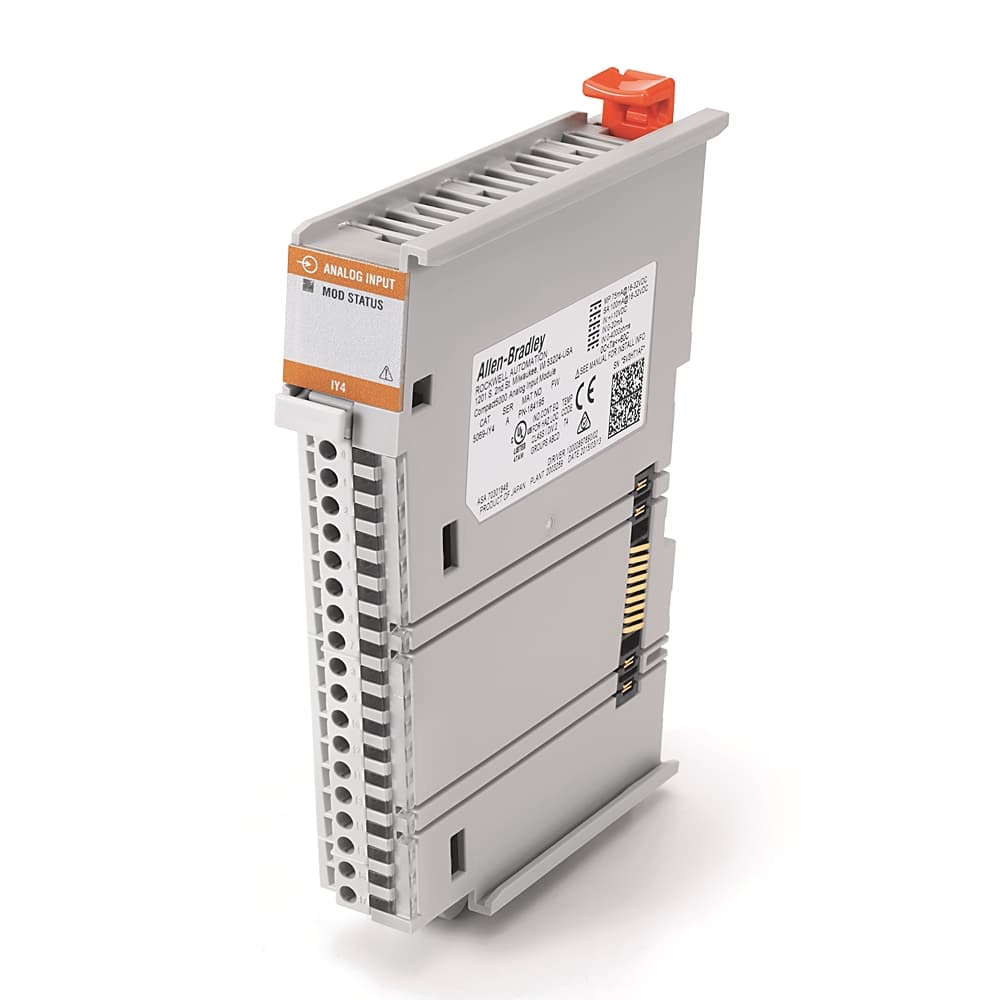

Product Model
5069-IY4
Selling Points
- 11. Versatile Input Options: The 5069-IY4 supports differential and single-ended, non-isolated input channels for current, voltage, RTD, and thermocouple inputs, catering to a wide range of applications.;
- 22. High-Speed Communication: Equipped with a high-speed backplane, this module facilitates fast packet transfer rates of 4.4 μs, ensuring efficient data exchange in real-time applications.;
- 33. Robust Design: Designed to operate in a variety of environments, the 5069-IY4 meets IEC 60079-0 and IEC 60079-7 standards for use in Zone 2 classified areas, ensuring reliability in potentially explosive atmospheres.;
- 44. Compact and Durable: With a low footprint of 22mm, this module allows for higher density of I/O in a smaller space, making it ideal for space-constrained installations.;
- 55. Enhanced Module Functions: The module offers enhanced functions such as simple counting, events, scheduled output, and time stamping, enhancing its utility in complex control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Stock Status | STOCKED | Dimension Length | 13.462 |
Dimension Width | 18.796 | Lead Time | 5 |
Dimension Height | 5.08 | Quick Turnaround | false |
Preferred Availability | true | Repairable | NOT_REPAIRABLE |
IECEx temp code | T4 | ATEX temp code | T4 |
Isolation voltage | 250V (continuous), basic insulation type, 50V Functional isolation between SA power and input ports, No isolation between individual input ports | Input impedance | Voltage: >1 M?, Current: 90 ? typical, 70â¦110 ? range, RTD: >1 M?, Thermocouple/mvolt: >1 M? |
DIN rail | Compatible zinc-plated chromate-passivated steel DIN rail, You can use the EN50022 - 35 x 7.5 mm (1.38 x 0.30 in) | Slot width | 1 |
Shock | Operating: 30 G, Non operating: 50 G | Vibration | 5 G @ 10...500 Hz |
Weight | 0.24 | RTB keying | None |
MOD power passthrough, max | 9.55A @ 18...32V DC | MOD power | 75mA @ 18...32V DC |
SA power passthrough, max | 9.95A @ 18...32V DC | SA power | 100mA @ 18...32V DC |
Voltage variation | 10 ms interruption on MOD power port | Nonoperating temperature | -40 °C |
Radiated RF immunity | 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz | Surge transient immunity | ±1 kV line-line (DM) and ±2 kV line-earth (CM) on power ports, ±2 kV line-earth (CM) on shielded input ports |
Conducted RF immunity | 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz | Relative humidity | 5...95% noncondensing |
EFT/B immunity | ±4kV @ 5kHz on power ports, ±3kV @ 5kHz on shielded input ports | ESD immunity | 6 kV contact discharges, 8 kV air discharges |
Emissions | IEC 61000-6-4 | Operating temperature | 0 °C |
North American temperature code | T4 | Surrounding air temperature, max | 60 °C |
Enclosure type | None (open-style) | Depth | 105.42 mm |
Height | 144.57 mm | Width | 22 mm |
Thermocouple type/temperature range | Thermocouple Type B: 21â¦1820 °C, 68â¦3308 °F, 293â¦2093 °K, 528â¦3768 °R, Thermocouple Type C: 0â¦2320 °C, 32â¦4208 °F, 273â¦2593 °K, 492â¦4668 °R, Thermocouple Type D: 0â¦2320 °C, 32â¦4208 °F, 273â¦2593 °K, 492â¦4668 °R, Thermocouple Type E: -270â¦1000 °C, -454â¦18 | RTD sensor types/temperature range | 100, 200, 500, 1000 ? PT 385: -200...870 °C, -328...1598 °F, 73...1143 °K, 132...2058 °R, 100, 200, 500, 1000 ? PT 3916: -200...630 °C, -328...1166 °F, 73...903 °K, 132...1626 °R, 10 ? CU 247: -200...260 °C, -328...500 °F, 73...533 °K, 132...960 °R, |
CJC inputs | Two CJC sensors, 2 thermistors embedded in 5069-RTB14CJC-(screw or spring) RTB, -or- 2 thermistors wired to 5069-RTB18-(screw or spring) RTB, Thermistor type: Measurement specialties, Inc. 10K3A1A, (for thermocouple mode use only) | Resolution, RTD | (16 bit at 10 Hz notch filter) 3 wire mode: <7.9 m?/cnt in 1...500 ? mode, <15.8 m?/cnt in 2...1000 ? mode, <31.7 m?/cnt in 4...2000 ? mode, <63.4 m?/cnt in 8...4000 ? mode |
Resolution, voltage | 16 bit at 10 Hz notch filter: ±10.5V: <320 μV/count (15 bit plus sign bipolar), 0...10.5V: <160 μV/count (16 bit unipolar), 0...5.25V: <80 μ/V count (16 bit unipolar) | Input type, RTD | 100, 200, 500, 1000 ? platinum, alpha=385, 100, 200, 500, 1000 ? platinum, alpha=3916, 120 ? nickel, alpha=672, 100, 120, 200, 500 ? nickel, alpha=618, 10 ? copper 427 |
Open circuit detection time, nom | Voltage: + full scale, <2 s, Current: 4...20 mA range, <2 s, RTD: <2 s, Thermocouple / mvolt: + full scale, <10 s | Input notch filter (Hz) selections | 5, 10 (50/60 default), 15, 20, 50, 60, 100, 200, 500, 1000, 2500, 5000, 10000, 15625, 25000, 31250, 62500 |
Resolution, current | 16 bit at 10 Hz notch filter: 0...21 mA: <0.32 μA/count (16 bit), 3.6...21 mA: <0.27 μA/count (16 bit) | Insulation stripping length | 5069-RTB18-SPRING connections: 10 mm (0.39 in.), 5069-RTB18-SCREW connections: 12 mm (0.47 in.) |
HART handheld compliance | Add an external 250 ? resistor into the current loop for HART transmitter compliance | Wire impedance | 25 ? maximum for specified accuracy (3-wire RTD mode only) |
Resolution, thermocouple / millivolt | 16 bit at 10 Hz notch filter: <3.1 μV/cnt in ±100 mV mode | Data value during overload condition | Full scale, overrange flag, Data uncertain / data bad |
Calibration methods | Factory calibrated, User-performed (optional) | Input range, resistive | 1...500 ?, 2...1000 ?, 4...2000 ?, 8...4000 ? |
Input digital filter | First order lag, 0 msâ¦32,767 ms (32.767 s) | Normal mode noise rejection ratio | 65 dB @ 50/60 Hz, notch filter dependent |
Input type, thermocouple | B, C, D, E, J, K, L (TXK/XK), N, R, S, T | Notch filter at minimum RPI | 62.5 kHz (0.2 ms, 1 channel enabled) |
Input range, voltage | ±10V @ 0...10V, 0...5V | Overcurrent protection, max | Current mode: ±30 mA |
Common mode noise rejection ratio | 130 dB @ 50/60 Hz | Input range, thermocouple / millivolt | ±100 mV |
Thermocouple linearization | ITS-90 | Real-time channel sampling | Yes |
Scaling to engineering units | Yes | Onboard data alarming | Yes |
Input anti-aliasing filter cutoff frequency, typical | 500 Hz | Notch filter frequency at RPI of 2.5 ms, min | 10 khz |
Suitable for safety functions | No | Calibrated accuracy | Voltage: 0.100% full scale @ 25 °C Current: 0.100% full scale @ 25 °C RTD: 0.100% full scale @ 25 °C Thermocouple/mvolt: 0.100% full scale @ 25 °C |
Wire size | 5069-RTB18-SPRING and 5069-RTB14CJCSPRING connections: 0.5...1.5 mm2 (22...16 AWG) solid or stranded shielded copper wire rated at 105 °C (221 °F), or greater, 2.9 mm (0.11 in.), max diam including insulation, single wire connection only, 5069-RTB18-S | Inputs | 4 differential |
Input Total Unadjusted Error (TUE) | Voltage: 0.300% full Scale, Current: 0.400% full Scale, RTD: 0.300% full Scale, Thermocouple/mvolt: 0.300% full Scale | Accuracy drift with temperature | Voltage: 0.200% full scale, Current: 0.300% full scale, RTD: 0.200% full scale, Thermocouple/mvolt: 0.200% full scale |
Thermal dissipation, max | Voltage mode: 6.1 BTU/hr, Current mode: 7.2 BTU/hr, RTD mode: 7.2 BTU/hr, Thermocouple/mvolt: 6.1 BTU/hr | Indicators | 1 green/red module status indicator, 4 yellow/red I/O status indicators, 2 yellow/red CJC status indicators |
Power dissipation, max | Voltage mode: 1.8 W, Current mode: 2.1 W, RTD mode: 2.1 W, Thermocouple / mvolt mode: 1.8 W | Wire category | 2 - shielded input ports, 2 - power ports, 1 wire per terminal for each signal port |
Data format | IEEE 32-bit floating point | Common mode voltage | ±10V (Current mode and 3-wire RTD mode), ±2V (Voltage mode) |
Overvoltage protection, max | Voltage, current, RTD, and thermocouple/mV modes: ±30V DC | RTB torque | 5069-RTB18-SCREW, 5069-RTB14CJC-SCREW: 0.4 Nm (3.5 lbin) |
Module conversion method | Sigma-Delta, One 24-bit multiplexed ADC | Step response time to 63% of value | 7.5 ms (Notch filter 10 kHz) |
Scan time | Per channel: 625 μs, Per group: 2.5 ms | Module keying | Electronic keying via progming software |
RTD excitation current | 600 μA, 3 wire mode, 100 μA, 2 wire mode | Remote CJC sensor accuracy | Based on specified thermistor: ±0.3 °C |
Input range, current | 0...20mA @ 4....20mA | Local CJC sensor accuracy | ±0.3 °C |
Type of electric connection | Screw-/spring clA connection | Analogue outputs configurable | No |
Analogue inputs configurable | Yes | Output, voltage | No |
Output, current | No | Input, thermocouple | Yes |
Input, resistance thermometer | Yes | Input, resistor | Yes |
Input, voltage | Yes | Input, current | Yes |
Number of analogue inputs | 4 | Output Signal | Analog |
Number Of Channels | 4 Channel |
Specifications may be subject to change without notice
