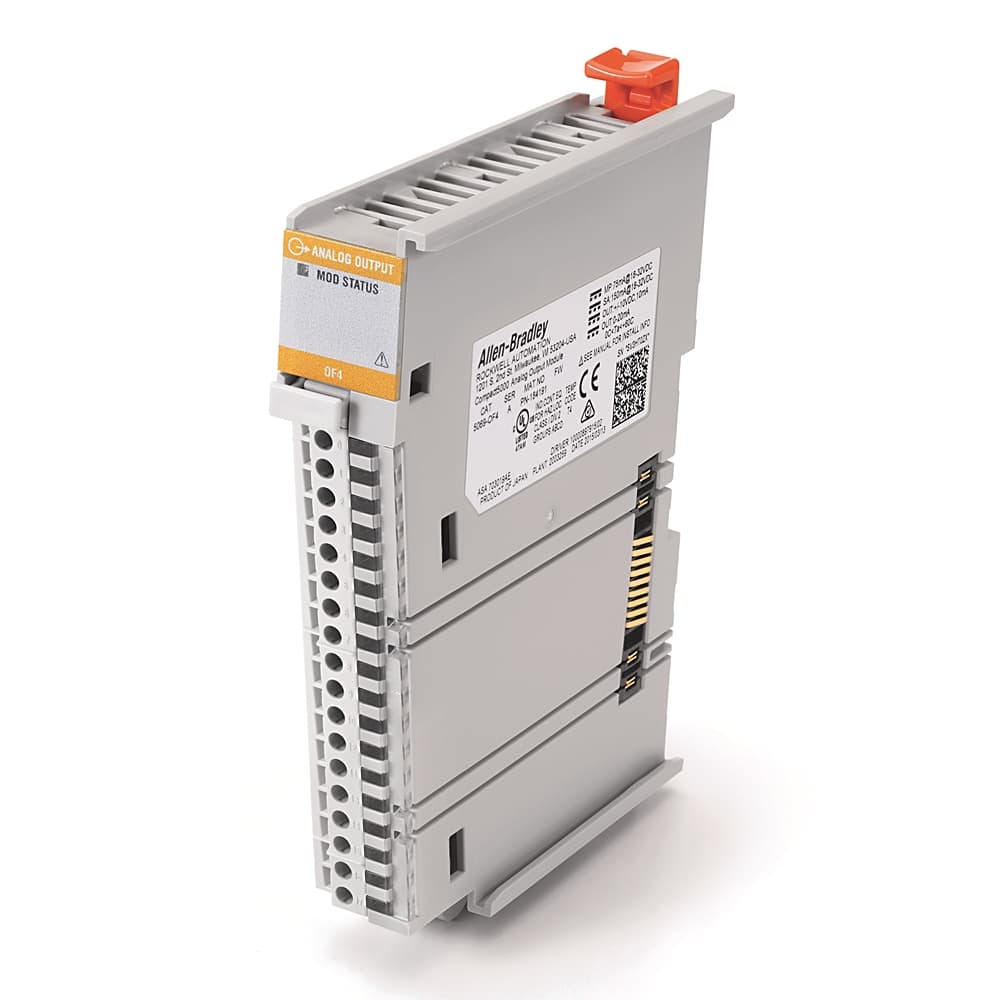

Product Model
5069-OF4
Selling Points
- 11. Calibrated Accuracy and Repeatability: The 5069-OF4 boasts calibrated accuracy of 0.10% full scale at 25°C for both voltage and current outputs, ensuring precise control in industrial processes. Additionally, it offers a repeatability of 0.05%, ensuring consistent performance over time.;
- 22. Compact Design: With dimensions of 5.4 x 0.9 x 4.2 inches (138 x 22 x 105 mm), the 5069-OF4 is designed to be compact and space-efficient, making it ideal for installations in tight spaces.;
- 33. Versatile Output Ranges: The module provides versatile output ranges, including ±10V, 0-10V, and 0-5V for voltage, and 0-20mA @ 4-20mA for current. This flexibility allows it to be used in a variety of applications.;
- 44. High-Speed Conversion Time: With a conversion time of 25 microseconds per channel, the 5069-OF4 ensures rapid and efficient data processing, making it suitable for real-time control systems.;
- 55. Factory and User Calibration Options: The module is factory calibrated, but it also offers the option for user-performed calibration. This flexibility ensures that the module can be tailored to specific application requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Stock Status | STOCKED | Dimension Length | 13.843 |
Dimension Width | 18.415 | Lead Time | 5 |
Dimension Height | 5.207 | Quick Turnaround | false |
Preferred Availability | true | Repairable | NOT_REPAIRABLE |
IECEx temp code | T4 | ATEX temp code | T4 |
Isolation voltage | 250V (continuous), basic insulation type, 50V Functional isolation between SA power and input ports, No isolation between individual input ports | DIN rail | Compatible zinc-plated chromate-passivated steel DIN rail, You can use the EN50022 - 35 x 7.5 mm (1.38 x 0.30 in) |
Slot width | 1 None | Shock | Operating: 30 G, Non operating: 50 G |
Vibration | 5 G @ 10...500 Hz | Weight | 0.249 |
RTB keying | None | Analog output ratings | ±10V DC @ 0...20mA per channel |
MOD power passthrough, max | 9.55A @ 18...32V DC | MOD power | 75mA @ 18...32V DC |
SA power passthrough, max | 9.95A @ 18...32V DC | SA power | 150mA @ 18...32V DC |
Voltage variation | 10 ms interruption on MOD power port | Nonoperating temperature | -40 °C |
Radiated RF immunity | 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz | Surge transient immunity | ±1 kV line-line (DM) and ±2 kV line-earth (CM) on power ports, ±2 kV line-earth (CM) on shielded output ports |
Conducted RF immunity | 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz | Relative humidity | 5...95% noncondensing |
EFT/B immunity | ±4kV @ 5kHz on power ports, ±3kV @ 5kHz on shielded output ports | ESD immunity | 6 kV contact discharges, 8 kV air discharges |
Emissions | IEC 61000-6-4 | Operating temperature | 0 °C |
North American temperature code | T4 | Surrounding air temperature, max | 60 °C |
Enclosure type | None (open-style) | Depth | 105.42 mm |
Height | 144.57 mm | Width | 22 mm |
Insulation stripping length | 5069-RTB18-SPRING connections: 10 mm (0.39 in.), 5069-RTB18-SCREW connections: 12 mm (0.47 in.) | Calibration methods | Factory calibrated, User-performed (optional) |
Output range, voltage | ±10V @ 0...10V, 0...5V | Output range, current | 0...20mA @ 4...20mA |
Conversion time | Per channel: 25 μs | Repeatability | 0.05 % |
Suitable for safety functions | False | Calibrated accuracy | Voltage: 0.10% full scale @ 25 °C Current: 0.10% full scale @ 25 °C |
Wire size | 5069-RTB18-SPRING removable terminal block: 0.5...1.5 mm2 (22...16 AWG) solid or stranded copper wire rated at 105 °C (221 °F), or greater, 2.9 mm (0.11 in.), max diam including insulation, 5069-RTB18-SCREW removable terminal block: 0.5...1.5 mm2 (22. | Resolution | 16 bit across ±10.5V - 320 μV/bit, 16 bit across 10.5V - 160 μV/bit, 16 bit across 5.25V - 80 μV/bit, 16 bit across 21 mA - 320 nA/bit |
Accuracy drift with temperature | Voltage: 0.30% full scale, Current: 0.50% full scale | Thermal dissipation, max | 11.3 BTU/hr |
Indicators | 1 green/red module status indicator, 4 yellow/red I/O status indicators | Power dissipation, max | 3.3 W |
Wire category | 2 - shielded input ports, 2 - power ports, 1 wire per terminal for each signal port | Data format | IEEE 32-bit floating point |
Short circuit detection | Voltage mode only - output electronically limited to 16 mA or less | Overvoltage protection, max | ±32V DC |
RTB torque | 5069-RTB18-SCREW RTB only: 0.4 Nm (3.5 lbin) | Drive capability | Voltage: 1000 ? minimum, Current: 500 ? maximum |
Open circuit detection | Current mode only | Outputs | 4 voltage or current |
Module conversion method | R-Ladder DAC, monotonicity with no missing codes | Step response time to 63% of value | Voltage mode: 18 μs max, Current mode: 1 ms max |
Scan time | Per group 0...3: 1 ms | Module keying | Electronic keying via progming software |
Inductive load, max | 1 mH (current mode only) | Capacitive load, max | 1 μF (voltage mode only) |
Type of electric connection | Screw-/spring clA connection | Analogue outputs configurable | True |
Analogue inputs configurable | False | Output, voltage | True |
Output, current | True | Input, thermocouple | False |
Input, resistance thermometer | False | Input, resistor | False |
Input, voltage | False | Input, current | False |
Number of analogue outputs | 4 None | Output Signal | Analog |
Number Of Channels | 4 Channel |
