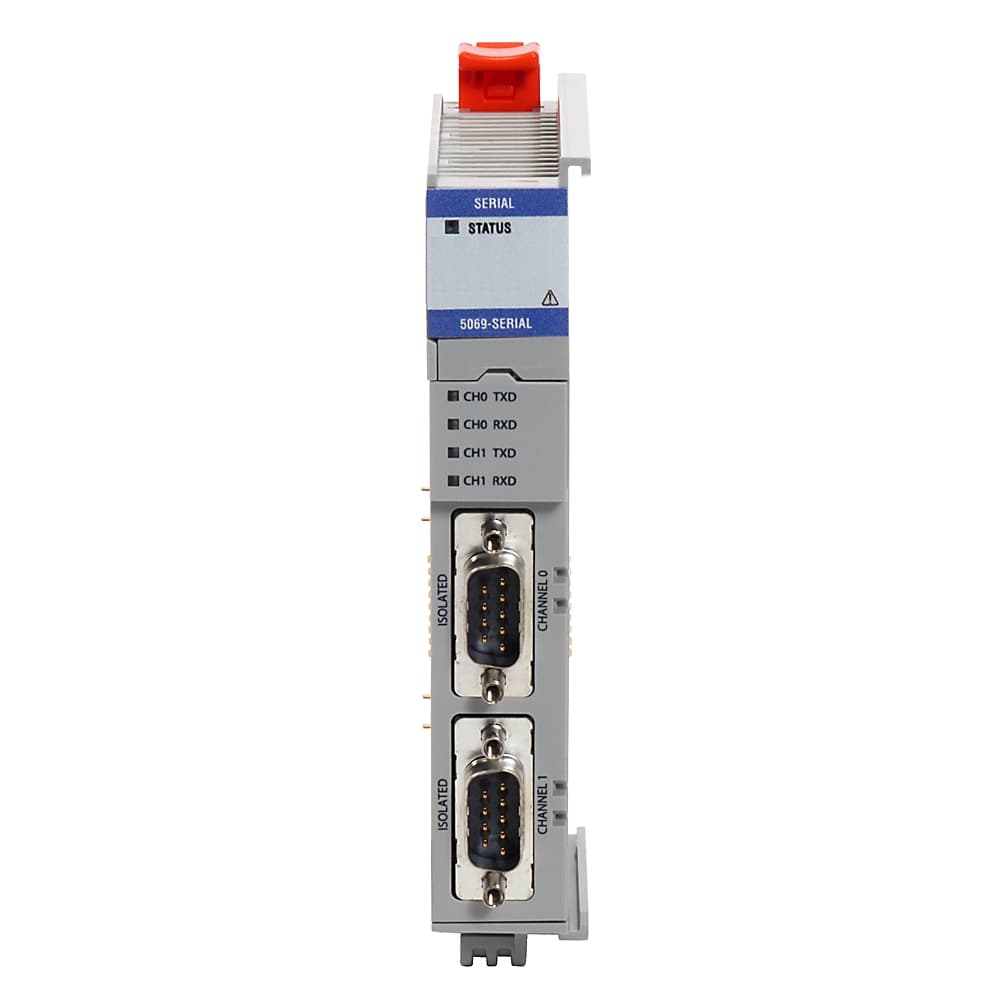

Product Model
5069-SERIAL
Selling Points
- 11. Versatile Communication Protocols: The 5069-SERIAL module supports RS232C, RS422, and RS485 protocols, ensuring compatibility with a wide range of industrial communication standards.;
- 22. Reliable Data Transmission: With its robust design, the module ensures reliable data transmission in harsh industrial environments, minimizing errors and downtime.;
- 33. Industrial Automation Compatibility: Designed for industrial automation, the 5069-SERIAL module is ideal for applications requiring precise and reliable serial communication.;
- 44. Wide Protocol Support: Compatible with Generic ASCII, Modbus RTU/ASCII, DF1, and DH485, making it a versatile solution for various industrial communication needs.;
- 55. Durable Construction: Built to withstand the rigors of industrial environments, the module features a durable construction that ensures long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Stock Status | STOCKED | Dimension Length | 13.97 |
Dimension Width | 18.542 | Lead Time | 5 |
Dimension Height | 5.334 | Quick Turnaround | false |
Preferred Availability | true | Repairable | NOT_REPAIRABLE |
Enclosure type | None (open-style) | SA power passthrough, max | 9.95A @ 0...32V DC |
MOD power passthrough, max | 9.55A @ 18...32V DC | MOD power | 100mA @ 18...32V DC |
Corrosion resistance classification | ISA S71.04 G2 | IECEx temp code | T4 |
North American temperature code | T4 | Nonoperating temperature | -40 °C |
Radiated RF immunity | 10V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10V/m with 200 Hz 50% Pulse 100% AM at 900 MHz, 10V/m with 200 Hz 50% Pulse 100% AM at 1890 MHz, 10V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz | Operating temperature | 0 °C <Ta <60 °C (32 °F <Ta <140 °F) |
Surge transient immunity | ±1 kV line-line (DM) and ±2 kV line-earth (CM) on power ports, ±2 kV line-earth (CM) on shielded output ports | Conducted RF immunity | 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz |
Shock | Operating: 30 G, Non operating: 50 G | Relative humidity | 5...95% noncondensing |
EFT/B immunity | ±4kV @ 5kHz on power ports, ±3kV @ 5kHz on shielded output ports | ESD immunity | 6 kV contact discharges, 8 kV air discharges |
Vibration | 5 G @ 10...500 Hz | Emissions | IEC 61000-6-4 |
Surrounding air temperature, max | 60 °C | DIN rail | Compatible zinc-plated chromate-passivated steel DIN rail, You can use the EN50022 - 35 x 7.5 mm (1.38 x 0.30 in) |
Weight | 0.261 | Width | 22 mm |
Serial input voltage signal | 3...25V DC regarding signal ground (SG) 0, asserted, ON, space, active, -3...-25V DC regarding signal ground (SG) 1, disasserted, OFF, mark, inactive | Indicators | 1 green/red module status indicator, 1 transmit data (TXD) and 1 receive data (RXD) yellow/red status indicator per channel |
Handshaking | RTS/CTS hardware handshake always enabled, RTS/CTS can be controlled by the user | Inputs | 2 full-duplex (RS-232, RS-422), 2 half-duplex (RS-485) |
Operating mode | Generic ASCII, Modbus RTU, Modbus ASCII | Serial port connectors | Two DB-9 male with pin |
Transmit transaction ID | 0...255 | RTB keying | None |
ATEX temp code | T4 | Slot width | 1 |
Supporting protocol for SafetyBUS p | No | Supporting protocol for PROFIsafe | No |
Supporting protocol for PROFINET IO | No | Supporting protocol for PROFINET CBA | No |
Supporting protocol for Foundation Fieldbus | No | Supporting protocol for AS-Interface Safety at Work | No |
Supporting protocol for INTERBUS-Safety | No | Supporting protocol for SERCOS | No |
With potential separation | No | Supporting protocol for SUCONET | No |
Supporting protocol for Data-Highway | No | Supporting protocol for Modbus | No |
Supporting protocol for KNX | No | Supporting protocol for INTERBUS | No |
Supporting protocol for CAN | No | Supporting protocol for PROFIBUS | No |
Supporting protocol for ASI | No | Supporting protocol for LON | No |
Isolation voltage | 250V (continuous), basic insulation type, SA and MOD power to backplane, 250V (continuous), basic insulation type, backplane to communication channels, 250V (continuous), basic insulation type, backplane to chassis ground, 250V (continuous), basic insulat | Module keying | None |
Wire category | 2 - power ports, 2 - communication ports | Power dissipation, max | 2.8 W |
Thermal dissipation, max | 9.6 btu/h | Type of data transmission | Module rack extension |
Supporting protocol for EtherNet/IP | Yes | Supporting protocol for DeviceNet Safety | No |
IO link master | No | Redundancy | No |
Supporting protocol for other bus systems | No | Supporting protocol for DeviceNet | No |
Supporting protocol for TCP/IP | No | With optical interface | No |
Number Of Channels | 2 | Isolation | 250V(cont);No isolation |
Height | 137.85 mm | Depth | 105.42 mm |
Communication | RS232C & RS422 (Full Duplex), RS485 (Half Duplex) |
