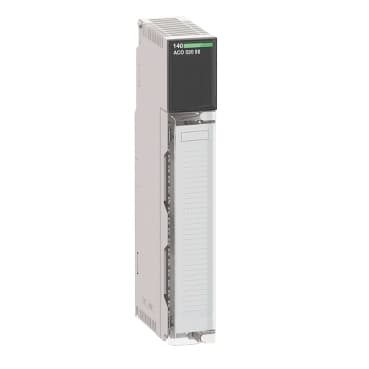

schneider 140ACO13000

Selling Points

  • 1Precise Analog Output: The 140ACO13000 offers 8 analog output channels with an absolute accuracy error of just +/- 0.2% of full scale at 25°C.
  • 2Versatile Voltage Range: Compatible with a wide range of devices, it operates within a loop voltage of 6 to 30 V DC.
  • 3Fast Update Time: Ensures rapid response to control signals with an update time of just 5 ms.
  • 4Comprehensive Fault Monitoring: Equipped with local signaling indicators including LEDs for channel faults, activation, external faults, and bus communication status.
  • 5Energy-Efficient Design: Features a low power dissipation of 5 W, ensuring efficient power management in industrial automation systems.
Product Details
140ACO13000
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon Quantum automation platform
Product or Component Type
Analogue output module
Analogue output number
8
Addressing requirement
8 output words
Loop voltage
6…30 V DC
Maximum voltage drop
<30 V 25 mA
Analogue output range
0...20 mA 0...20000 counts<br />0...25 mA 0...25000 counts<br />4...20 mA 0...16000 counts<br />4...20 mA 0...4095 counts
Absolute accuracy error
+/- 0.2 % of full scale 77 °F (25 °C)
Linearity
+/- 12 µA 4...20 mA 0...4095 counts<br />+/- 4 µA 0...20 mA 0...20000 counts<br />+/- 4 µA 0...25 mA 0...25000 counts<br />+/- 4 µA 4...20 mA 0...16000 counts
Accuracy drift according to temperature
0.004 % of full scale/°C typical<br />0.007 % of full scale/°C maximum
Isolation between channels and bus
1780 V for 1 minute AC
Update time
5 ms
Setting time
3.2 ms to +/-0.1% of the final value<br />1.6 ms to 5% of the final value
Fault type
Open circuit 4...20 mA
Bus current requirement
550 mA
Maximum power dissipation in W
5 W
External power requirement
6...30 V
Marking
CE
Local signalling
for bus communication is present (Active) 1 LED (green)<br /> for external fault 1 LED (red)<br /> for channel is turned on 8 LEDs (green)<br /> for channel fault 8 LEDs (red)
Module format
Standard
Net Weight
0.7 lb(US) (0.3 kg)
Product Certifications
cUL<br />FM Class 1 Division 2
Standards
UL 508<br />CSA C22.2 No 142
Resistance to electromagnetic fields
9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Relative Humidity
95 % without condensation
Operating altitude
<= 16404.2 ft (5000 m)

Specifications may be subject to change without notice
