Product Model

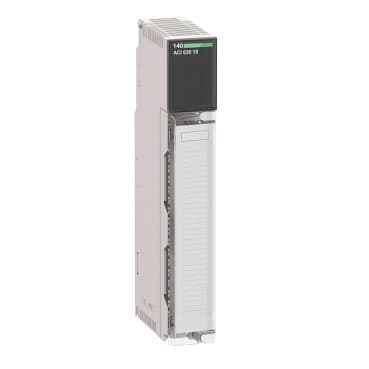

140ARI03010C
Selling Points
- 113-bit resolution and 0.1°C absolute accuracy ensure precise temperature monitoring.
- 21780 V AC and 2500 V DC isolation between channels and bus for signal integrity.
- 3Local signaling indicators and fault detection for broken wires and overtracking scales.
- 4Low power dissipation of 1 W, reducing heat generation and energy consumption.
- 5Supports Pt 100, Pt 200, Ni 100, and Ni 200 temperature probes across various temperature ranges.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Quantum automation platform | Product or Component Type | Analogue input module |
Analogue input number | 8 | input type | Differential |
Addressing requirement | 9 input words | Analogue input type | Temperature probe - 100...450 °C Pt 100, Pt 200, Pt 500, Pt 1000<br />Temperature probe - 200...850 °C Pt 100, Pt 200, Pt 500, Pt 1000<br />Temperature probe - 60...180 °C Ni 100, Ni 200, Ni 500, Ni 1000<br />Temperature probe 0.5 mA Ni 100, Ni 200, Ni 500, Ni 1000<br />Temperature probe 2.5 mA Pt 100, Pt 200, Ni 100, Ni 200 |
Analogue input resolution | 13 bits | Input impedance | >= 10 MOhm |
Absolute accuracy error | 0.1 °C | Linearity error | +/- 0.01 % full scale<br />+/- 0.5 °C |
Accuracy drift according to temperature | +/- 0.5 °C 77 °F (25 °C)<br />+/- 0.9 °C 32…140 °F (0…60 °C) | Isolation between channels and bus | 1780 V AC 47...63 Hz 60 s<br />2500 V DC 60 s |
Isolation between channels | 300 Vrms AC | Update time | 1200 ms 3 wires<br />640 ms 2 wires/4 wires |
Fault type | Broken wire<br />Overtacking scale | marking | CE |
Local signalling | for bus communication is present (Active) 1 LED (green)<br /> for external fault 1 LED (red)<br /> for channel is turned on 8 LEDs (green)<br /> for channel fault 8 LEDs (red) | Bus current requirement | 200 mA |
Power dissipation in W | 1 W | Module format | Standard |
Net Weight | 0.7 lb(US) (0.3 kg) | Protective treatment | Conformal coating Humiseal 1A33 |
Standards | UL 508<br />CSA C22.2 No 142 | Product Certifications | FM Class 1 Division 2<br />cUL |
Resistance to electrostatic discharge | 4 kV contact IEC 801-2<br />8 kV on air IEC 801-2 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3 |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Relative Humidity | 95 % without condensation | Operating altitude | <= 16404.2 ft (5000 m) |
Specifications may be subject to change without notice
