Product Model

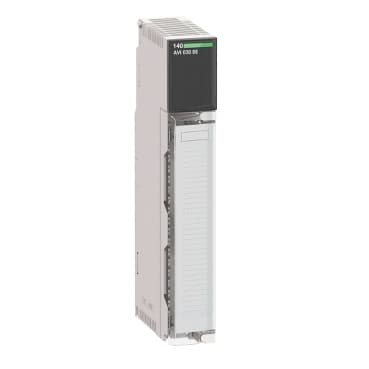

140AVI03000
Selling Points
- 1Precision Analog Input: Features 8 differential analog inputs with 16-bit resolution for accurate measurements.
- 2Reliable Performance: Boasts a low accuracy drift of 0.0015% and high insulation between channels and buses.
- 3Versatile Connectivity: Supports various input types including unipolar voltage (0...5 V, 0...10 V), unipolar current (0...20 mA), and bipolar voltage/current.
- 4Efficient Design: Consumes only 2.2 W of power, making it energy-efficient for industrial use.
- 5Quick Diagnosis: Equipped with 9 LEDs for easy fault detection and module status monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Quantum automation platform | Product or Component Type | Analogue input module |
Type of filter | Single pole low pass - 3 dB at 847 Hz +/- 20 % | Analogue input number | 8 |
input type | Differential | Addressing requirement | 9 input words |
Analogue input type | Bipolar current 20 mA<br />Bipolar voltage +/- 10 V<br />Bipolar voltage +/- 5 V<br />Unipolar current 0...20 mA<br />Unipolar voltage 0...10 V<br />Unipolar voltage 0...5 V | Analogue input resolution | 16 bits +/- 10 V<br />16 bits +/- 5 V<br />16 bits 0...10 V<br />16 bits 0...20 mA<br />16 bits 0...5 V<br />16 bits 20 mA |
Linear measuring range | (input range) x 1.024 mA<br />(input range) x 1.024 V | Absolute maximum input | 50 V DC<br />25 mA |
Input impedance | > 20 Ohm voltage<br />250 MOhm +/- 0.03 % | Absolute accuracy error | +/- 0.03 %<br />+/- 0.05 % of full scale maximum |
Linearity error | +/- 0.008 % | Accuracy drift according to temperature | +/- 0.0015 % of full scale/°C<br /><= 0.004 % of full scale /°C |
Common mode rejection | > - 80 dB 60 Hz | Isolation between channels and bus | 500 Vrms AC 60 s<br />750 V DC |
Isolation between channels | 135 Vrms AC<br />200 V DC | Update time | 10 ms |
Fault type | Broken wire 4...20 mA<br />Overtacking scale 1...5 V | marking | CE |
Local signalling | for bus communication is present (Active) 1 LED (green)<br /> for external fault 1 LED (red)<br /> for channel is turned on 8 LEDs (green)<br /> for channel fault 8 LEDs (red) | Bus current requirement | 280 mA |
Power dissipation in W | 2.2 W | Module format | Standard |
Net Weight | 0.7 lb(US) (0.3 kg) | Standards | UL 508<br />CSA C22.2 No 142 |
Product Certifications | FM Class 1 Division 2<br />cUL | Resistance to electrostatic discharge | 4 kV contact IEC 801-2<br />8 kV on air IEC 801-2 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3 | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Relative Humidity | 95 % without condensation |
Operating altitude | <= 16404.2 ft (5000 m) |
Specifications may be subject to change without notice
