Product Model

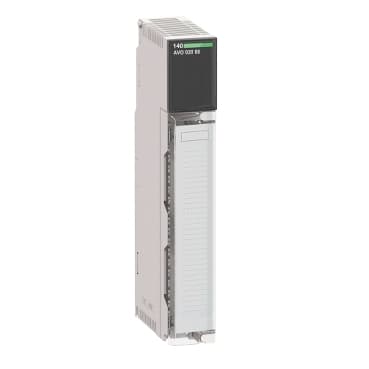

140AVO02000C
Selling Points
- 1High-Performance Analog Output Module: The 140AVO02000C offers precise 12-bit resolution analog outputs.
- 24-Channel Outputs: Designed for multiple applications with four independent analog outputs.
- 32-Year Warranty: Ensures reliability and peace of mind with a comprehensive two-year warranty.
- 4Versatile Voltage Range: Supports bipolar voltage up to +/- 10 V and unipolar voltage up to 10 V.
- 5Quick Update Time: Features a fast update time of just 3 ms for efficient operation in industrial processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Quantum automation platform | Product or Component Type | Analogue output module |
Analogue output number | 4 | Addressing requirement | 4 output words |
Analogue output range | +/- 10 V >= 1000 Ohm bipolar voltage<br />+/- 5 V >= 500 Ohm bipolar voltage<br />0...10 V >= 1000 Ohm unipolar voltage<br />0...5 V >= 500 Ohm unipolar voltage | Analogue output resolution | 12 bits |
Analogue output current | -10…10 mA | Source resistance | 0.1 Ohm |
Maximum cable distance between devices | 1312.3 ft (400 m) | Absolute accuracy error | +/- 0.15 % of full scale 77 °F (25 °C) |
Linearity | +/- 1 LSB | Accuracy drift according to temperature | 0.003 % of full scale/°C unipolar<br />0.004 % of full scale/°C bipolar<br />0.005 % of full scale/°C maximum unipolar<br />0.007 % of full scale/°C maximum bipolar |
Isolation between channels | 500 V for 1 minute 47...63 Hz AC | Isolation between channels and bus | 780 V for 1 minute AC |
Update time | 3 ms | Setting time | 700 µs to +/- 0.1 % of the final value maximum |
Bus current requirement | 700 mA | Maximum power dissipation in W | 4.5 W |
Associated fuse rating | 0.063 mA 3 AG fast blow 250 V | marking | CE |
Local signalling | for bus communication is present (Active) 1 LED (green)<br /> for external fault 1 LED (red)<br /> for channel is turned on 4 LEDs (green)<br /> for channel fault 4 LEDs (red) | Module format | Standard |
Net Weight | 0.7 lb(US) (0.3 kg) | Protective treatment | Conformal coating Humiseal 1A33 |
Product Certifications | FM Class 1 Division 2<br />cUL | Standards | CSA C22.2 No 142<br />UL 508 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3 | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Relative Humidity | 95 % without condensation |
Operating altitude | <= 16404.2 ft (5000 m) |
Specifications may be subject to change without notice
