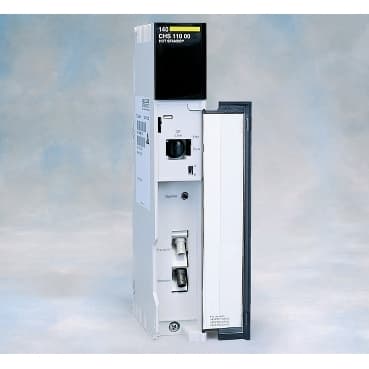

Schneider Electric 140CHS11000 Hot Standby I/O Module

Selling Points

1Supports 10 Mbit/s transmission rate for rapid data exchange.
2Utilizes fiber optic technology with a 3-meter transmission support medium for reliable long-distance communication.
3Features a switching time of 13 to 48 milliseconds for seamless transition between primary and standby modules.
4Includes LEDs for communication error, module readiness, control process status, and standby module status.
5Has a minimal bus current requirement of 700 mA, ensuring efficient use of power and resources within the automation system.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Range of Product	Modicon Quantum automation platform	Product or Component Type	Hot standby module
Software designation	Concept >= V2.0<br />ProWORX 32 NxT V2.0	Product Compatibility	All 140CPU43412A/534 with IEC language<br />All legacy 140CPU with LL984 language
Input/output type	Sy/Max (remote I/O only)<br />Quantum<br />800 Series	Transmission Rate	10 Mbit/s
Transmission support medium	Fiber optic 9.8 ft (3 m)	Switching time	13...48 ms
Electrical connection	1 connector RJ45 for fiber optic receiver<br />1 connector RJ45 for fiber optic transmitter	Local signalling	for module in standby 1 LED (amber)<br /> for communication with I/O module 1 LED (green)<br /> for control process 1 LED (green)<br /> for ready module 1 LED (green)<br /> for communication error 1 LED (red)
Bus current requirement	700 mA	Module format	Standard
Net Weight	2.34 lb(US) (1.06 kg)	RFI immunity	27…1000 MHz 9.1 V/m (10 V/m) IEC 60801-3
Protective treatment	Conformal coating Humiseal 1A33	Resistance to electrostatic discharge	4 kV contact<br />8 kV air
Ambient Air Temperature for Operation	32…140 °F (0…60 °C)	Ambient Air Temperature for Storage	-40…185 °F (-40…85 °C)
Relative Humidity	95 % without condensation	Operating altitude	<= 16404.2 ft (5000 m)

Specifications may be subject to change without notice
