Product Model

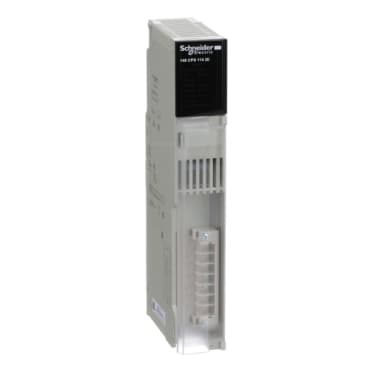

140CPS11420
Selling Points
- 1Versatile Input Voltages: Accepts both 115V and 230V input voltages for flexibility in various industrial environments.
- 2Advanced Safety Features: Includes internal overvoltage and overload protection, ensuring reliable operation in demanding conditions.
- 3Compact Design: Features a standard module format with a manageable net weight, making it easy to integrate and handle.
- 4Environmental Resilience: Resistant to electrostatic discharge (4 kV contact, 8 kV on air) and electromagnetic fields (9.14 V/m up to 2000 MHz).
- 5Compliance with Industry Standards: Compliant with UL 508 and CSA C22.2 No 142 standards, ensuring adherence to rigorous safety and performance criteria.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Quantum automation platform | Product or Component Type | Power supply module |
power supply type | Summable or standalone | Input voltage | 115 V 93...132 V) AC 47…63 Hz<br />230 V 170...276 V) AC |
Input current | 1300 mA 115 V<br />750 mA 230 V | Inrush current | 19 A 230 V<br />38 A 115 V |
Rated power in VA | 130 VA | Associated fuse rating | 2 A, slow-blow |
Harmonic distortion | <= 10 % of fundamental rms value | Output voltage | 5.1 V DC |
Power supply output current | 11 A 140 °F (60 °C) standalone<br />20 A 140 °F (60 °C) summable | Output overvoltage protection | Internal |
Output overload protection | Internal | Power dissipation | 6 + (1.5 x Iout) where Iout is in A |
Alarm output | 1 NC 6 A 220 V power supply fault | Local signalling | for power (PWR OK) 1 LED (green) |
marking | CE | Module format | Standard |
Net Weight | 1.43 lb(US) (0.65 kg) | Standards | UL 508<br />CSA C22.2 No 142 |
Product Certifications | cUL | Resistance to electrostatic discharge | 4 kV contact IEC 801-2<br />8 kV on air IEC 801-2 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3 | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Relative Humidity | 95 % without condensation |
Operating altitude | <= 16404.2 ft (5000 m) |
Specifications may be subject to change without notice
