INDCTL Logo
schneiderPLC/PAC and Controllers
Product Model

140CRA21210C

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

35648

In Stock
Last updated: 2025/4/17
View Specifications

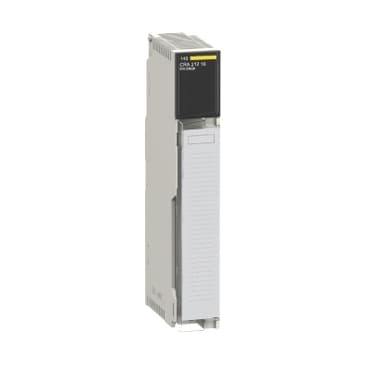

schneider 140CRA21210C

Selling Points

  • 1Redundant Port for Enhanced Reliability: The 140CRA21210C boasts a single redundant port, ensuring continuous operation even in case of a primary port failure.
  • 2Wide Voltage Compatibility: Operates within a wide voltage range of 85 to 276 V AC, making it adaptable to various industrial settings.
  • 3Modicon Quantum Compatibility: Designed for use with Modicon Quantum systems, enhancing integration and performance in complex automation setups.
  • 4Robust Connectivity Options: Equipped with multiple connectors including RJ45, SUB-D 9, and LC (single mode fiber optic) for diverse interconnection needs.
  • 5High-Quality Diagnostics: Features diagnostics capabilities including checksum and RAM address monitoring for robust system health and reliability.
Product Details
140CRA21210C
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon Quantum automation platform
Product or Component Type
DIO drop interface
Number of port
1 single
[Us] rated supply voltage
115/230 V AC
Supply voltage limits
85…276 V
Supply frequency
47...63 Hz
Maximum supply current
0.2 A 115 V<br />0.4 A 230 V
Inrush current
10 A 115 V<br />20 A 230 V
Rated power in VA
50 VA
Associated fuse rating
1.5 A
Output voltage
5.1 V
Nominal output current
3 A
Minimum load current
0 A
Short-circuit protection
With
Output overvoltage protection
With
I/O words
30 I/32 O
Typical backplanes
4 positions<br />3 positions<br />16 positions<br />2 positions<br />6 positions<br />10 positions
Diagnostics startup
RAM<br />RAM address<br />Checksum
Diagnostics run time
RAM address<br />Checksum<br />RAM
Power dissipation in W
11 W
Connections - Terminals
Terminal block, 7 poles
Module format
Standard
Resistance to electrostatic discharge
4 kV contact IEC 801-2<br />8 kV on air IEC 801-2
Resistance to electromagnetic fields
9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Relative Humidity
95 % without condensation
Operating altitude
<= 16404.2 ft (5000 m)
Protective treatment
Conformal coating Humiseal 1A33<br />TC
Standards
UL 508
Product Certifications
CSA Class 1 Division 2<br />C-tick<br />UL<br />GOST<br />DNV

Specifications may be subject to change without notice
