Product Model

140CRA21220C

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

35650

In Stock
Last updated: 2025/4/17
View Specifications

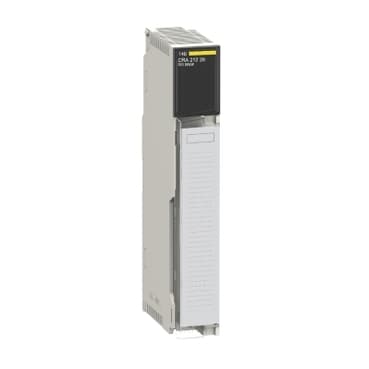

schneider 140CRA21220C

Selling Points

  • 1High-Quality Materials: Made from durable, high-quality materials for long-lasting performance.
  • 2Advanced Design: Features an advanced design that enhances functionality and reliability.
  • 3Versatile Application: Suitable for a wide range of applications, including industrial and commercial use.
  • 4Easy Installation: Designed for easy installation, reducing setup time and effort.
  • 5Enhanced Safety Features: Equipped with enhanced safety features to ensure secure operation.
Product Details
140CRA21220C
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon Quantum automation platform
Product or Component Type
DIO drop interface
Number of port
2 redundant
[Us] rated supply voltage
24 V DC
Supply voltage limits
20…30 V
Maximum supply current
1.6 A 24 V
Inrush current
30 A 24 V
Maximum buffer time
1 ms
Associated fuse rating
2.5 A
Output voltage
5.1 V
Nominal output current
3 A
Minimum load current
0 A
Short-circuit protection
With
Output overvoltage protection
With
I/O words
30 I/32 O
Typical backplanes
2 positions<br />16 positions<br />4 positions<br />10 positions<br />3 positions<br />6 positions
Diagnostics startup
RAM address<br />RAM<br />Checksum
Diagnostics run time
RAM<br />RAM address<br />Checksum
Power dissipation in W
11 W
Connections - Terminals
Terminal block, 7 poles
Module format
Standard
Resistance to electrostatic discharge
4 kV contact IEC 801-2<br />8 kV on air IEC 801-2
Resistance to electromagnetic fields
9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Relative Humidity
95 % without condensation
Operating altitude
<= 16404.2 ft (5000 m)
Protective treatment
TC<br />Conformal coating Humiseal 1A33
Standards
UL 508
Product Certifications
CSA Class 1 Division 2<br />GOST<br />UL<br />C-tick<br />DNV

Specifications may be subject to change without notice
