schneiderPLC/PAC and Controllers
Product Model

140CRA31908

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

35653

In Stock
Last updated: 2025/4/17
View Specifications

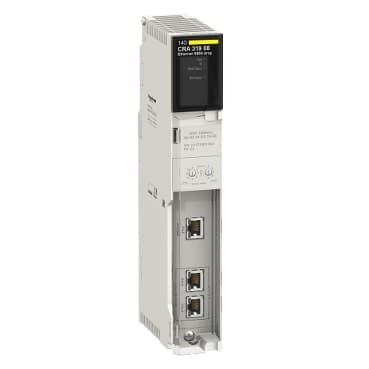

schneider 140CRA31908

Selling Points

  • 1Remote I/O (RIO) Drop Adapter: Efficiently collects and publishes input data to remote I/O head adaptors.
  • 2Dual Communication Protocols: Supports Ethernet/IP and Modbus TCP for seamless integration.
  • 3Durable Design: Rated for +32...+140°F / 0...+60°C ambient temperature, ensuring reliable operation.
  • 4LED Indicators: Provides real-time status monitoring with 1 green/red LED for module status, 1 green LED for RUN, and 1 red LED for I/O.
  • 5Compliant with Standards: Meets CSA C22.2 No. 142, EN 55011, IEC 61000-4-16, UL508, CE, and C-Tick standards.
Product Details
140CRA31908
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon Quantum
Product or Component Type
Ethernet RIO drop adaptor
Number of port
3
Integrated connection type
Ethernet IP/Modbus TCP service port<br />Ethernet IP/Modbus TCP device network
communication port protocol
Ethernet IP/Modbus TCP
Product destination
Modicon Quantum
Device Application
To provide the ability for a M580 system to control Modicon S908 coaxial bus
Communication Service
The input data are collected and published to the remote I/O head adaptor<br />Output modules are updated with the data received from remote I/O head adaptor
Topology
Daisy chain loop<br />S908 bus
Local signalling
for module status (Mod Status) 1 LED (green/red)<br /> for network communication status (Net Status) 1 LED (green/red)<br /> for RUN 1 LED (green)<br /> for I/O 1 LED (red)
Product Compatibility
BMEP586040<br />BMEH584040<br />BMEP585040<br />BMEH586040<br />BMEP584040
Environmental characteristic
Standard environment<br />Hazardous location class I division 2 EN/IEC 61131-1
Width
6.6 in (167 mm)
Height
2.0 in (50 mm)
Net Weight
1.221 lb(US) (0.554 kg)
Product Certifications
UL 508<br />CE<br />C-tick
Standards
IEC 61000-4-16<br />CSA C22.2 No 142<br />EN 55011
IP degree of protection
IP20 conforming to EN 61131-2<br />IP20 conforming to IEC 60527
Overvoltage category
Class I EN 61131-2
Ambient air temperature for operation
32…140 °F (0…60 °C) IEC 60068-2-2<br />32…140 °F (0…60 °C) IEC 60068-2-2
Ambient air temperature for storage
-40…185 °F (-40…85 °C) IEC 60068-2-2<br />-40…185 °F (-40…85 °C) IEC 60068-2-2
Vibration resistance
3.5 mm constant amplitude 0.5…8.4 Hz)EN 61131-2<br />1 gn constant acceleration 8.4…150 Hz)EN 61131-2
Operating altitude
6561.68 ft (2000 m)
Maximum altitude transport
9842.5 ft (3000 m)
Relative humidity
93 % conforming to IEC 60068

Specifications may be subject to change without notice
