Product Model

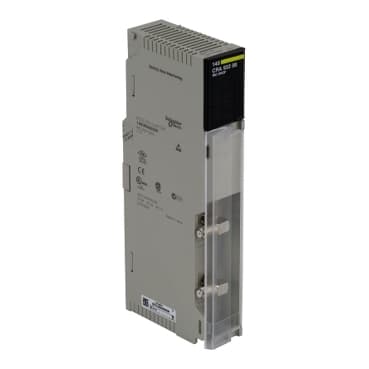

140CRA93200C
Selling Points
- 1High-capacity power distribution for large-scale industrial applications.
- 2Advanced thermal management for optimal performance in harsh environments.
- 3Compact design with enhanced modularity for easy installation and maintenance.
- 4Compliance with international safety standards for reliable operation.
- 5Robust construction with durable materials for extended lifespan.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Quantum automation platform | Product or Component Type | RIO drop adaptor module |
Product Compatibility | Quantum | Maximum Number of I/O Expansion Module | 27 |
Type of cable | 75 Ohm coaxial | Transmission Rate | 1544 Mbit/s |
Dynamic range | 35 dB | Isolation voltage | 500 V DC coaxial center and ground |
Electrical connection | 2 female connectors F, elbowed with redundant cable | Diagnostics startup | RAM address/data<br />Power up and runtime<br />Executive checksum |
Power dissipation in W | 3.8 W 2 channels | Bus current requirement | 750 mA 2 channels |
Module format | Standard | Protective treatment | Conformal coating Humiseal 1A33 |
Standards | UL 508<br />CUL<br />CSA C22.2 No 142 | Resistance to electrostatic discharge | 4 kV contact IEC 801-2<br />8 kV on air IEC 801-2 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3 | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Relative Humidity | 95 % without condensation |
Operating altitude | <= 16404.2 ft (5000 m) |
Specifications may be subject to change without notice
