Product Model

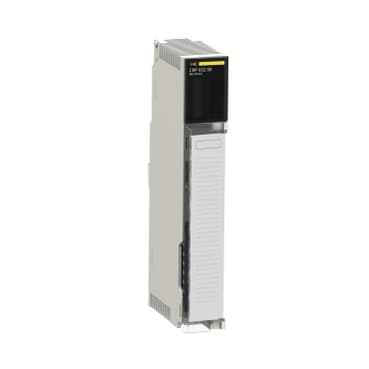

140CRP93200C
Selling Points
- 1Features two connectors with redundant cable support for increased dependability and flexibility.
- 2Transmits data at 1544 Mbit/s, ensuring efficient communication in industrial settings.
- 3Offers an isolation voltage of 500 V DC, ensuring safe and dependable operation.
- 4Seamlessly integrates with Symax and Quantum 200, 500, and 800 series equipment.
- 5Backed by a 2-year warranty, providing peace of mind for your industrial automation needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Quantum automation platform | Product or Component Type | RIO head-end adaptor module |
Product Compatibility | Symax (any mix)<br />Quantum 200/500/800 series | Maximum drops/network | 31 |
I/O words/drop | 64 I/64 O | Type of cable | 75 Ohm coaxial |
Transmission Rate | 1544 Mbit/s | Dynamic range | 35 dB |
Isolation voltage | 500 V DC coaxial center and ground | Electrical connection | 2 female connectors F, elbowed with redundant cable |
Diagnostics startup | Power up<br />LAN controller check<br />Memory check | Power dissipation in W | 3 W 2 channels |
marking | CE | Bus current requirement | 750 mA 2 channels |
Module format | Standard | Protective treatment | Conformal coating Humiseal 1A33 |
Product Certifications | FM Class 1 Division 2 | Standards | UL 508<br />CUL<br />CSA C22.2 No 142 |
Resistance to electrostatic discharge | 4 kV contact IEC 801-2<br />8 kV on air IEC 801-2 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3 |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Relative Humidity | 95 % without condensation | Operating altitude | <= 16404.2 ft (5000 m) |
Specifications may be subject to change without notice
