Product Model

140DAI75300C

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

25877

In Stock
Last updated: 2025/4/26
View Specifications

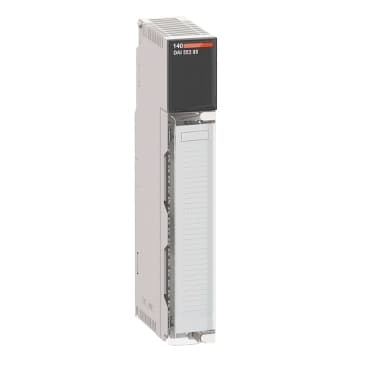

schneider 140DAI75300C

Selling Points

  • 1High-Performance Automation: Designed for Modicon Quantum automation platforms, ensuring seamless integration and efficient operation.
  • 232 Discrete Inputs: Supports up to 32 discrete inputs, making it versatile for various industrial applications.
  • 3230 V AC Compatibility: Operates at 230 V AC, suitable for a wide range of industrial environments.
  • 42-Year Warranty: Comes with a comprehensive 2-year warranty from Schneider Electric for peace of mind.
  • 5Standard Module Format: Available in standard module format, ensuring easy installation and compatibility with existing systems.
Product Details
140DAI75300C
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon Quantum automation platform
Product or Component Type
VAC discrete input modules
Software name
Concept<br />ProWORX 32<br />Unity Pro
Discrete input number
32
Group of channels
4
Addressing requirement
2 input words
Discrete input voltage
230 V AC
Input current
11.5 mA 57...63 Hz<br />9.7 mA 47...53 Hz
Voltage state 1 guaranteed
165...264 V AC 57...63 Hz<br />175...264 V AC 47...53 Hz
Voltage state 0 guaranteed
0...40 V AC 57...63 Hz<br />0...40 V AC 47...53 Hz
Input impedance
26500 Ohm capacitive 57...63 Hz<br />31800 Ohm capacitive 47...53 Hz
Network frequency limits
47…63 Hz
Maximum leakage current
2.6 mA
Absolute maximum input
264 V continuous<br />312 V 10 s<br />400 V 1 cycle
Response Time
4.9...0.75 ms x line cycle Off-On<br />7.3...12.3 ms On-Off
Isolation between group
1780 Vrms for 1 minute
Isolation between group and bus
1780 Vrms for 1 minute
Bus current requirement
250 mA
Maximum power dissipation in W
5 W
Local signalling
for bus communication is present (Active) 1 LED (green)<br /> for external fault detected (F) 1 LED (red)<br /> for input status 32 LEDs (green)
marking
CE
Module format
Standard
Net Weight
0.7 lb(US) (0.3 kg)
Protective treatment
Conformal coating Humiseal 1A33
Standards
UL 508<br />CSA C22.2 No 142
Product Certifications
FM Class 1 Division 2<br />cUL
Resistance to electrostatic discharge
4 kV contact IEC 801-2<br />8 kV on air IEC 801-2
Resistance to electromagnetic fields
9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Relative Humidity
95 % without condensation
Operating altitude
<= 16404.2 ft (5000 m)

Specifications may be subject to change without notice
