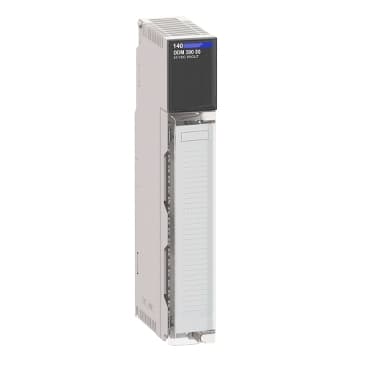

Product Model
140DDM69000C
Selling Points
- 1Handles up to 156.2 V DC with minimal current requirements.
- 2Includes 4 discrete inputs and 4 outputs, perfect for mixed I/O signal processing.
- 3Equipped with transient voltage suppression, resistor-limited input protection, and 5 A internal fuses.
- 4Provides 1780 Vrms isolation between input and output groups and 2500 Vrms between groups and the bus.
- 5Operates within a network frequency range of 47 to 63 Hz and includes multiple LEDs for monitoring purposes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Quantum automation platform | Product or Component Type | Mixed discrete I/O module |
Discrete I/O number | 8 | Discrete input number | 4 1 group of 8 |
Discrete input logic | Sink | Addressing requirement | 1 output word<br />1 input word |
Network frequency limits | 47…63 Hz | Discrete input voltage | 125 V DC |
input voltage limits | 156.2 V including ripple | Voltage state 0 guaranteed | 0...36 V |
Voltage state 1 guaranteed | 88...156.2 V | Current state 0 guaranteed | <= 1.2 mA |
Current state 1 guaranteed | >= 2 mA | Response time | 0.5 or 1.5 ms depending on the filter at state 0 to state 1<br />0.5 or 1.5 ms depending on the filter at state 1 to state 0 |
Discrete output number | 4 1 group of 4 | Discrete output type | Solid state, isolated |
Discrete output logic | Source or sink | Discrete output voltage | 24...125 V |
Output voltage limits | 19.2...156.2 V DC typical | Maximum load current | <= 16 A per module<br /><= 4 A per point |
Maximum voltage drop | <0.75 V 4 A | Absolute maximum output | 30 A during 500 ms per point |
Maximum load capacitance | 0.1 µF 150 V DC<br />0.6 µF 24 V DC | Maximum leakage current | 1.2 mA 150 V DC |
Protection Type | On input by resistor limited<br />On output by transient voltage suppression<br />Internal output protection by 5 A fuse per group | Associated fuse rating | 5 A |
Isolation between group of I/O channels | 1780 Vrms for 1 minute | Isolation between group and bus | 2500 Vrms for 1 minute |
Isolation between channels | 1780 Vrms for 1 minute | Fault indication | Overcurrent on output |
Power dissipation | 0.4 W + (1 x input point on) + (0.75 total output load current) | Local signalling | for bus communication is present (Active) 1 LED (green)<br /> for no voltage in output and input (F) 1 LED (red)<br /> for fault detected on the output point 2 LEDs (red)<br /> for output is turned on 4 LEDs (green)<br /> for fault detected on the input point 4 LEDs (red) |
marking | CE | Bus current requirement | 350 mA |
Net Weight | 0.7 lb(US) (0.3 kg) | Resistance to electrostatic discharge | 4 kV contact IEC 801-2<br />8 kV on air IEC 801-2 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3 | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Relative Humidity | 95 % without condensation |
Operating altitude | <= 16404.2 ft (5000 m) | Protective treatment | Conformal coating Humiseal 1A33 |
Standards | FM Class 1 Division 2<br />UL 508<br />CSA C22.2 No 142 | Product Certifications | cUL |
Specifications may be subject to change without notice
