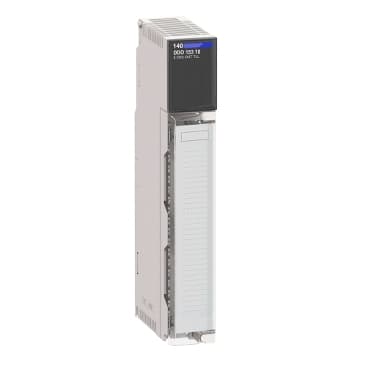

Product Model
140DDO88500C
Selling Points
- 1Control multiple devices with 12 discrete output channels, configurable for negative or positive logic.
- 2Operate between 24 to 125 VDC, accommodating various industrial voltage requirements.
- 3Equipped with internal output protection by a 4 A fuse and short-circuit protection for reliable operation.
- 4Low power dissipation and minimal voltage drop ensure efficient power consumption and reduced heat generation.
- 5Meets international safety and quality standards, ensuring compatibility in diverse industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Quantum automation platform | Product or Component Type | Dc discrete output module |
Discrete output number | 12 | Group of channels | 2 groups of 6 |
Discrete output logic | Negative logic (sink) | Addressing requirement | 1 input word<br />1 output word |
Discrete output voltage | 24...125 V DC | Output voltage limits | 19.2...156.2 V |
Maximum load current | <= 3 A 32…140 °F (0…60 °C) each group<br /><= 6 A 32…140 °F (0…60 °C) per module<br /><= 0.75 A 32…104 °F (0…40 °C) each point | Surge current | 4 A 1 ms |
Response Time | 1 ms at state 0 to state 1<br />1 ms at state 1 to state 0 | Short-circuit protection | With |
Output overvoltage protection | By varistor per group | Load inductance | No limit (protected by diode) |
Maximum tungsten load | 41 W 115 V<br />46 W 130 V<br />8 W 24 V | Switching frequency | <= 50 Hz |
Fault indication | Overcurrent | Isolation between channels and bus | 2500 Vrms DC for 1 minute |
Isolation between group | 1200 Vrms DC for 1 minute | Protection Type | Internal output protection by 4 A fuse |
Power dissipation | 1 W + (0.77 x all points on) | marking | CE |
Local signalling | for bus communication is present (Active) 1 LED (green)<br /> for external fault detected (F) 1 LED (red)<br /> for input status 16 LEDs (green) | Bus current requirement | 375 mA 6 outputs at state 1<br />650 mA 12 outputs at state 1 |
Module format | Standard | Net Weight | 0.99 lb(US) (0.45 kg) |
Protective treatment | Conformal coating Humiseal 1A33 | Product Certifications | GOST<br />C-tick<br />FM Class 1 Division 2<br />RMRS |
Standards | CSA C22.2 No 142<br />UL 508 | Resistance to electrostatic discharge | 4 kV contact IEC 801-2<br />8 kV on air IEC 801-2 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3 | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Relative Humidity | 95 % without condensation |
Operating altitude | <= 16404.2 ft (5000 m) |
Specifications may be subject to change without notice
