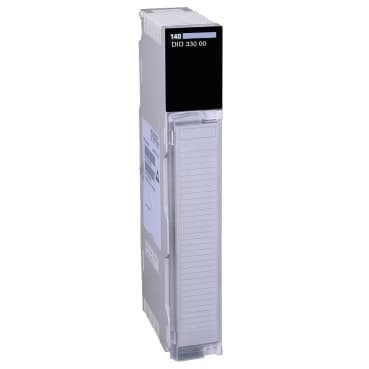

schneider 140DIO33000C

Selling Points

  • 1The 140DIO33000C is designed for hazardous environments, ensuring safe operation in zones 20, 21, or 22.
  • 2Provides reliable control of discrete output signals with a 24V open collector configuration.
  • 3Equipped with transient voltage suppression and an internal fuse for added protection.
  • 4Meets high isolation standards between channels and bus, ensuring electrical safety (2500 V DC for 1 minute, 1780 V AC).
  • 5Backed by a 2-year warranty from MRO Electric for peace of mind in your industrial automation setup.
Product Details
140DIO33000C
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon Quantum automation platform
Product or Component Type
Intrinsically safe discrete output module
Software designation
Concept V2.2 and above<br />ProWORX<br />Unity Pro
Product destination
In conjunction with products for zone 20, 21 or 22
Discrete output voltage
24 V
Discrete output type
Open collector
Maximum load current
360 mA per module<br />45 mA per point
off state leakage current
0.4 mA per point
Response time
1 ms resistive at state 0 to state 1<br />1 ms resistive at state 1 to state 0
Protection Type
Internal fuse<br />Transient voltage suppression
Hot swapping fallback
Not allowed per intrinsic safety standards
Power dissipation in W
5 W
Isolation between channels and bus
2500 V DC for 1 minute<br />1780 V 47...63 Hz AC
marking
II1 G/D-EEx ia IIC<br />CE
Bus current requirement
2.2 A
Module format
Standard
Net Weight
0.99 lb(US) (0.45 kg)
Protective treatment
Conformal coating Humiseal 1A33
Standards
Directive ATEX 94/9/EC<br />EN 50039<br />EN 50014<br />CSA C22.2 No 142<br />UL 508<br />EN 50020<br />EN 50284<br />EN 50281-1-1
Dust zone
Outside zone
Product Certifications
SIRA 02ATEX2345X<br />FM Class 1 Division 2<br />C-tick<br />GOST
Resistance to electrostatic discharge
4 kV contact IEC 801-2<br />8 kV on air IEC 801-2
Resistance to electromagnetic fields
9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Relative Humidity
95 % without condensation
Operating altitude
<= 16404.2 ft (5000 m)

Specifications may be subject to change without notice
