Product Model

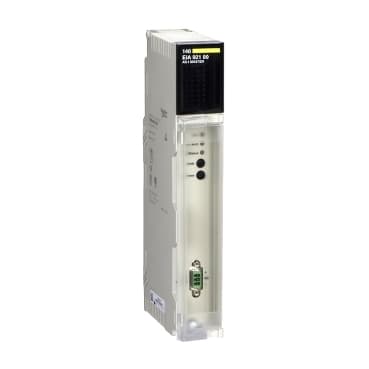

140EIA92100
Selling Points
- 1Facilitates communication and control between various system devices with advanced features.
- 2Delivers rapid cycle times of less than or equal to 5 ms for real-time control and monitoring.
- 3Supports up to 124 discrete inputs and outputs, with a maximum bus length of 100 m without a repeater.
- 4Operates on a rated supply voltage of 30 V DC, eliminating the need for additional power sources.
- 5Equipped with 32 LEDs for local signaling, enhancing usability and facilitating troubleshooting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Quantum automation platform | Product or Component Type | AS-Interface master module |
Range Compatibility | AS-Interface cabling system | AS-i version | V1 |
Actuator sensor interface profile [AS-i] | M2 | Addressing | Standard |
Maximum cycle time | 5 ms | Bus length | 0.0000000000…328.08 ft (0…100 m) without repeater |
Discrete input number | 124 | Discrete output number | 124 |
Number of server device(s) | 31 | Number of module per PLC | 2 per Quantum PLC distributed drop<br />4 per Quantum PLC local drop<br />4 per Quantum PLC remote drop |
Supply | Via AS-Interface line | [Us] rated supply voltage | 30 V DC |
AS-i cabling system cycle time | 156 x (n + 1) µs 31<br />156 x (n + 2) µs | Transmission Rate | 167 kbit/s |
Reverse polarity protection | Internal | Local signalling | for slave addresses and state of slave I/O bits 32 LEDs |
Electrical connection | 1 male connector SUB-D 3 pins AS-Interface link | current consumption | <= 100 mA |
Typical current consumption | 60 mA 30 V DC | marking | CE |
Net Weight | 0.99 lb(US) (0.45 kg) | IP Degree of Protection | IP20 |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Product Certifications | FM<br />CSA<br />GOST<br />C-tick<br />UL |
Specifications may be subject to change without notice
