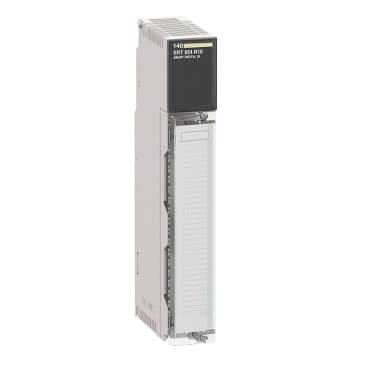

Product Model
140ERT85410
Selling Points
- 1Logs events with precise time and date stamps, capturing high-resolution data for process analysis and troubleshooting.
- 2Offers status monitoring on discrete inputs, ensuring real-time tracking of system operations.
- 3Ensures precise time synchronization using the DCF77 protocol, critical for coordinated industrial processes.
- 4Supports adjustable anti-bounce filtering and invertible input states, catering to diverse operational needs.
- 5Constructed with optocoupler insulation and compatible with shielded cables up to 600 meters, ensuring reliable performance in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Quantum automation platform | Product or Component Type | Multifunction input module |
Number of terminals | 40 | Function of module | Status logging counting 500 Hz<br />Status monitoring on discrete inputs<br />Time and date stamped event logging |
Time synchronisation protocol | DCF77 | Product compatibility | Concept<br />Unity Pro |
Group of channels | 2 groups of 16 inputs process input | Discrete input number | 1 24 V clock signal input<br />32 24...125 V process input |
Switching voltage | 125 V 1 mA process input<br />24 V 6 mA process input<br />48 V 2.5 mA process input<br />60 V 2.5 mA process input | Maximum power consumption in W | 7.5 W process input |
Insulation | By optocoupler clock signal input | Insulation between group of channels | By optocoupler |
Anti bounce filtering | Configurable from 0 to 255 ms | Input state | Inversion configurable |
Acquisition time | 1 ms clock signal input | Input current | 5 mA clock signal input |
Electrical connection | Cable - shielded cable <1968.5 ft (600 m) process input<br />Cable - unshielded cable <1312.3 ft (400 m) process input | Connections - Terminals | Screw terminal block |
Local signalling | for communication on the bus (Active) 1 LED (green)<br /> for self test OK, module ready (R) 1 LED (green)<br /> for fault (F) 1 LED (red)<br /> for status of inputs (1 to 32) 32 LEDs | Current consumption | 0.07 mA 24 V DC 140XCP90000 module<br />3 mA 24...125 V DC external power supply per group of channel<br />300 mA 5 V DC bus |
Module format | Standard | Net Weight | 0.99 lb(US) (0.45 kg) |
Resistance to electrostatic discharge | 4 kV contact IEC 801-2<br />8 kV on air IEC 801-2 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80...2000 MHz IEC 801-3 |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Relative Humidity | 95 % without condensation | Operating altitude | <= 16404.2 ft (5000 m) |
Protective treatment | TC | Standards | HazLoc<br />UL 508 |
Product Certifications | CSA Class 1 Division 2<br />UL<br />LR<br />C-tick<br />GOST<br />Merchant Navy |
