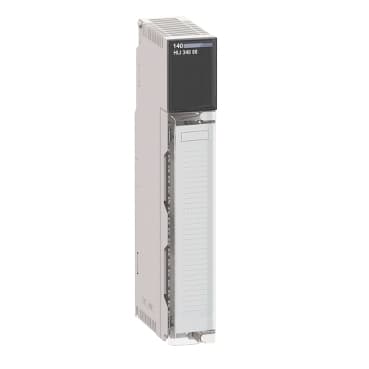

Product Model
140HLI34000C
Selling Points
- 1Equipped with 16 discrete inputs featuring fast isolated functionality for reliable signal detection in high-speed industrial environments.
- 2Provides robust isolation between channels and the bus, ensuring enhanced electrical safety with isolation ratings of 500 V AC for 60 seconds between channels and 1780 V AC for 60 seconds between channels and the bus.
- 3Offers low bus current requirement of 400 mA and efficient power dissipation, minimizing energy consumption and optimizing overall system performance.
- 4Delivers rapid input processing with response times as swift as 130 µs for Off-On transitions and 30 µs for On-Off transitions, enabling real-time control and monitoring.
- 5Compliant with European safety standards (CE marking) and backed by a 2-year warranty from MRO Electric, ensuring reliability and longevity in industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Quantum automation platform | Product or Component Type | Latch/interrupt module |
Number of inputs | 16 | Discrete input type | Fast isolated |
Absolute maximum input | 30 V DC | Voltage state 0 guaranteed | -3...5 V |
Voltage state 1 guaranteed | 15...30 V | Current state 0 guaranteed | 2...8 mA |
Current state 1 guaranteed | <= 0.5 mA | Response time | 130 µs Off-On<br />30 µs On-Off |
Reverse polarity protection | Internal in 30 V | Isolation between channels | 500 V 60 s AC |
Isolation between channels and bus | 1780 V 60 s AC | Bus current requirement | 400 mA |
Power dissipation | 2.0 W + (0.3 x number of points on) | Mounting Support | Backplane for local architecture |
marking | CE | Module format | Standard |
Resistance to electrostatic discharge | 4 kV contact IEC 801-2<br />8 kV on air IEC 801-2 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3 |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Relative Humidity | 95 % without condensation | Operating altitude | <= 16404.2 ft (5000 m) |
Protective treatment | Conformal coating Humiseal 1A33 | Standards | UL 508 |
Product Certifications | CSA Class 1 Division 2<br />C-tick<br />DNV<br />UL<br />GOST<br />FM Class 1 Division 2 |
Specifications may be subject to change without notice
