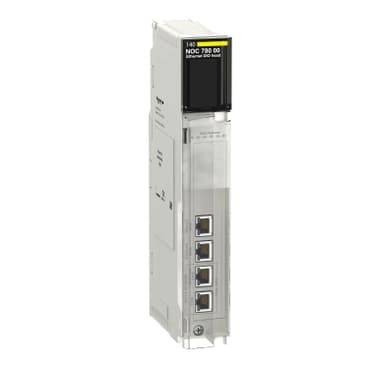

schneider 140NOC78000C

Selling Points

  • 1Seamless Communication: Supports Modbus TCP and Ethernet/IP protocols for efficient data exchange in industrial networks.
  • 2High-Speed Data Transfer: Operates at 10/100 Mbit/s transmission rate, ensuring fast and reliable data transfer.
  • 3Robust Redundancy: Features hot standby redundant architecture to ensure continuous system functionality even in a failure.
  • 4Advanced Diagnostics: Includes embedded web server, SNMP agent, and local signaling LEDs for easy system monitoring and troubleshooting.
  • 5Versatile Connectivity: Compatible with daisy chain loops and redundant ring topologies, making it suitable for complex industrial setups.
Product Details
140NOC78000C
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon Quantum automation platform
Product or Component Type
Ethernet I/O head module
Product Compatibility
140CPU6xxxx
communication port protocol
EtherNet/IP<br />Modbus TCP
Exchange mode
Full duplex
Maximum number of connections
128
Transmission Rate
10/100 Mbit/s
Redundancy
Yes hot standby redundant architecture
Topology
Daisy chain loop<br />Redundant ring
Web server
Embedded
Communication Service
NTP time synchronization<br />CIP Explicit messaging (client messaging)<br />SNMP agent<br />Embedded 4-port switch<br />Quality of Service (QoS)<br />FDR server<br />CIP implicit messaging (I/O communication)<br />Device Type Manager (DTM)<br />DHCP/BootP server
Ethernet service
Rapid Scanning Tree Protocol (RSTP)
Transmission support medium
Twisted pair
Port Ethernet
RJ45 10BASE-T/100BASE-TX
marking
CE
Supply
Via the power supply of the rack
Local signalling
for communication on the bus (Active) 1 LED (green)<br /> for configuration status (Ready) 1 LED (green)<br /> for module status (Mod Status) 1 LED (green/red)<br /> for network communication status (Net Status) 1 LED (green/red)<br /> for device network status (Net Status 1) 1 LED (green/red)<br /> for extended DIO network status (Net Status 2) 1 LED (green/red)
Module format
Standard
Net Weight
0.761 lb(US) (0.345 kg)
Standards
EN 61131-2<br />IEC 61000-4-16<br />UL 508<br />CSA C22.2 No 142<br />EN 61131-1<br />EN 55011<br />FM Class 1 Division 2
Product Certifications
hazardous location class 1, division 2<br />Merchant Navy<br />GOST<br />C-tick<br />LR
IP Degree of Protection
IP20
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Relative humidity
10…95 % 140 °F (60 °C) without condensation

Specifications may be subject to change without notice
