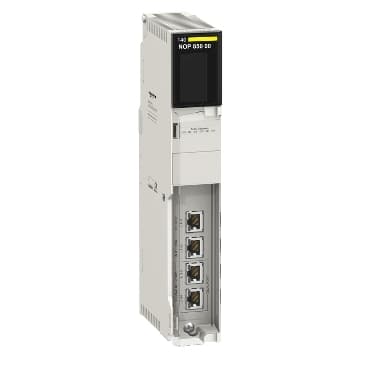

schneider 140NOP85000

Selling Points

  • 1High Reliability: Built with advanced anti-interference technology and hardware fault self-detection for timely alarm information.
  • 2Easy Integration: Plug-and-play design allows for seamless integration without stopping the system, reducing maintenance workload.
  • 3Advanced Communication: Supports IEC61850 protocol for efficient and reliable data transfer in industrial automation.
  • 4Versatile Applications: Suitable for various industries such as CNC machinery, metallurgy, petroleum, and natural gas.
  • 5Compact Design: Compact size (30*20*20cm) with a weight of 2kg, making it easy to install and manage in any setting.
Product Details
140NOP85000
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon Quantum automation platform
Product or Component Type
Ethernet communication module
Product Compatibility
140CPU6xxxx
communication port protocol
Modbus TCP<br />IEC 61850
Exchange mode
Half duplex, full duplex, autonegotiation
Maximum number of connections
32
Transmission Rate
10/100/1000 Mbps
Redundancy
Yes hot standby redundant architecture
Topology
Redundant ring<br />Daisy chain loop
Communication Service
IEC 61850 goose<br />NTP time synchronization<br />SNMP agent<br />IEC 61850 MMS messaging client<br />Embedded router<br />Modbus TCP messaging<br />Quality of Service (QoS)<br />Embedded 4-port switch<br />IEC 61850 MMS messaging server
Ethernet service
Rapid Scanning Tree Protocol (RSTP)
Transmission support medium
Twisted pair
Port Ethernet
RJ45 10BASE-T/100BASE-TX/1000BASE-T
marking
CE
Supply
Via the power supply of the rack
Local signalling
for communication on the bus (Active) 1 LED (green)<br /> for configuration status (Ready) 1 LED (green)<br /> for module status (Mod Status) 1 LED (green/red)<br /> for network communication status (Net Status) 1 LED (green/red)
Module format
Standard
Net Weight
0.761 lb(US) (0.345 kg)
Standards
EN 61131-2<br />IEC 61000-4-16<br />EN 61131-1<br />EN 55011<br />HazLoc<br />UL 61010-1<br />CSA C22.2 No 142
Product Certifications
RCM<br />CSA<br />Merchant Navy<br />KEMA<br />UL<br />KETOP<br />CE<br />hazardous location class 1, division 2
IP Degree of Protection
IP20
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Relative humidity
10…95 % 140 °F (60 °C) without condensation

Specifications may be subject to change without notice
