Product Model

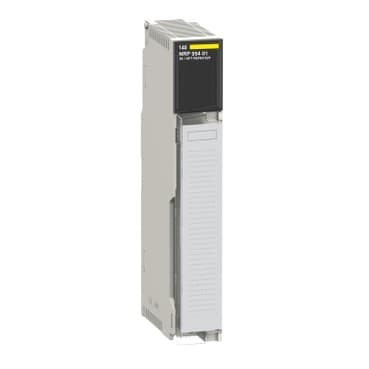

140NRP95401C
Selling Points
- 1High-Performance Single-Mode Fiber Optic Repeater: Enhance your industrial automation with the 140NRP95401C, designed for reliable and high-speed data transmission.
- 2Non-Interfering Operation: Ensure seamless communication with the non-interfering design, perfect for complex industrial networks.
- 3Compact and Durable Construction: Built with polycarbonate material, this repeater is compact (40.34 mm x 250 mm x 103.85 mm) and durable for harsh environments.
- 4Advanced LED Indicators: Monitor module status with a green LED (RDY) and internal fault with a red LED (ERR), ensuring easy troubleshooting.
- 5Compliant with Industrial Standards: Meets FM Class 1 Division 2, CSA C22.2 No 142, and UL 508 standards for safe operation in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Quantum automation platform | Product or Component Type | Fibre optic repeater |
Optic fiber type | Single mode | Bus current requirement | 750 mA |
Power dissipation in W | 5 W | Inrush current | 1.8 A 5 V DC |
Number of Port | 2 fiber optic LC<br />1 coaxial connector | Local signalling | 1 LED green RDY module status<br />1 LED red ERR internal fault, module failure<br />1 LED green coaxial communication status<br />2 LEDs green optical communication status<br />1 LED red FAULT error<br />1 LED red activity detected |
Wavelength | 0.000051181 in (1300 nm) | Optic distance between 2 transceivers | 52493.4 ft (16000 m) 9/125 µm)0.45 dBm |
Attenuation | -15…-8 dB 9/125 µm) | Rise/fall time | 20 ns |
Receiver Sensitivity | - 25 dBm | Dynamic range | 20 dB |
Detected silence | -45 dBm | marking | CE |
Material | PC (polycarbonate) | AWG Gauge | AWG 14...AWG 1 |
Width | 1.59 in (40.34 mm) | Height | 9.8 in (250 mm) |
Depth | 4.09 in (103.85 mm) | Net Weight | 1.221 lb(US) (0.554 kg) |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Relative humidity | 0…95 % | Operating altitude | 0...6561.68 ft (0...2000 m) |
Standards | FM Class 1 Division 2<br />CSA C22.2 No 142<br />UL 508 | Product Certifications | Merchant Navy |
Specifications may be subject to change without notice
