Product Model

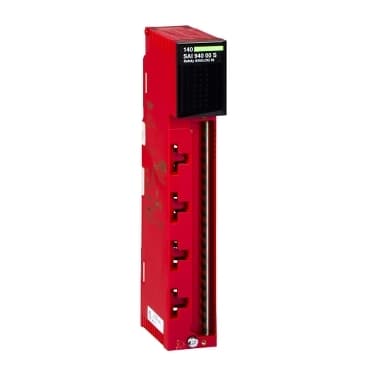

140SAI94000S
Selling Points
- 1High-Resolution Input: 16-bit resolution for precise data capture.
- 2Multi-Input Capability: Supports up to 8 analogue inputs.
- 3Robust Design: Built for reliability in industrial environments.
- 4Compliance: Meets EU and China RoHS declarations.
- 5Versatile Integration: Compatible with various Modicon Quantum systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Quantum automation platform | Product or Component Type | Analogue safety input module |
Type of filter | Single pole low pass - 3 dB at 15 Hz | Analogue input number | 8 |
Addressing requirement | 13 input words | Analogue input resolution | 16 bits |
Linear measuring range | 0...25 mA | Absolute maximum input | 35 mA |
Input impedance | 287 Ohm | Absolute accuracy error | +/- 0.3 %<br />+/- 0.35 % of full scale maximum |
Linearity error | +/- 2 µA max 32…140 °F (0…60 °C) | Common mode rejection | - 65 dB 60 Hz<br />- 70 dB 50 Hz |
Isolation between channels and bus | 1500 V AC 60 s | Isolation between channels | 500 V AC 60 s |
Update time | 15 ms | Fault type | Overtacking scale |
marking | CE | Local signalling | for bus communication is present (Active) 1 LED (green)<br /> for external fault detected (F) 1 LED (red)<br /> for input status 8 LEDs (green)<br /> for system failure, diagnostic of internal channel fault 8 LEDs (red) |
Bus current requirement | 400 mA | Power dissipation in W | 3.5 W |
Product Certifications | UL<br />C-tick<br />CSA HazLoc<br />TÜV Rheinland (SIL2)<br />CSA |
Specifications may be subject to change without notice
