Product Model

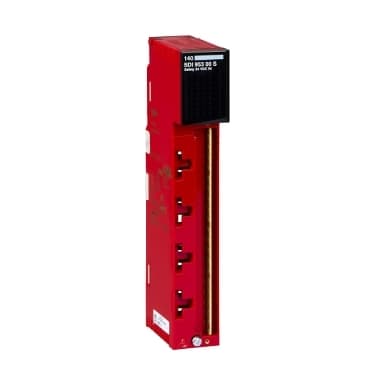

140SDI95300S
Selling Points
- 13675 Ohms for stable signal processing.
- 2≤25 ms from state 0 to state 1 and vice versa.
- 3Compliant with CSA, UL, and TÜV Rheinland (SIL2) standards.
- 4Internal channel fault diagnostics and broken wire detection.
- 5Green Premium product with RoHS compliance and recyclable design.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Quantum automation platform | Product or Component Type | Safety dc discrete input module |
Discrete input number | 16 | Group of channels | 1 |
Logic input | Positive (sink) | Discrete input voltage | 24 V DC |
Voltage state 1 guaranteed | 11...30 V DC | Voltage state 0 guaranteed | -3...5 V DC |
Current state 1 guaranteed | >= 3 mA | Current state 0 guaranteed | <= 1.5 mA |
Sensor power supply | 19.2…30 V | Addressing requirement | 7 input words |
input impedance | 3675 Ohm | Absolute maximum input | 30 V |
Response Time | <= 25 ms from state 0 to state 1<br /><= 25 ms from state 1 to state 0 | Protection Type | By internal rectifier |
Associated fuse rating | 1 A, fast blow | Power dissipation | 2.75 W + (0.25 x number of points on) |
Isolation between group and bus | 1500 Vrms for 1 minute | Checks | Diagnostic of internal channel fault<br />System failure<br />Broken wire detection |
Local signalling | for bus communication is present (Active) 1 LED (green)<br /> for external fault detected (F) 1 LED (red)<br /> for input status 16 LEDs (green)<br /> for system failure, diagnostic of internal channel fault 16 LEDs (red) | marking | CE |
Bus current requirement | 550 mA | Product Certifications | CSA<br />UL<br />TÜV Rheinland (SIL2)<br />CSA HazLoc |
Specifications may be subject to change without notice
